Wichard  |  SKU: WIC91433  |  Manuf. Code: 91433

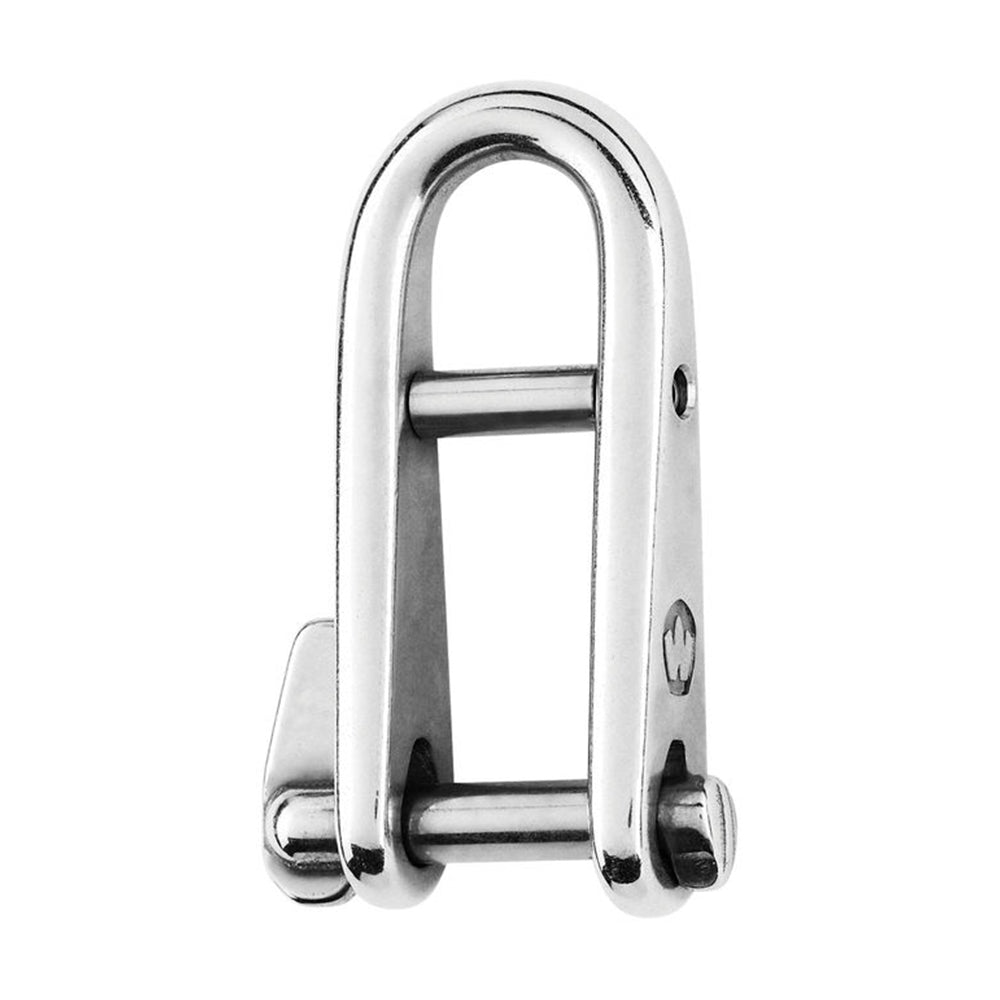

Wichard HR Key Pin Shackle - w/ Bar - Pin Dia: 1/4 in (6.0 mm)

$46.00 USD $61.33

Description

Forged D shackle in HR stainless steel grade (17,4 PH). Outstanding working and breaking load. A HR shackle can be up to 60% more resistant than a shackle in 316L stainless stee. WLL: only for industrial applications. CE marking. Applications requesting high loads. Perfect product for halyards or applications requiring to open /close the shackle often. Do not use for moorring applications.

Our Part # WIC91433 | Wichard Part # 91433

Technical Information


DescriptionImperialMetric
Material316L stainless steel grade316L stainless steel grade
Working load1322.77 lb.600.00 kg.
Breaking Load4850.17 lb.2200.00 kg.
Weight0.11 lb.53.00 g.
A1 3/4 in.45.00 mm.
B5/8 in.16.00 mm.
C1/4 in.6.00 mm.
D1/2 in.13.00 mm.
E3/16 in.4.00 mm.
F2 3/8 in.60.00 mm.
G1 7/16 in.37.00 mm.
L9/16 in.15.00 mm.
