15% off

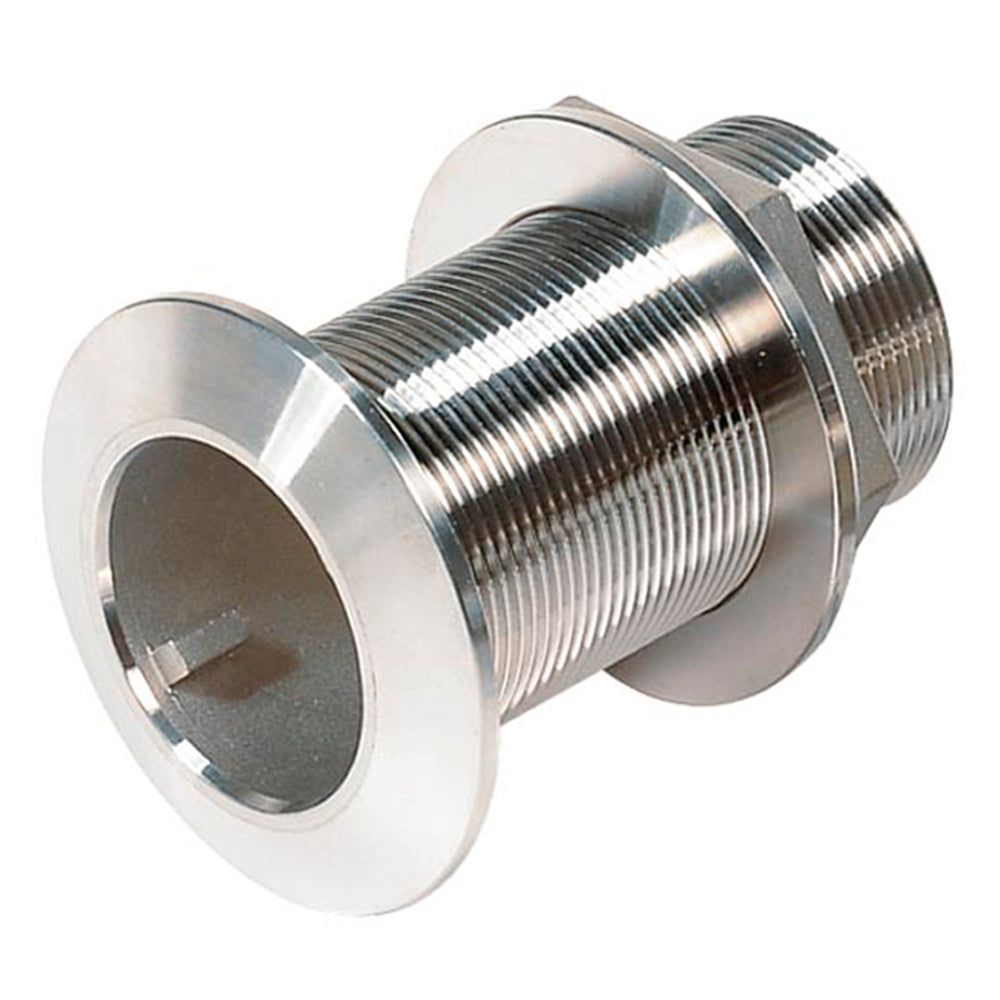

Vetus 1" Thru-Hull Fitting, Chamfered Flange (Stainless Steel) - NPTM
$37.00 USD
$43.53
Unit price
/
Unavailable
Vetus 1" Thru-Hull Fitting, Chamfered Flange (Stainless Steel) - NPTM is backordered and will ship as soon as it is back in stock.
Description
Description
Stainless steel skin fitting, G1.
Our Part # VTSTHRU1S | Vetus Part # THRU1S
Technical Information
Technical Information

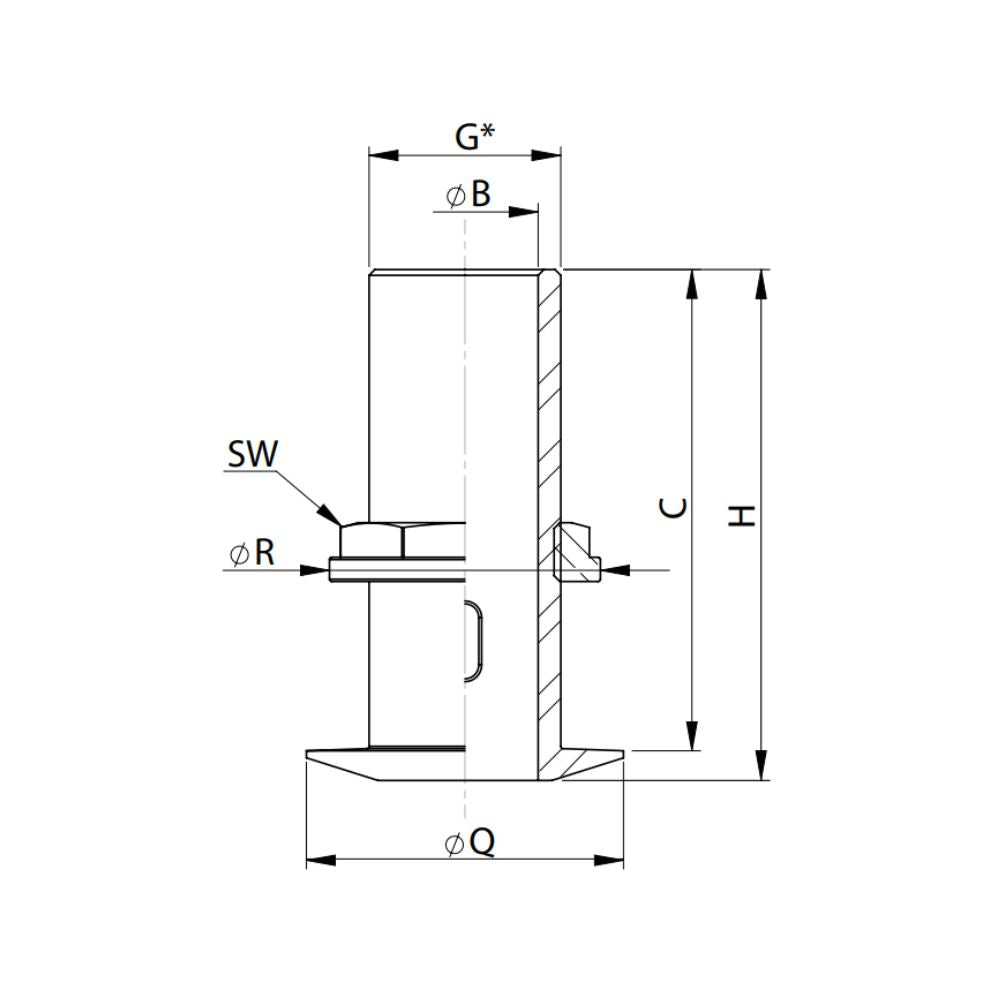

Description | Imperial | Metric |
---|---|---|
Thread (G) | 1.00 in. | 25.00 mm. |
ØB | 1.00 in. | 26.00 mm. |
H | 3 1/9 in. | 79.00 mm. |
C | 2 4/5 in. | 71.00 mm. |
ØQ | 2 1/8 in. | 54.00 mm. |
ØR | 2 1/8 in. | 54.00 mm. |
SW | 1 2/3 in. | 42.00 mm. |
Weight | 0.77 lb. | 0.35 kg. |
