15% off

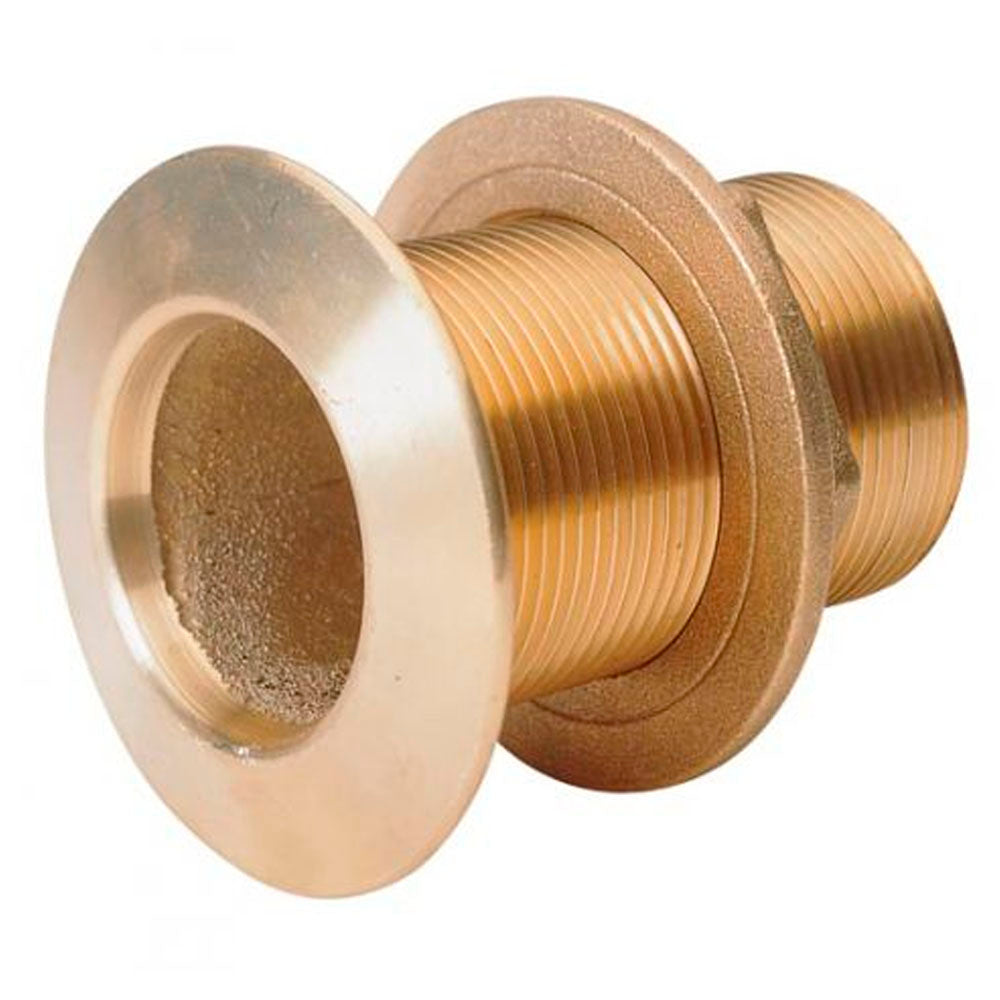

Vetus 1" Skin Fitting (Brass) - G1 for Hose
$33.00 USD
$38.82
Unit price
/
Unavailable
Vetus 1" Skin Fitting (Brass) - G1 for Hose is backordered and will ship as soon as it is back in stock.
Description
Description
High quality spun brass skin fitting with backing nut.
Our Part # VTSDOORB1 | Vetus Part # DOORB1

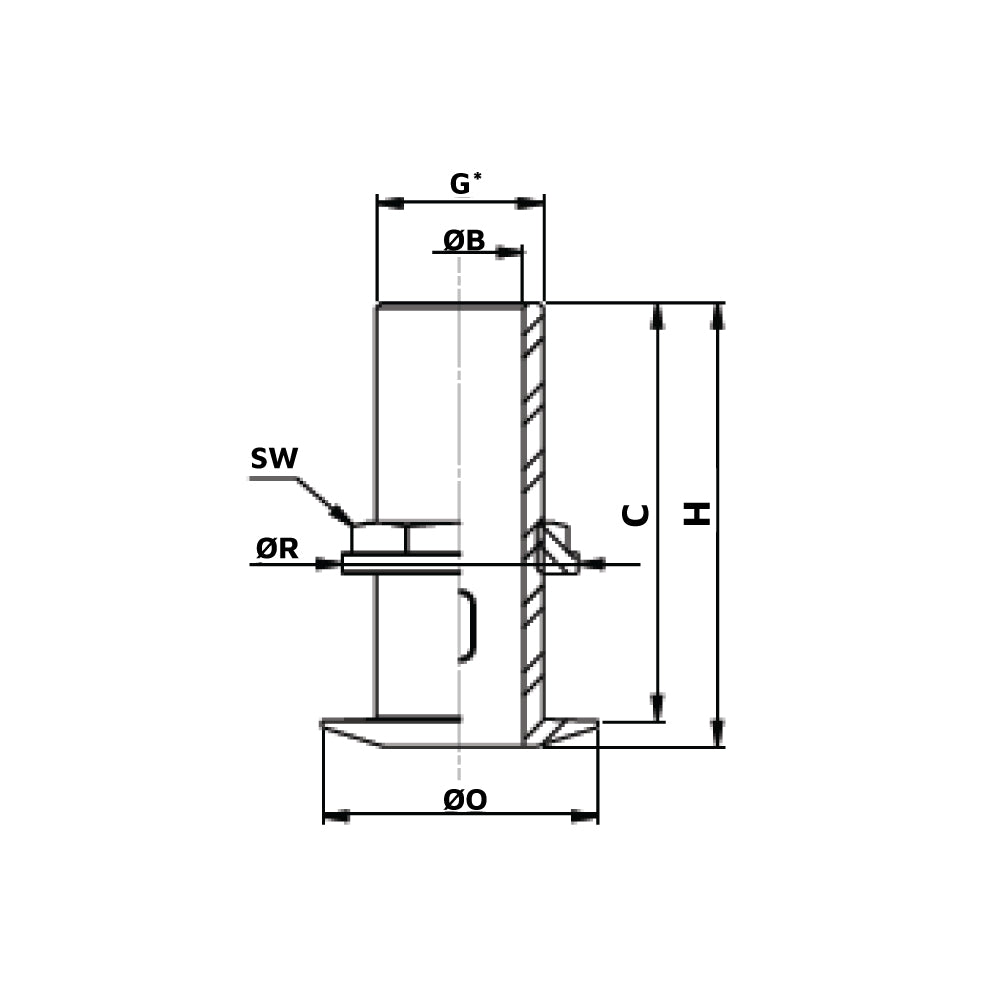

Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Thread (G) | 1.00 in. | 25.00 mm. |
ØB | 1.00 in. | 25.00 mm. |
H | 3.00 in. | 77.00 mm. |
C | 2 3/4 in. | 70.00 mm. |
ØQ | 2 1/5 in. | 56.00 mm. |
ØR | 2 1/5 in. | 56.00 mm. |
SW | 1 4/7 in. | 40.00 mm. |
Weight | 0.77 lb. | 0.35 kg. |
