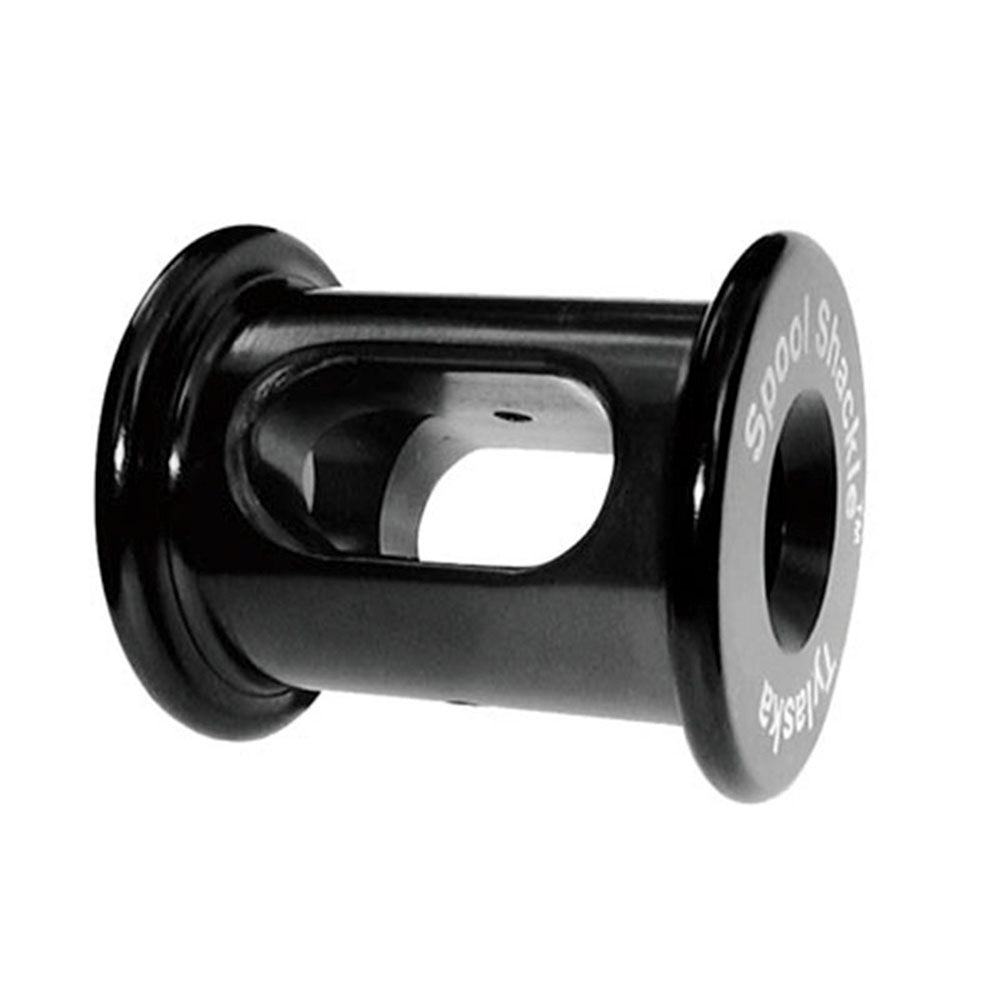

Tylaska Spool Shackle - S20
Tylaska Spool Shackle - S20 is backordered and will ship as soon as it is back in stock.
Description
Description
The S20 Spool Shackle #TY2420 is a game-changer for sailors, providing an innovative alternative to traditional knots. Designed to stay easy to handle even under load, it ensures quick fastening and unfastening, making your sailing experience smoother. Its clever design allows the line to bear strength, while the shackle redirects force efficiently.
Features & Benefits
- High-strength aluminum construction for durability
- P4 version made of high-impact polycarbonate
- Exceptional strength-to-weight ratio
- Compatible with both conventional and hi-tech lines
- Easy to remove and transfer between lines
- Optional "O" ring for additional security
The Tylaska S20 Spool Shackle is crafted from premium materials like high-strength aluminum and high-impact polycarbonate, ensuring robust performance. It is compatible with various lines, requiring only a looped end, whether it's pre-spliced or simply knotted. The shackle is engineered for both conventional and hi-tech sailing lines, and features a retaining pin and an optional "O" ring for added stability.
Technical Information
Technical Information

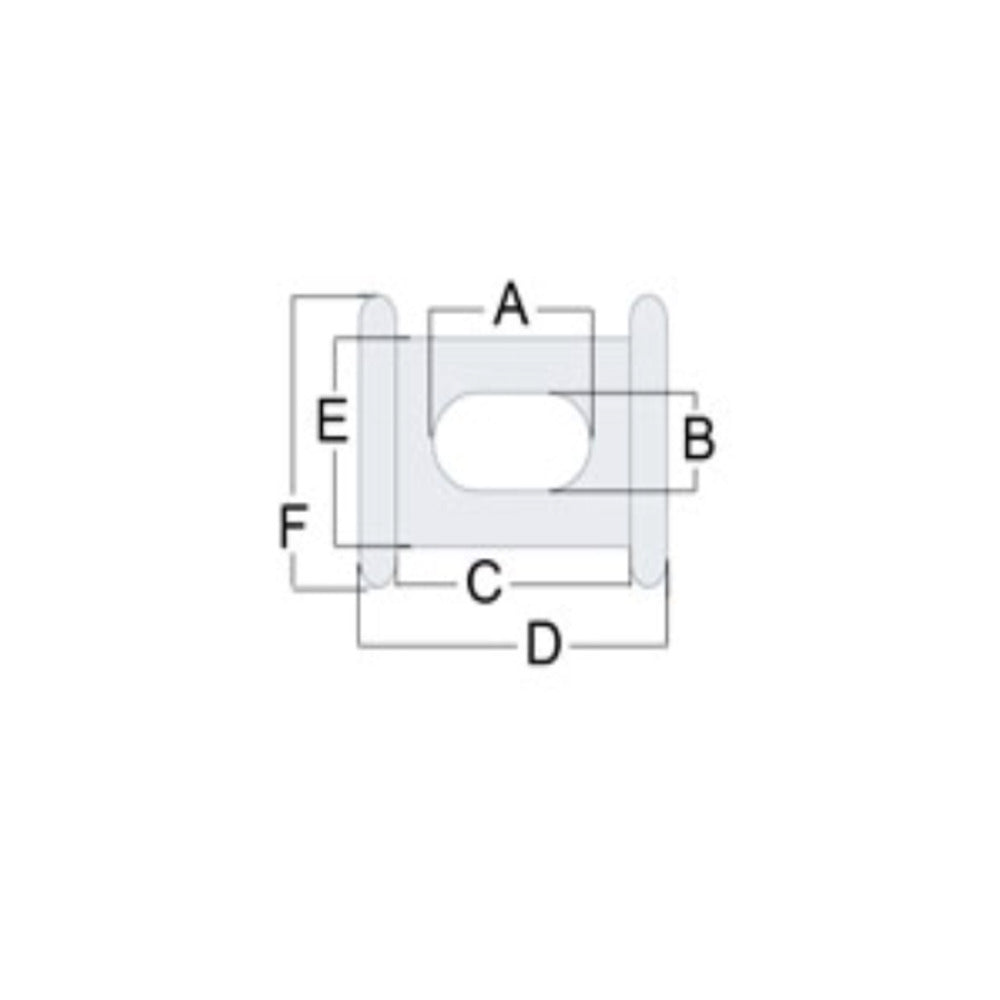

Description | Imperial | Metric |
---|---|---|
A | 1 3/16 in. | 29.50 mm. |
B | 9/16 in. | 14.20 mm. |
C | 1 11/16 in. | 42.70 mm. |
D | 2.00 in. | 50.50 mm. |
E | 1 5/16 in. | 33.80 mm. |
F | 1 11/16 in. | 43.40 mm. |
Line Size | 3/8 - 7/16 in. | 10.00 - 11.00 mm. |
Weight | 3.00 oz. | 85.00 g. |
Working Load Limit | 10000.00 lb. | 4540.00 kg. |
Breaking Strength | 20000.00 lb. | 9070.00 kg. |
