Tylaska  |  SKU: TYL-TY2404  |  Manuf. Code: TY2404

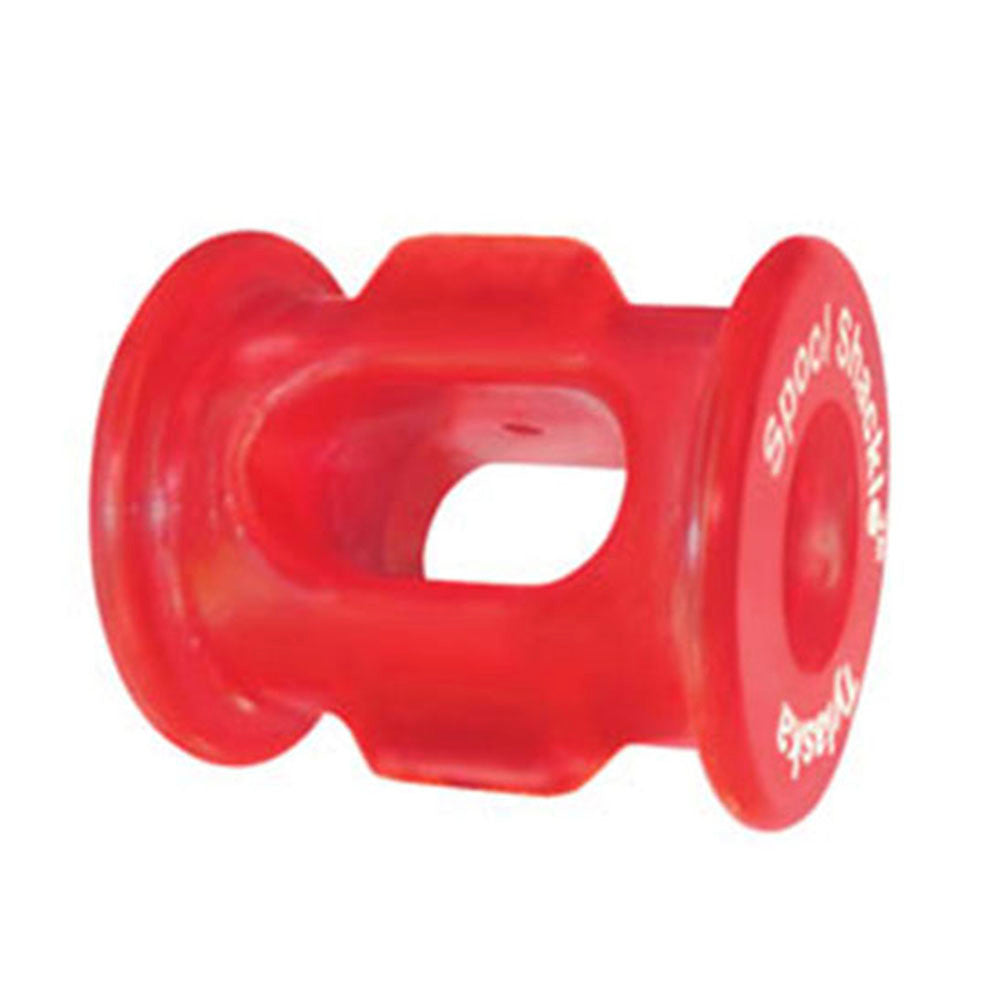

Tylaska Polycarbonate Spool Shackle - P4

$15.91 USD $21.21

Description

The S-Series Tylaska Spool Shackle is machined from high-strength aluminum. The Spool Shackles have an exceptional strength-to-weight ratio. The key is that the line itself supplies the strength while the shackle simply redirects the force. The ease of unfastening after loading is equally amazing. Based upon the concept of "breaking the back" of a bowline knot, the line can be rolled back and taken off even after it becomes "stiff as a wire" from tension.

The Tylaska Spool Shackle™ works with both conventional and hi-tech lines. All that is needed is a looped end. This can be a pre-spliced loop, yet-to-be spliced loop, or simply an overhand knot loop. A retaining pin allows for the shackle to be removed or transferred to other lines. An optional "O" ring slides over the line to provide a secondary "lock" against loosening during the most severe flogging situations.

Our Part # TYL-TY2404 | Tylaska Part # TY2404

Technical Information

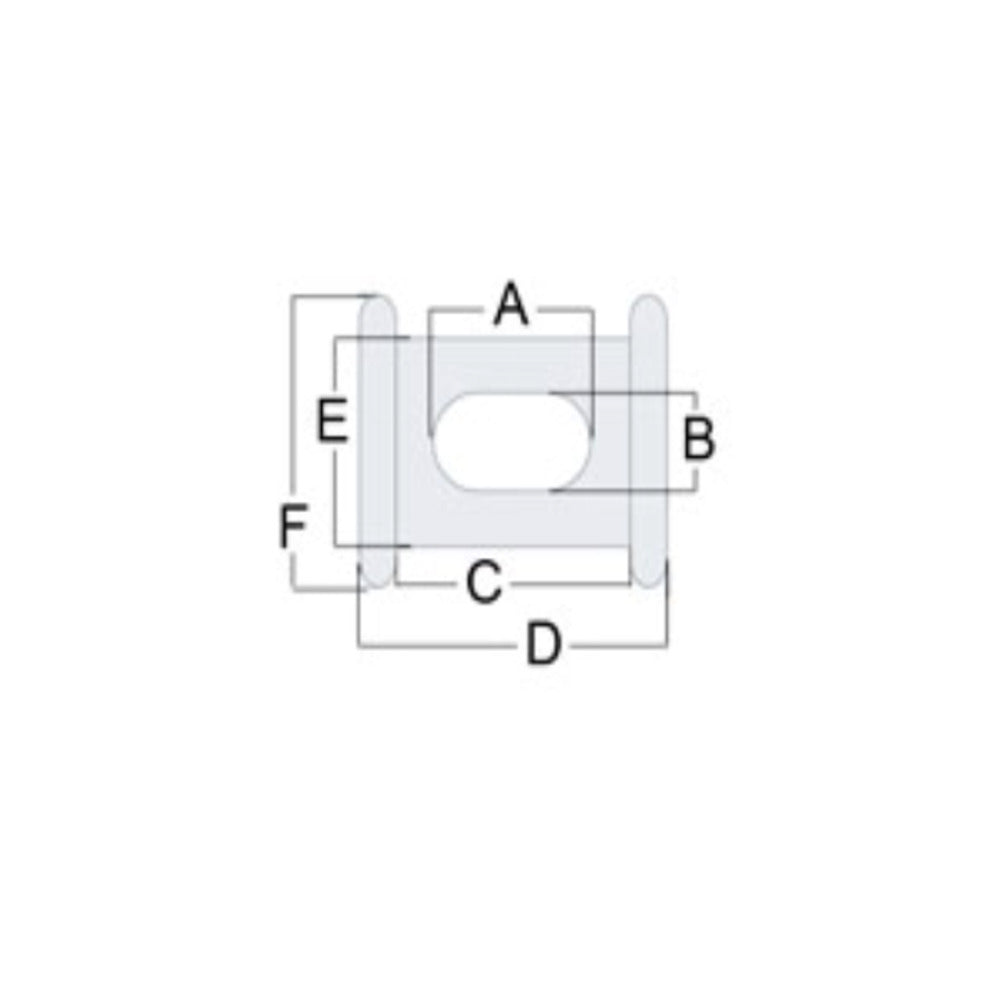

DescriptionImperialMetric
Slot Length (A)0.91 in.23.10 mm.
Slot Width (B)0.44 in.11.10 mm.
Inside Length (C)1.31 in.33.30 mm.
Overall Length (D)1.56 in.39.70 mm.
Diameter (E)1.03 in.26.20 mm.
Flange Diameter (F)1.32 in.33.70 mm.
Line Size5/16 - 3/8 in.8.00 - 10.00 mm.
Weight0.80 oz.22.70 g.
Working Load2200.00 lb.1000.00 kg.
Breaking Strength4400.00 lb.2000.00 kg.
