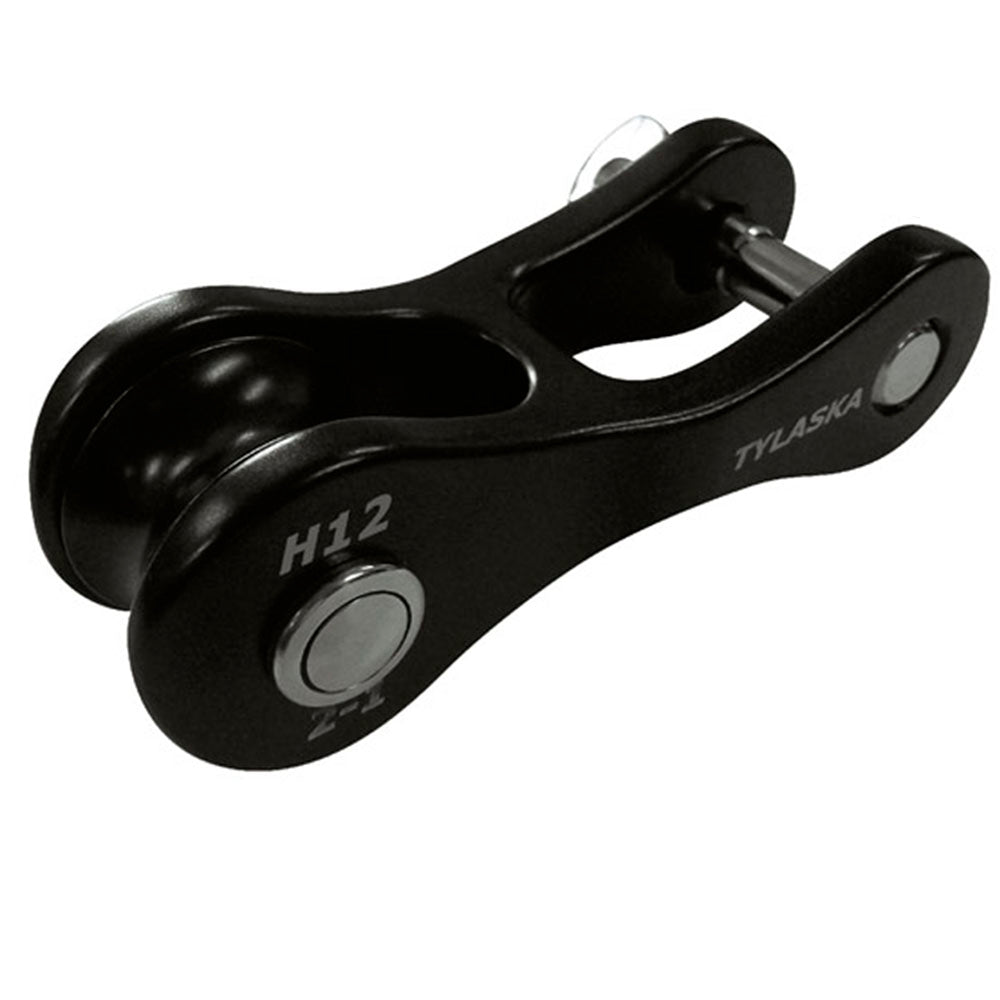

Tylaska Split Halyard Shackle - H12 - 2:1 - w/ Pulley
Tylaska Split Halyard Shackle - H12 - 2:1 - w/ Pulley is backordered and will ship as soon as it is back in stock.
Description
Description
The Tylaska H12 2:1 Sp Split H12 With Pulley #TY1512-S is a robust halyard shackle designed for sailors who demand reliability and durability. Its standout feature is a captive 17-4PH stainless pin that ensures smooth operation, while the metal machined line thimble prevents wear and melting typically seen with plastic alternatives. It's perfect for achieving a 2:1 purchase setup, and lines can be permanently spliced for a fixed halyard.
Features & Benefits
- Highest strength-to-weight ratio in the market
- Captive 17-4PH stainless pin for reliable operation
- All-metal machined line thimble resists wear and melting
- Allows for a 2:1 purchase system
- Capability for permanent line splicing for fixed halyard use
Constructed with 17-4PH stainless steel, this halyard shackle offers top-tier durability and strength. The precise machining of the line thimble ensures longevity and compatibility with various sailing setups, making it a versatile choice for sailors seeking quality gear. Ideal for use with fixed halyard systems, the Tylaska H12 halyard shackle stands as a reliable companion in demanding sailing conditions.
Technical Information
Technical Information

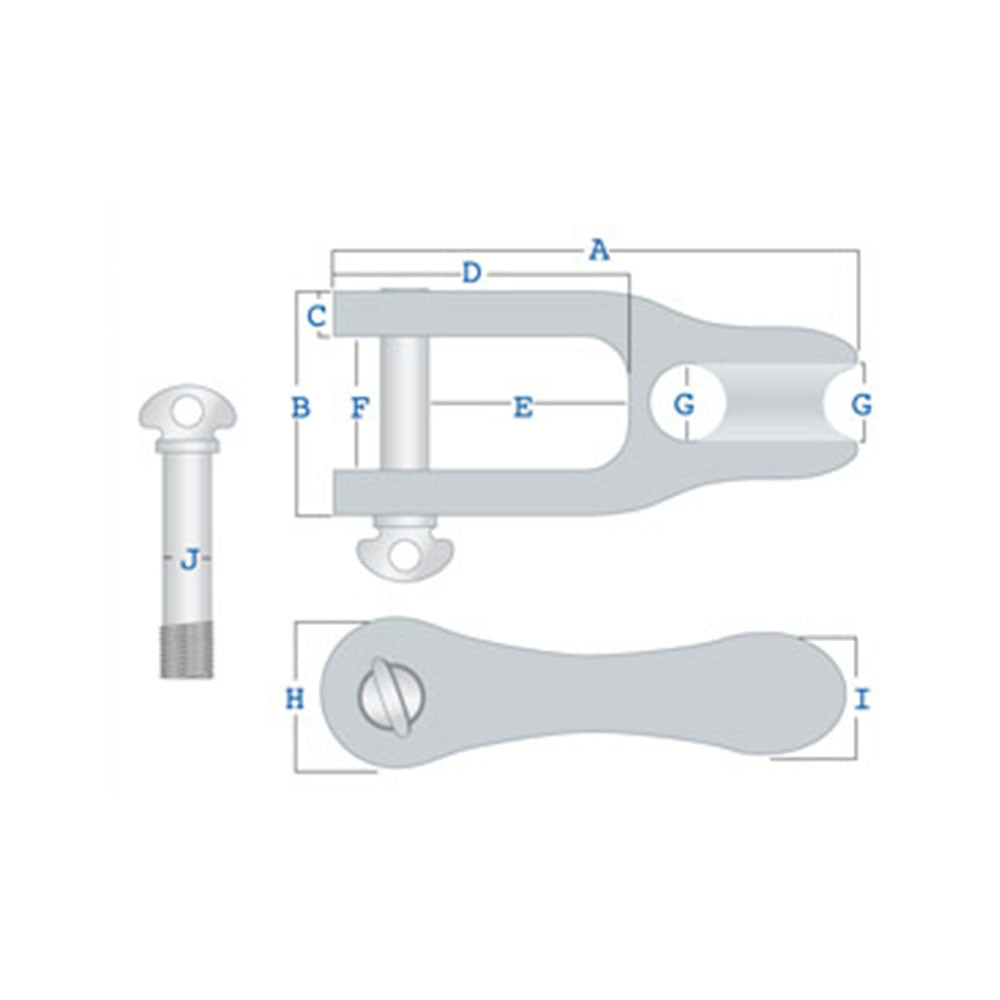

Description | Imperial | Metric |
---|---|---|
A | 4 1/16 in. | 103.60 mm. |
B | 1 1/2 in. | 38.10 mm. |
C | 1/4 in. | 7.90 mm. |
D | 2.00 in. | 50.80 mm. |
E | 1 1/4 in. | 31.70 mm. |
F | 7/8 in. | 22.40 mm. |
G | 11/16 in. | 16.80 mm. |
H | 1 1/8 in. | 28.40 mm. |
I | 1 7/16 in. | 36.50 mm. |
J | 3/8 in. | 9.70 mm. |
Line Size | 7/16 - 5/8 in. | 11.00 - 16.00 mm. |
Working Load Limit | 6000.00 lb. | 2720.00 kg. |
Breaking Strength | 12000.00 lb. | 5440.00 kg. |
Weight | 6.30 oz. | 180.00 g. |
