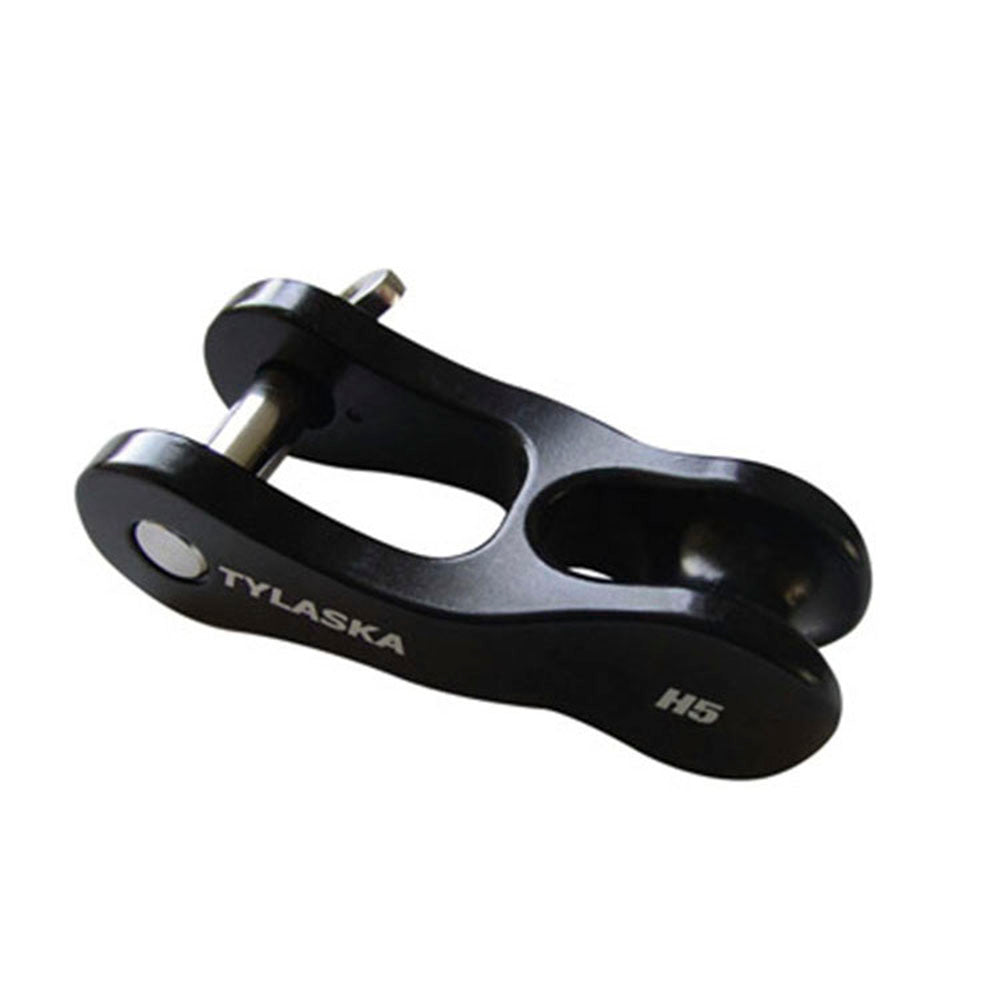

Tylaska Halyard Shackle - H5 - Aluminum

SKU: TYL-TY1405  |  Manuf. Code: TY1405
List Price:  137.00 USD
$117.10 USD

Description

Tylaska's halyard shackles have the highest strength-to-weight ratio of any existing halyard shackle on the market. A captive 17-4PH stainless pin makes for trouble-free operation. The all-metal machined line thimble allows for use as a 2-1 purchase without the wear or melting that occurs with plastic molded thimbles. Lines can also be permanently spliced for a fixed halyard.

Our Part # TYL-TY1405 | Tylaska Part # TY1405

Technical Information

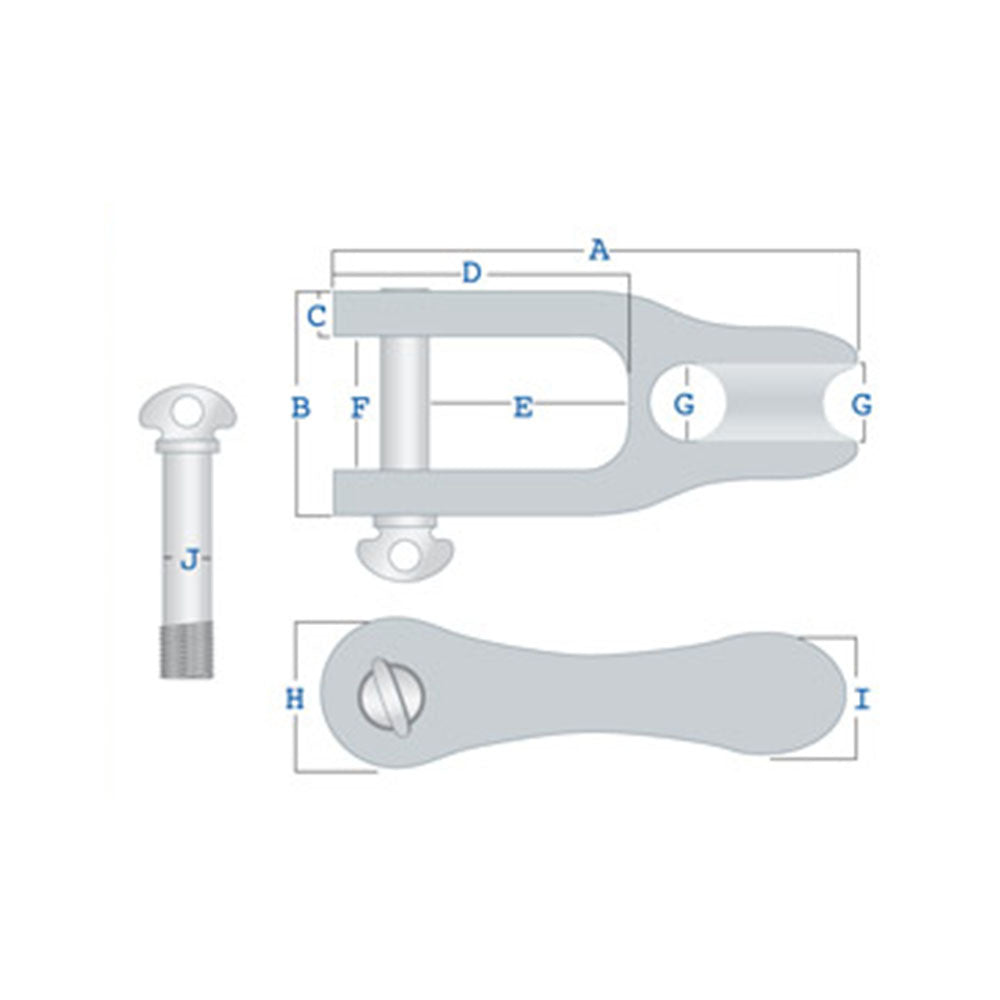

DescriptionImperialMetric
A2 7/8 in.73.30 mm.
B1 1/16 in.27.30 mm.
C1/4 in.5.60 mm.
D1 7/16 in.36.50 mm.
E7/8 in.22.00 mm.
F5/8 in.16.10 mm.
G1/2 in.12.60 mm.
H7/8 in.22.30 mm.
I15/16 in.24.10 mm.
J1/4 in.6.60 mm.
Line Size5/16 - 7/16 in.8.00 - 11.00 mm.
Working Load Limit2500.00 lb.1130.00 kg.
Breaking Strength5000.00 lb.2270.00 kg.
Weight1.80 oz.52.00 g.
