Tylaska  |  SKU: TYL-TY1030-CM  |  Manuf. Code: TY1030-CM

Tylaska Snap Shackle - Clevis Bail - T30C - Pin Dia: 12.0 mm

$580.82 USD $774.42

Description

Tylaska T30 is designed for large sailboats that need to support strong loads. With a breaking strength of 30,000 pounds, this shackle can handle sail loads on the largest of sailboats. A number of around-the-world racing teams utilize the T30. The T30 is intended for static load applications only and is NOT approved for lifting applications.

Our Part # TYL-TY1030-CM | Tylaska Part # TY1030-CM

Technical Information

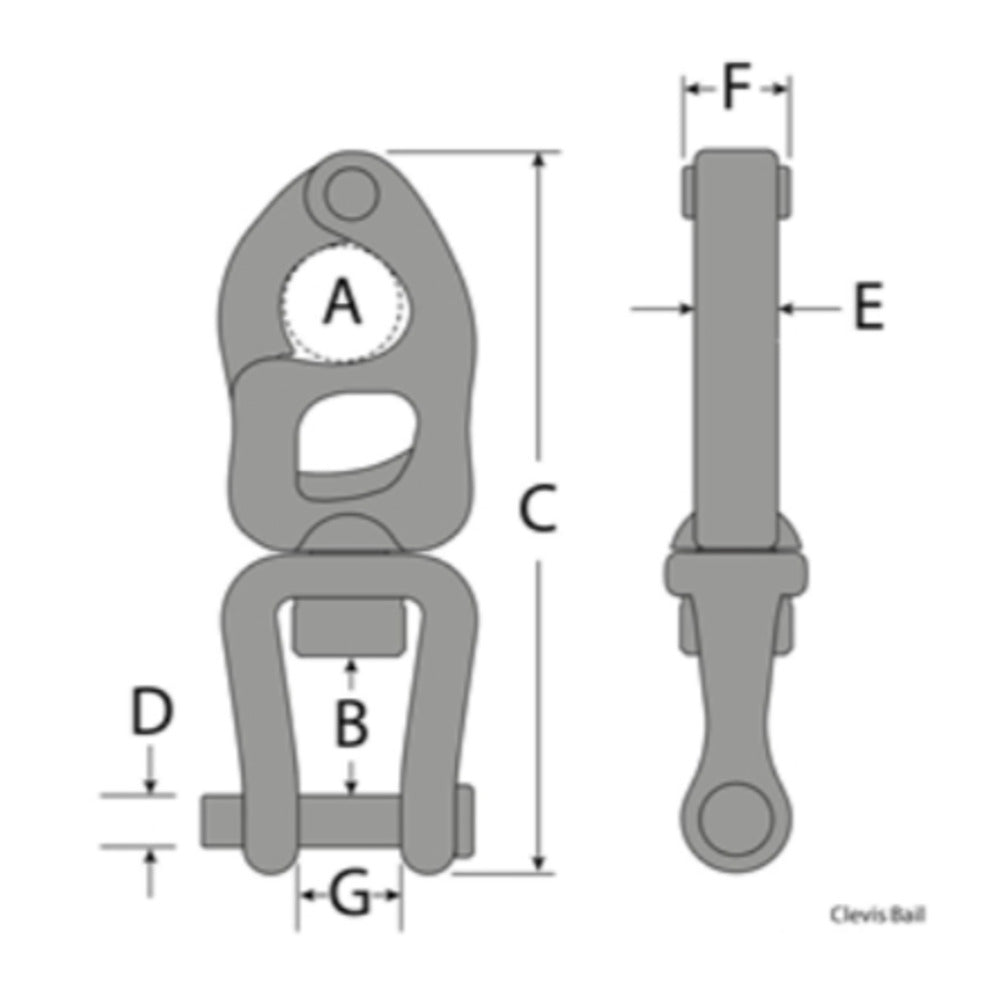

DescriptionImperialMetric
A1 1/4 mm.31.20 mm.
B1 3/8 in.34.30 mm.
C6 15/16 in.175.50 mm.
D1/2 in.12.00 mm.
E3/4 in.19.60 mm.
F1.00 in.24.70 mm.
G1.00 in.26.20 mm.
Working Load Limit10000.00 lb.4540.00 kg.
Weight31.20 oz.885.00 g.
Breaking Strength30000.00 lb.13610.00 kg.
