Tylaska  |  SKU: TYL-TY1020-CR  |  Manuf. Code: TY1020-CR

Tylaska Snap Shackle - Clevis Bail - T20C - Pin Dia: 7/16 in

$318.49 USD $424.65

Description

Tylaska T20 is a larger shackle designed for mid to large sized boats. The T-20 has a breaking strength of 20,000 pounds and weighs only 12.7 ounces in the standard bail configuration. Ideal for 40 to 70 foot sailboats. The T20 is intended for static load applications only and is NOT approved for lifting applications.

Our Part # TYL-TY1020-CR | Tylaska Part # TY1020-CR

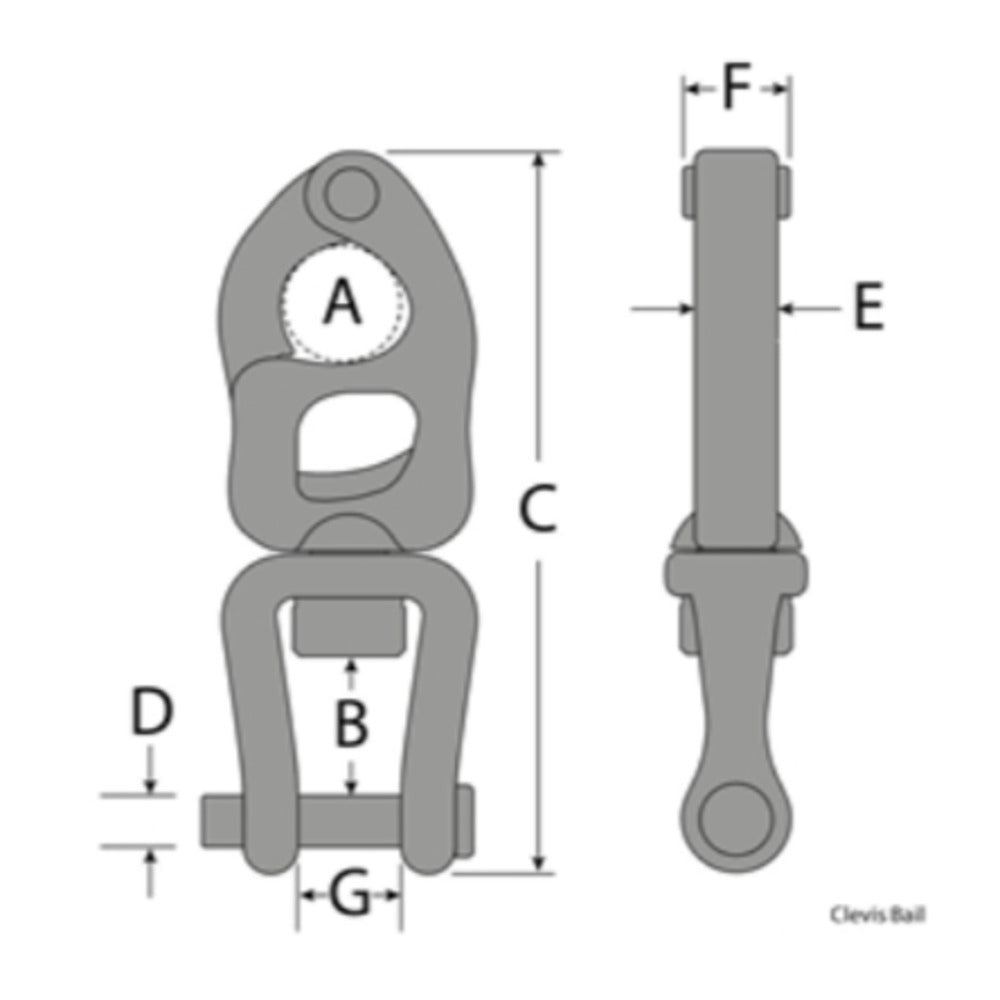

Technical Information


DescriptionImperialMetric
A1.00 in.25.10 mm.
B1 1/8 in.28.70 mm.
C5 5/8 in.142.20 mm.
D7/16 in.11.10 mm.
E9/16 in.14.00 mm.
F3/4 in.19.00 mm.
G13/16 in.20.30 mm.
Working Load Limit10000.00 lb.4540.00 kg.
Weight15.30 oz.434.00 g.
Breaking Load20000.00 lb.9070.00 kg.
