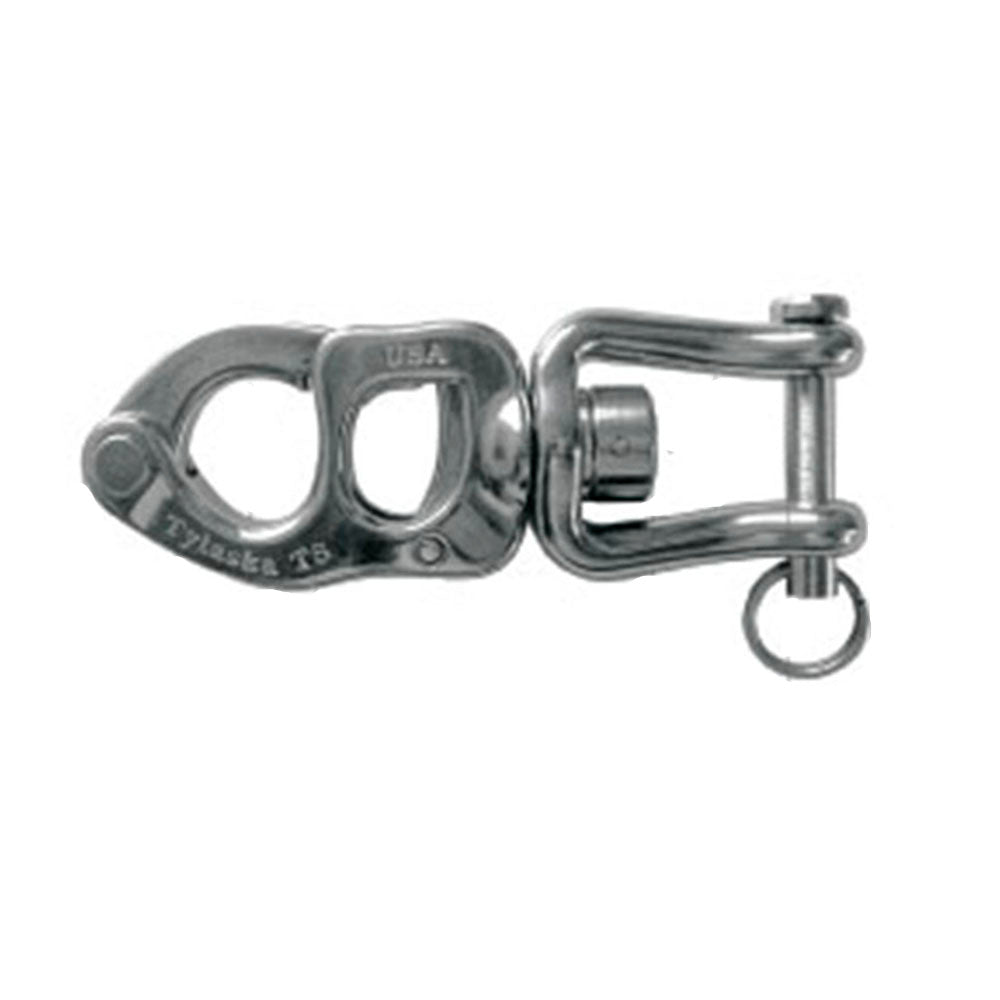

Tylaska Snap Shackle - Clevis Bail - T5C - Pin Dia: 6.0 mm
Tylaska Snap Shackle - Clevis Bail - T5C - Pin Dia: 6.0 mm is backordered and will ship as soon as it is back in stock.
Description
Description
Tylaska T5 Snap Shackles are perfect for small boat applications requiring high strength and low weight. They have a SWL of 1.136kg and weigh just 59.00 g. in the standard bail configuration. Ideal for J-24s, Mumm 30s and similar boats. Clevis Bails do not require splicing and provide moveable attachments to rings, deck fittings, furlers, rolling furlers, etc. Ideal for many uses.
Our Part # TYL-TY1005-CM | Tylaska Part # TY1005-CM
Technical Information
Technical Information

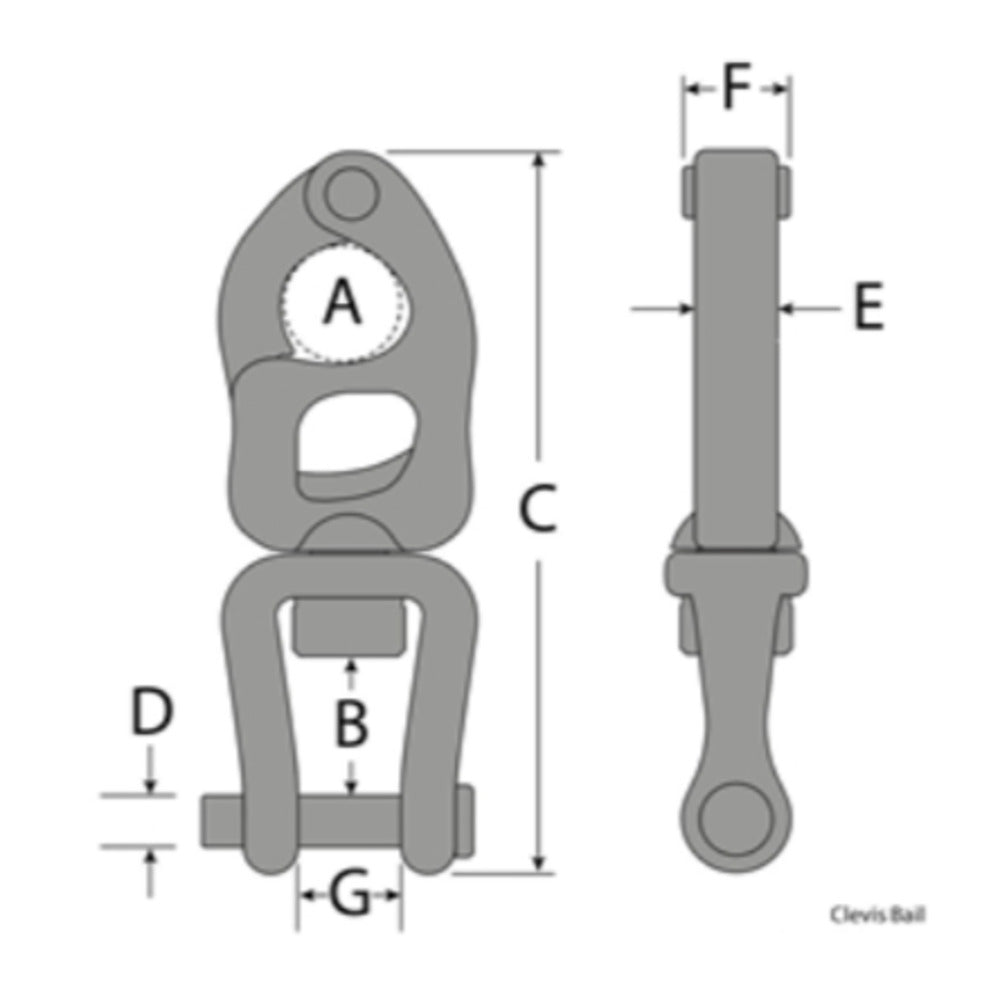

Description | Imperial | Metric | A | 0.53 in. | 13.50 mm. | B | 0.57 in. | 14.50 mm. | C | 3.19 in. | 81.00 mm. | D | 0.24 in. | 6.00 mm. | E | 0.30 in. | 7.60 mm. | F | 0.44 in. | 11.10 mm. | G | 0.50 in. | 12.70 mm. | Weight | 2.70 oz. | 77.00 g. | Working Load Limit | 2500.00 lb. | 1130.00 kg. | Breaking Strength | 5000.00 lb. | 2270.00 kg. |
---|
