Description

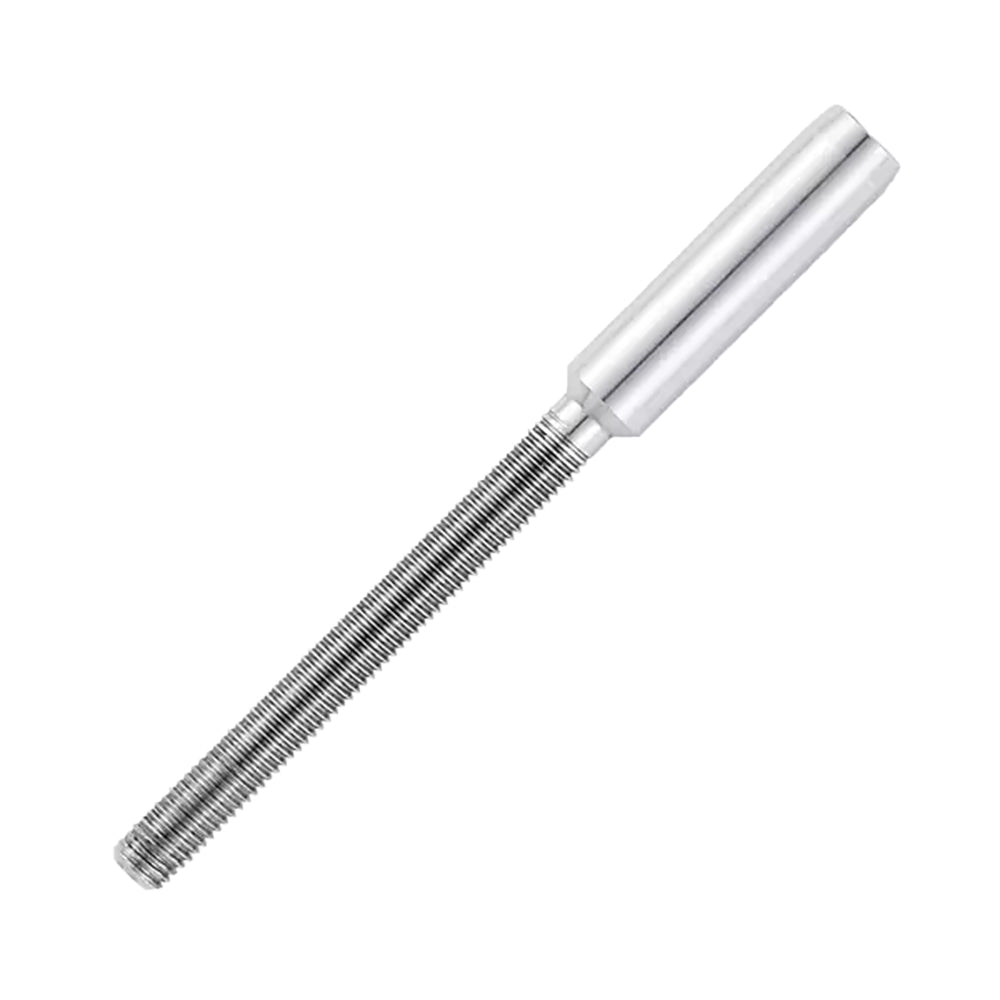

Marine grade stainless steel, to be used with life line fittings only.

Our Part # STA-LS-03-14X112L-T6 | Sta-Lok Part # LS-03-14X112L

Features

• Manufactured from 316 stainless steel
• Machine Swaged
• To be used with life line fittings only
• Available for INCH Wire only
• For use with all Lifeline Turnbuckles and Pelican Hooks

Sizing

SKU	Wire Size (Imperial)	Thread (UNF)	Thread Length	Weight (KG)	Weight (LB)	Thread Type	Additional Information
LS-03-14X112L	1/8"	1/4"	1 1/2"	0.012	0.026	Left Hand	-
LS-03-14X112R	1/8"	1/4"	1 1/2"	0.012	0.026	Right Hand	-
LS-04-14X214R	5/32"	1/4"	2 1/4"	0.019	0.042	Right Hand	-
LS-04-516X238R	5/32"	5/16"	2 3/8"	0.027	0.059	Right Hand	-
LS-05-14X214L	3/16"	1/4"	2 1/4"	0.023	0.051	Left Hand	-
LS-05-14X214R	3/16"	1/4"	2 1/4"	0.023	0.051	Right Hand	-
LS-05-516X238L	3/16"	5/16"	2 3/8"	0.031	0.068	Left Hand	-
LS-05-516X238R	3/16"	5/16"	2 3/8"	0.031	0.068	Right Hand	-
LS-06-516X238R	1/4"	5/16"	2 3/8"	0.045	0.099	Right Hand	*Use 7/32" swaging dies
LS-06-38X234R	1/4"	3/8"	2 3/4"	0.055	0.112	Right Hand	*Use 7/32" swaging dies

Technical Information

Wire: 1/8
Thread: 1/4 / 1 1/2
Weight: 0.012 kg / 0.026 lb
