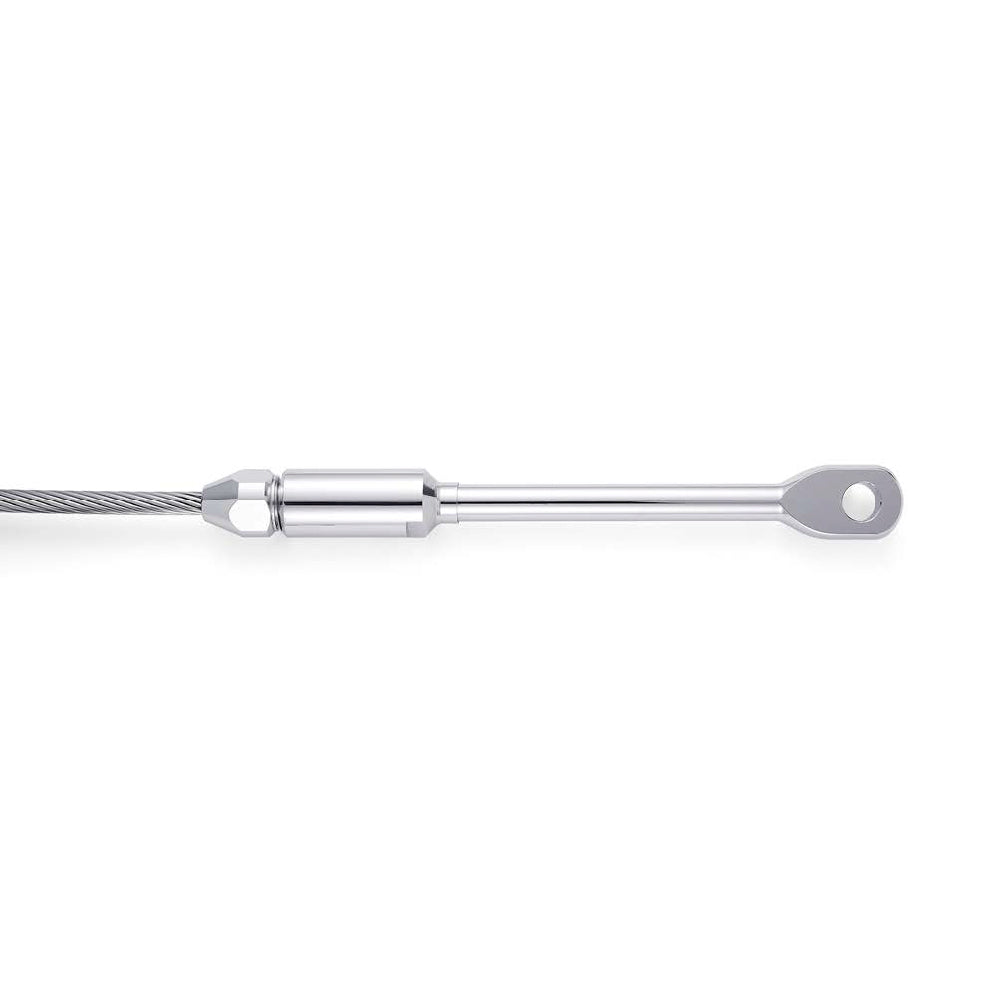

Sta-Lok Standing Rigging - Swageless Long Eye - For Wire: 7/32 in & Hole: 3/8 in (9.8 mm)

Sta-Lok Self Fit Terminal, the reusable alternative to swage.

Our Part # STA-178-55-38 | Sta-Lok Part # 178-55-3/8

Features:

• Enables replacement of swages without having to replace the wire rope.
• Only basic hand tools required.
• Quick and easy to install.
• No pre-measurement needed.
• Guaranteed stronger than wire rope.
• Manufactured from high specification 316 stainless steel.
• For right hand and left hand lay wire rope.
• Packed for 1x19 wire as standard.
• Different wedges are available to terminate 7 strand & compacted wire ropes.
• Supplied with split pin.
• Right hand thread only.

Wire: 7/32 in

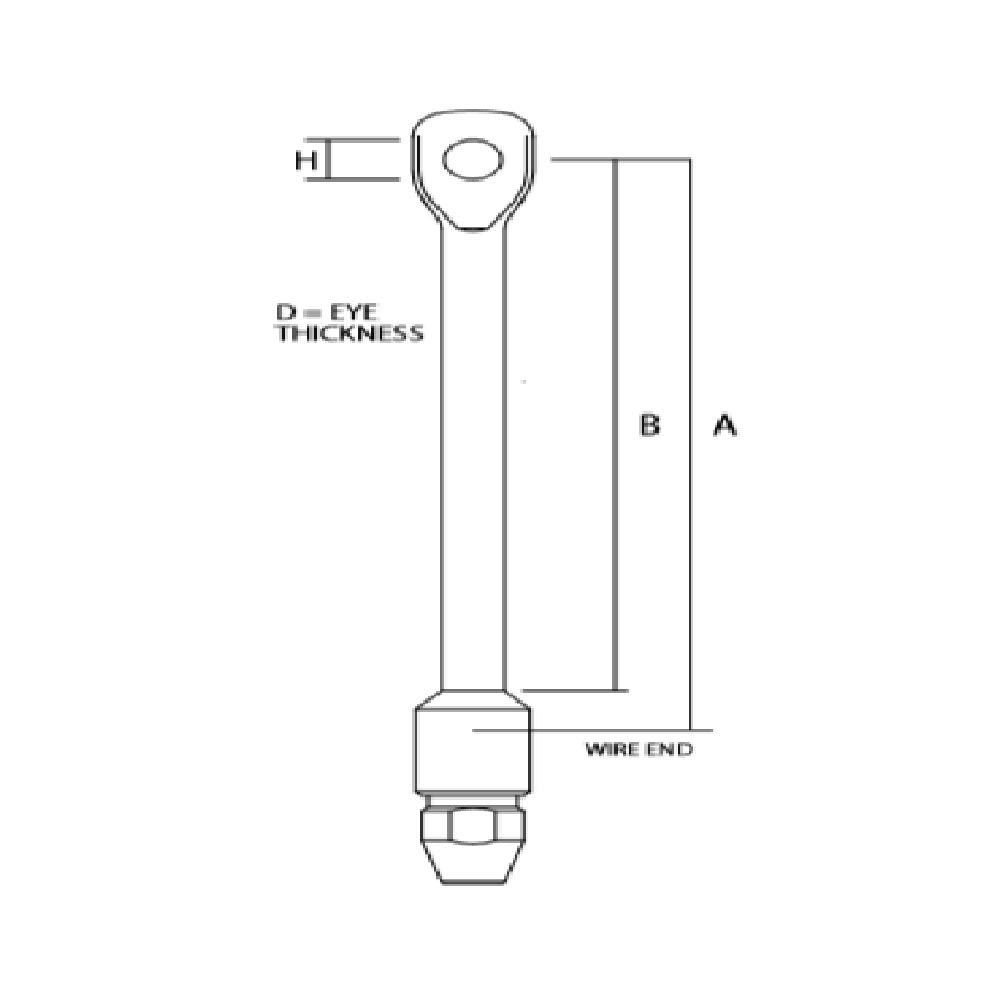

A: 126 mm / 4.875 in
B: 100 mm / 3.937 in
D: 7.5 mm / 0.295 in
H: 9.8 mm / 3/8 in
Weight: 0.2 kg / 0.441 lb
