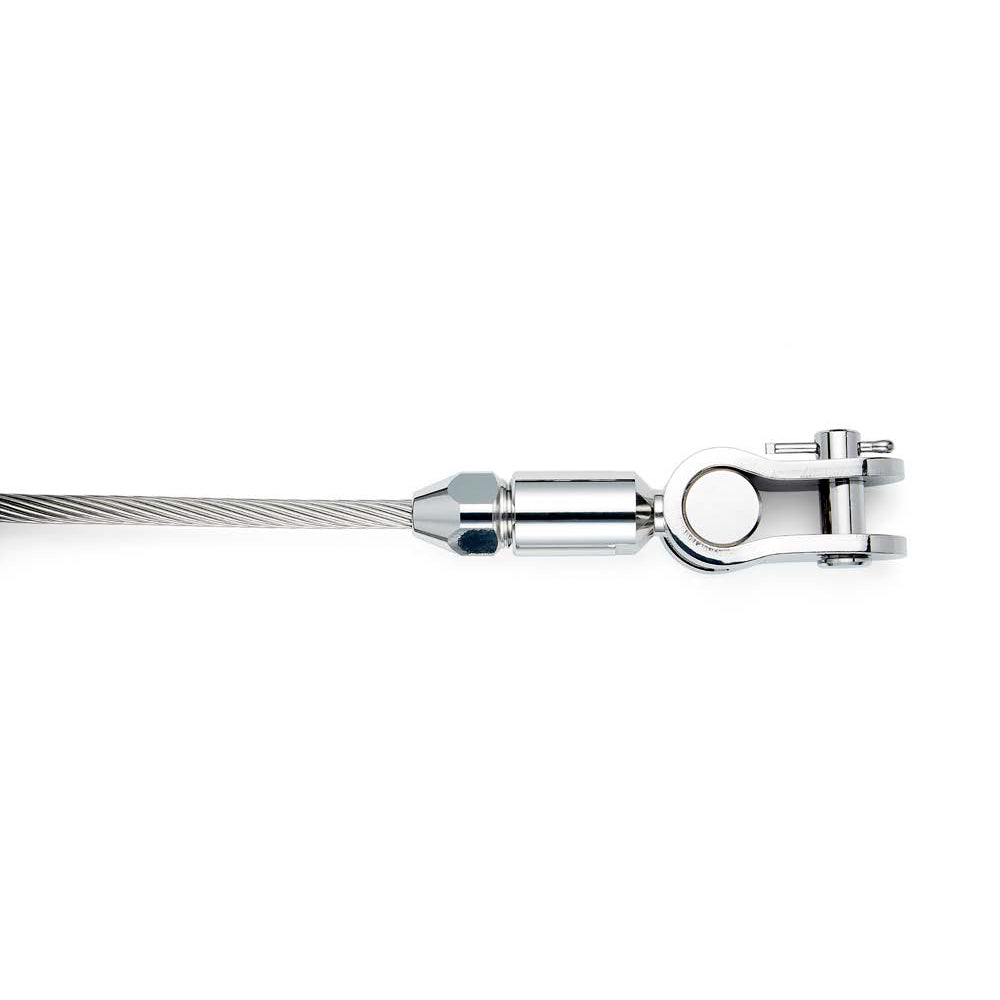

Sta-Lok Self Fit Terminal, the reusable alternative to swage

Our Part # STA-150-55 | Sta-Lok Part # 150-55

Features

Features:

• Only basic hand tools required.
• Quick and easy to install.
• No pre-measurement needed.
• Guaranteed stronger than wire rope.
• Manufactured from high specification 316 stainless steel.
• For right hand and left hand lay wire rope.
• Packed for 1x19 wire as standard.
• Different wedges are available to terminate 7 strand & compacted wire ropes.
• Two part assembly - Threadlock recommended.

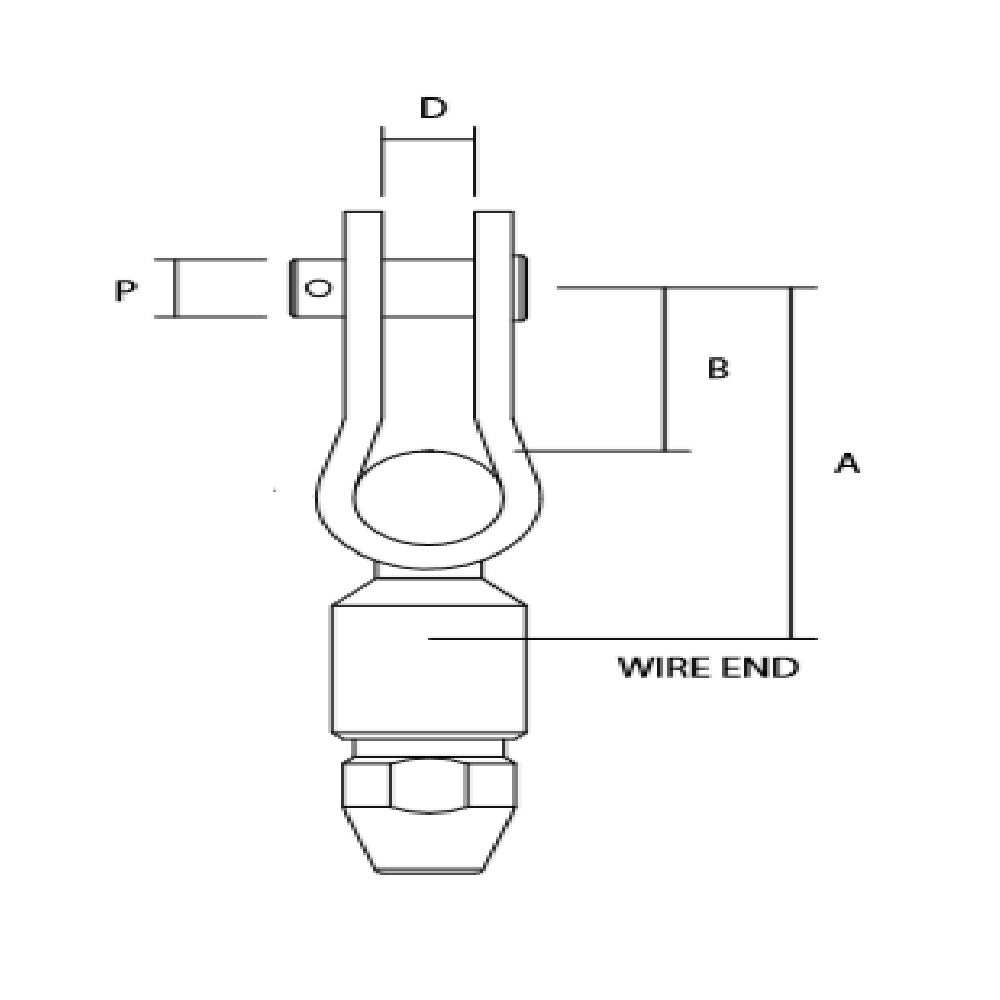

Technical Information

Wire: 7/32 in
A: 56 mm / 2.205 in
B: 20 mm / 0787 in
D: 9.9 mm / 0.39 in
P: 9.5 mm / 3/8 in
Weight: 0.18 kg / 0.397 lb
