Description

Sta-Lok Self Fit Terminal, the reusable alternative to swage

Our Part # STA-150-05-516 | Sta-Lok Part # 150-05-5/16

Features

Features:

• Only basic hand tools required.
• Quick and easy to install.
• No pre-measurement needed.
• Guaranteed stronger than wire rope.
• Manufactured from high specification 316 stainless steel.
• For right hand and left hand lay wire rope.
• Packed for 1x19 wire as standard.
• Different wedges are available to terminate 7 strand & compacted wire ropes.
• Two part assembly - Threadlock recommended.

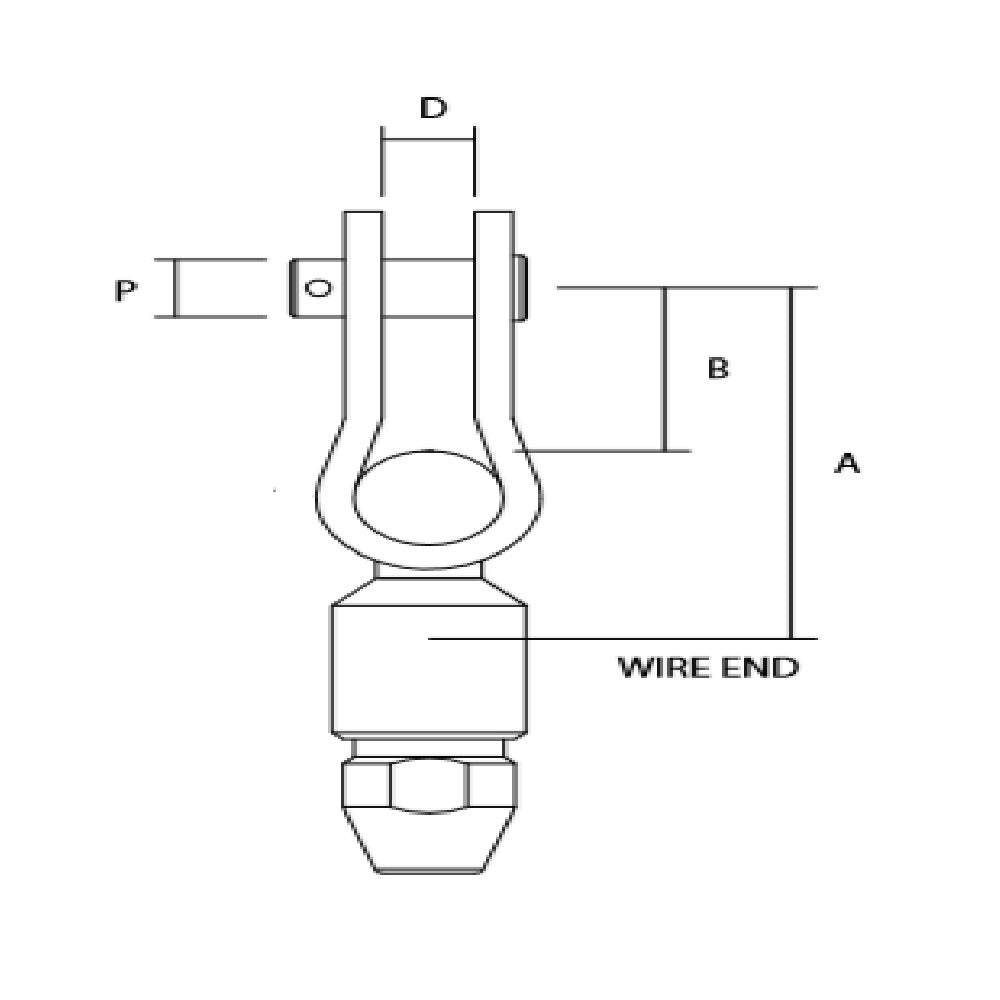

Technical Information

Wire: 3/16 in
A: 48 mm / 1.89 in
B: 19 mm / 0.748 in
D: 8.4 mm / 0.453 in
P: 7.9 mm / 5/16 in
Weight: 0.1 kg / 0.22 lb
