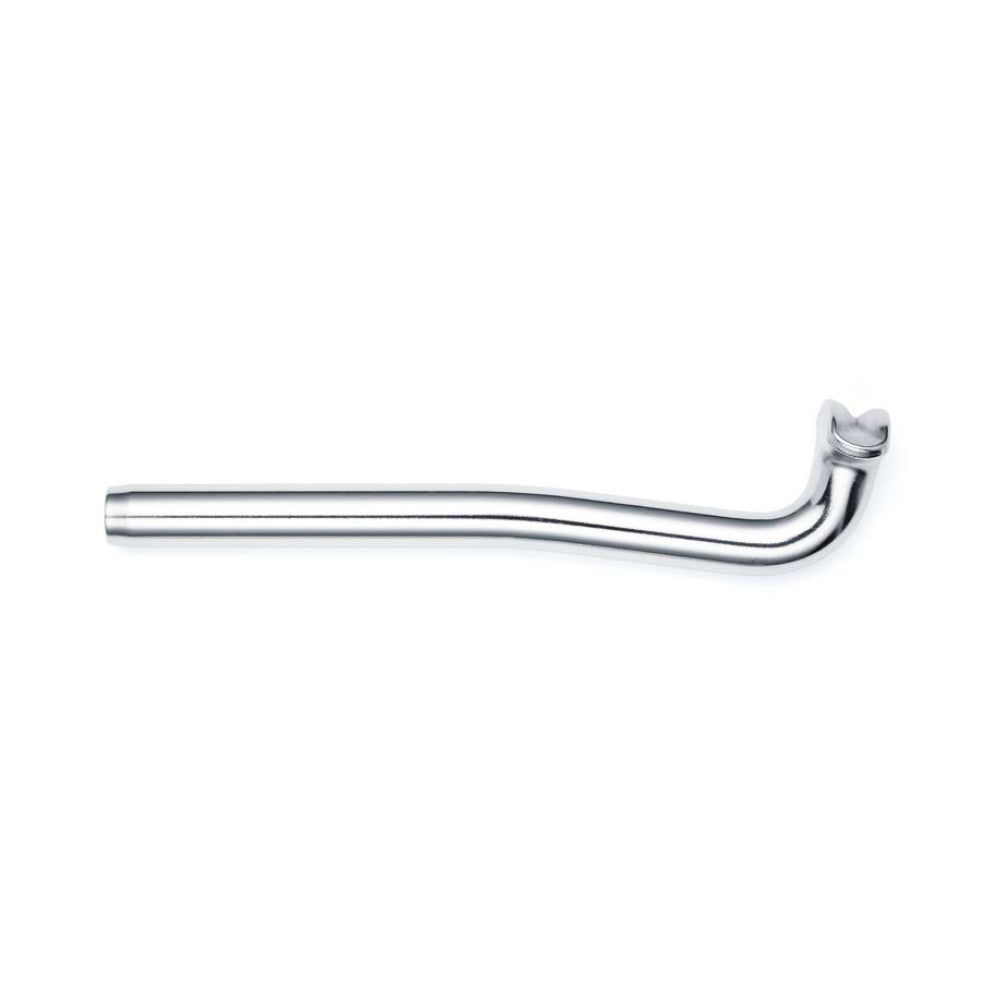

Sta-Lok Standing Rigging - Swage T-Terminal - For Wire: 3/8 in

Suitable for use with rotary & fixed die swaging machine.

Our Part # STA-144-10 | Sta-Lok Part # 144-10

Features:

• Manufactured from high specification 316 stainless steel.
• Use with 1x19, 7 Strand and compacted stand wire rope (IWRC).
• Minimum hole depth 10x wire diameter.
• Metric and Inch wire ropes.

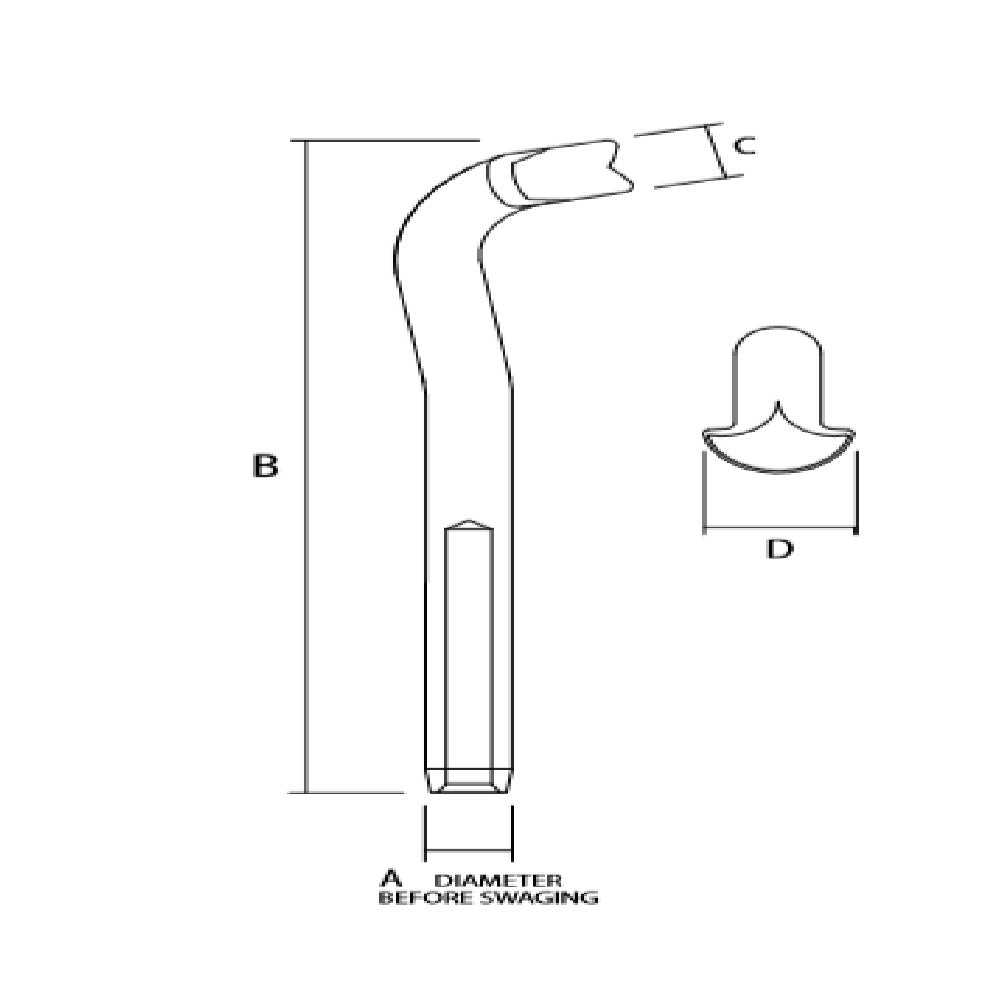

Wire: 3/8 in
A: 17.8 mm / 0.701 in
B: 208 mm / 8.189 in
C: 17.5 mm / 0.689 in
D: 36.4 mm / 1.434 in
Weight: 0.42 kg / 0.926 lb
