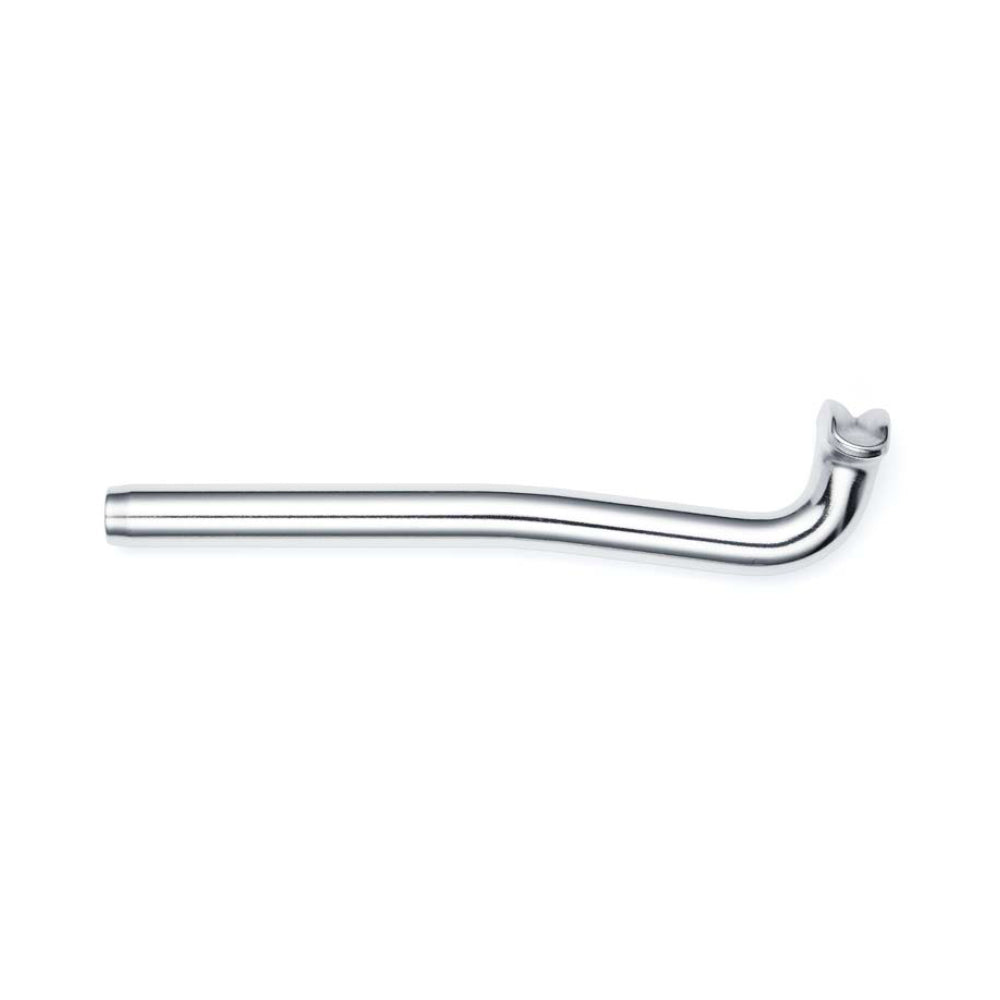

Sta-Lok Standing Rigging - Swage T-Terminal - For Wire: 1/4 in

Suitable for use with rotary & fixed die swaging machine.

Our Part # STA-144-06 | Sta-Lok Part # 144-06

Features:

• Manufactured from high specification 316 stainless steel.
• Use with 1x19, 7 Strand and compacted stand wire rope (IWRC).
• Minimum hole depth 10x wire diameter.
• Metric and Inch wire ropes.

Wire: 1/4 in

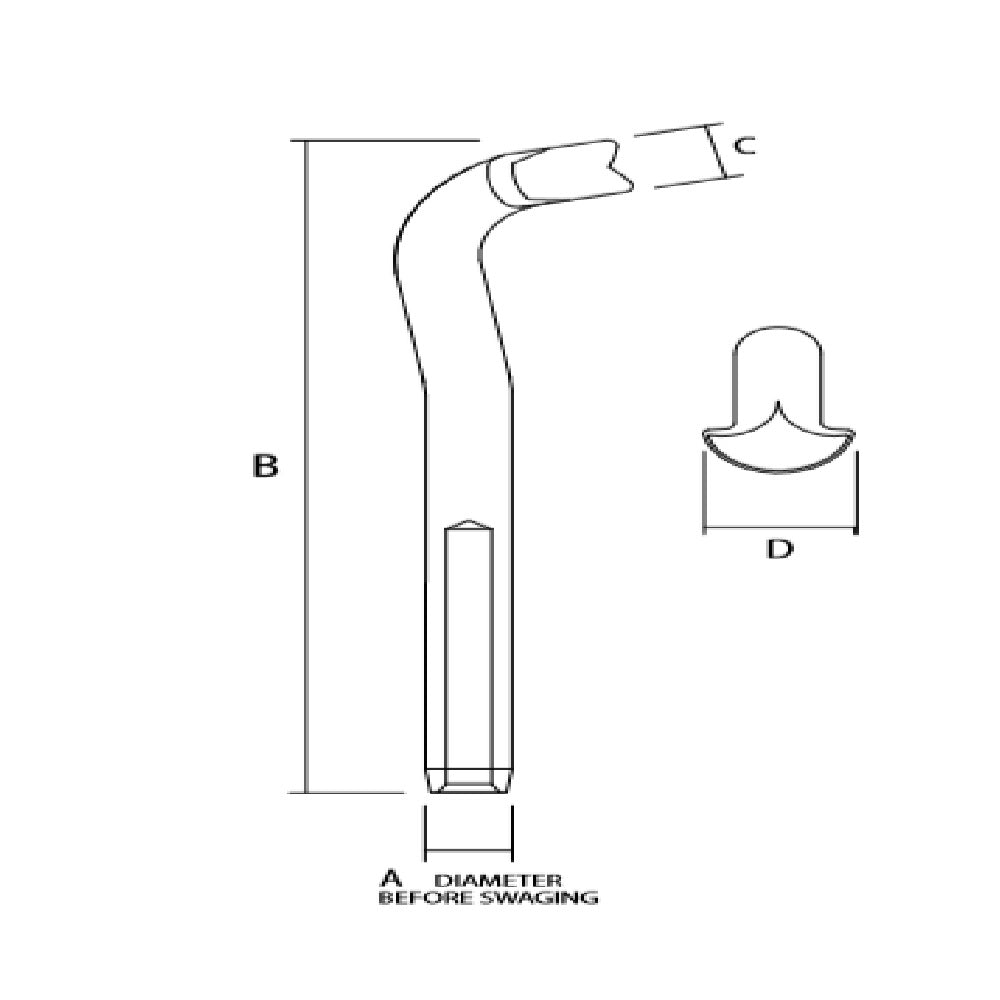

A: 12.5 mm / 0.492 in
B: 138 mm / 5.433 in
C: 12.6 mm / 0.496 in
D: 27.7 mm / 1.089 in
Weight: 0.140 kg / 0.309 lb
