Description

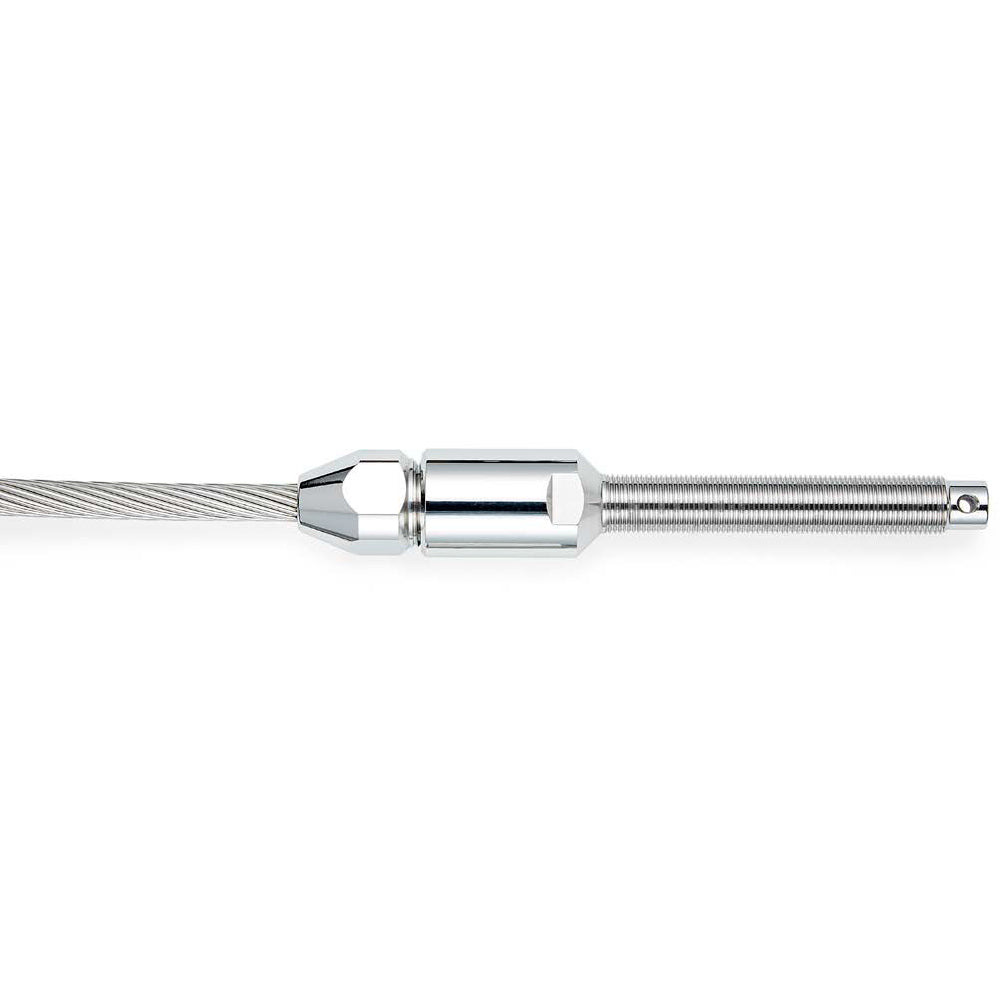

The Sta-Lok Swageless Stud - 7/32" Wire 3/8" Unf Right Hand #136-55 is a versatile and reliable solution for those who need a reusable alternative to traditional swaging. It's perfect for anyone looking for an easy-to-install option that doesn’t compromise on strength or durability. Whether you're out on the water or working on a project at home, this product makes the task smooth and straightforward.

Features & Benefits

• Reusable design eliminates the need for swaging.
• Easy installation with no special tools required.
• Compatible with 7/32" wire and 3/8" UNF threads.

Crafted from high-quality stainless steel, this swageless stud is built to withstand harsh marine environments. It is designed to fit 7/32" diameter wire and equipped with a 3/8" UNF right-hand thread for secure fastening. Ideal for sailing enthusiasts or anyone involved in rigging, the Sta-Lok Swageless Stud ensures a robust connection with ease of use in mind.

Features

Features:

• Only basic hand tools required.
• Quick and easy to install.
• No pre-measurement needed.
• Guaranteed stronger than wire rope.
• For right hand and left hand lay wire rope.
• Packed for 1x19 wire as standard.
• Manufactured from high specification 316 stainless steel.
• Different wedges are available to terminate 7 strand & compacted wire ropes.
• Supplied with split pin.
• Right hand thread only.

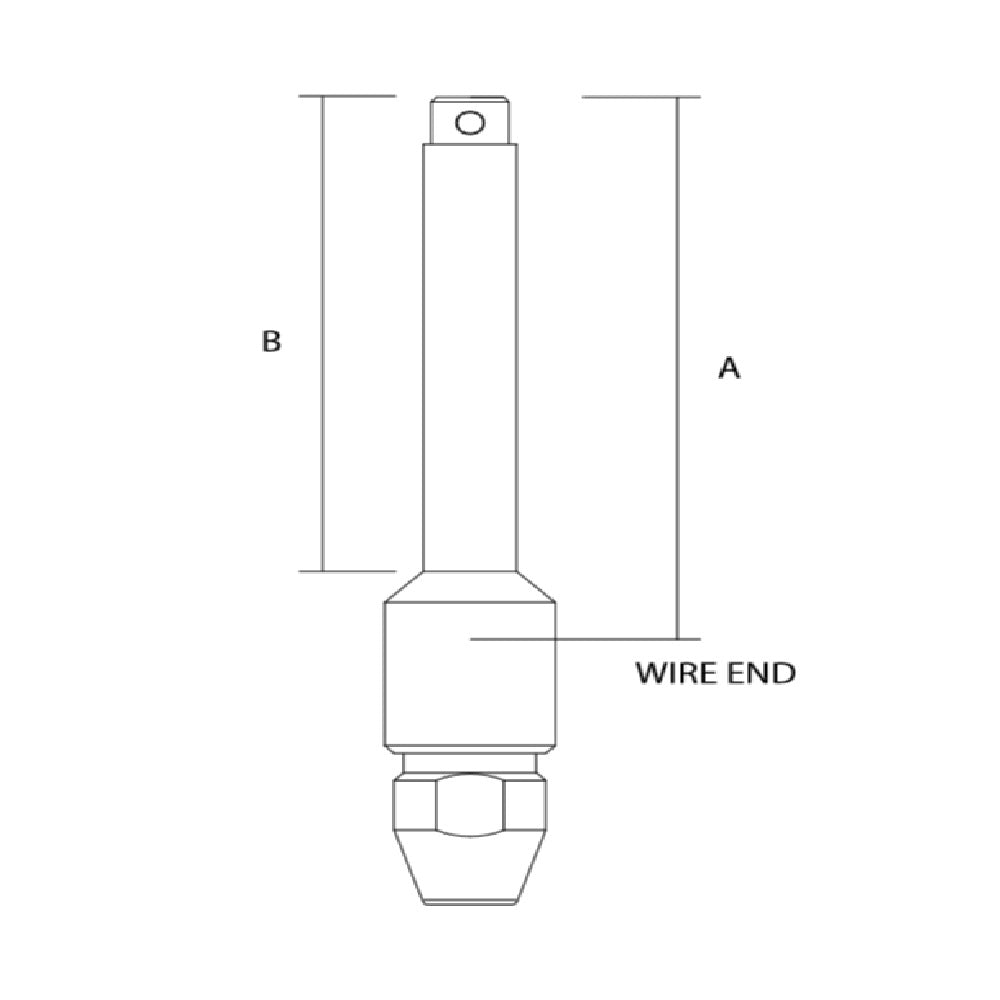

Technical Information

Wire: 7/32 in
A: 84 mm / 3.312 in
B: 66.7 mm / 2.625 in
Thread: 3/8
Weight: 0.12 kg / 0.265 lb
