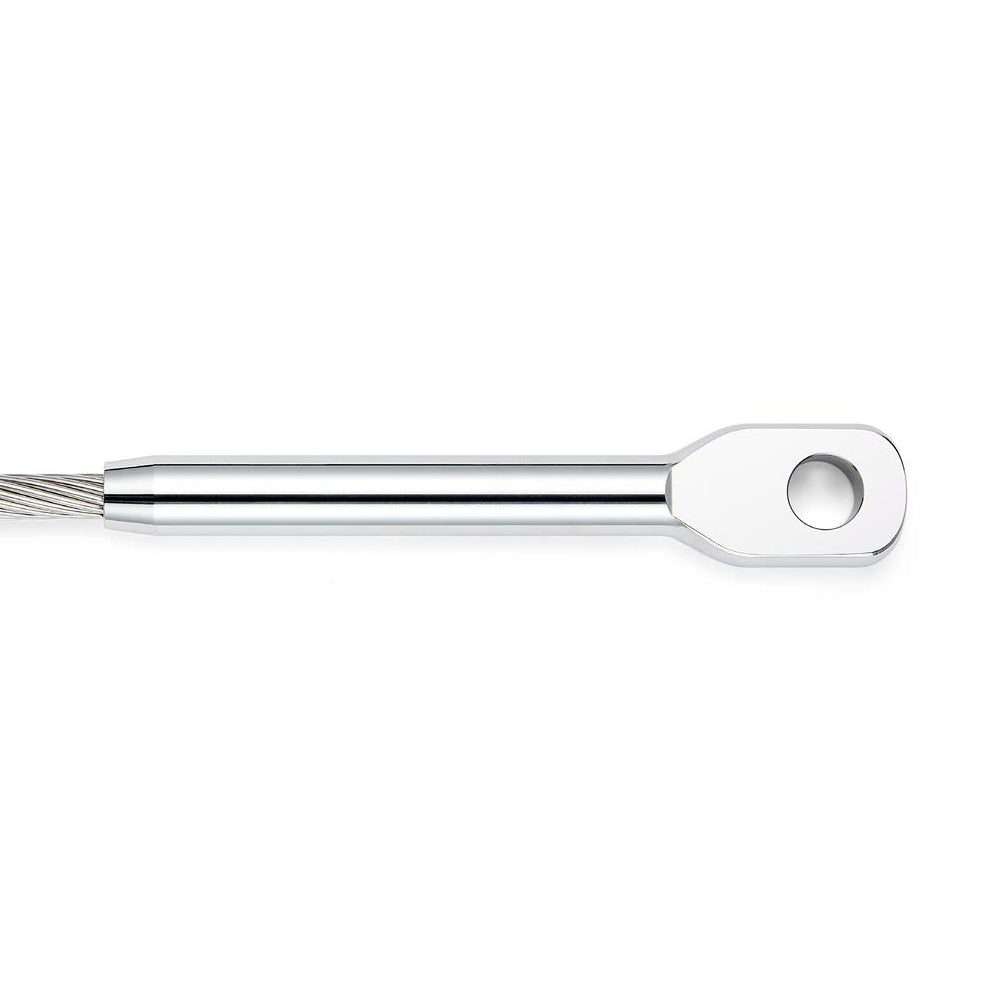

Sta-Lok Standing Rigging - Swage Eye (Narrow) - Wire: 3/8 in & Hole Dia: 5/8 in

Suitable for use with rotary & fixed die swaging machine

Our Part # STA-130N-10 | Sta-Lok Part # 130N-10

Feature:

• Manufactured from high specification 316 stainless steel.
• Use with 1x19, 7 Strand and compacted stand wire rope (IWRC).
• Minimum hole depth 10x wire diameter.
• Metric and Inch wire ropes.

Wire: 3/8 in

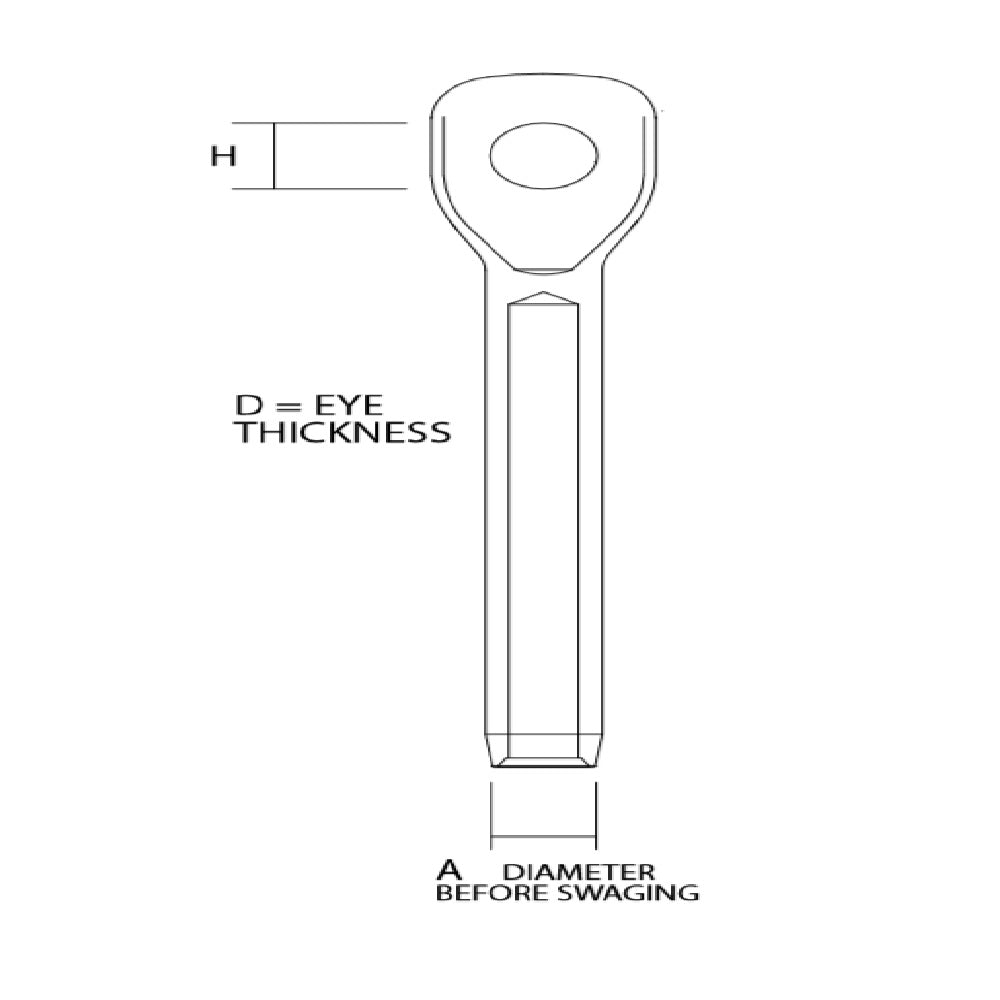

A: 17.7 mm / 0.698 in
D: 11 mm / 0.433 in
H: 16 mm / 5/8 in
Weight: 0.24 kg / 0.529 lb
