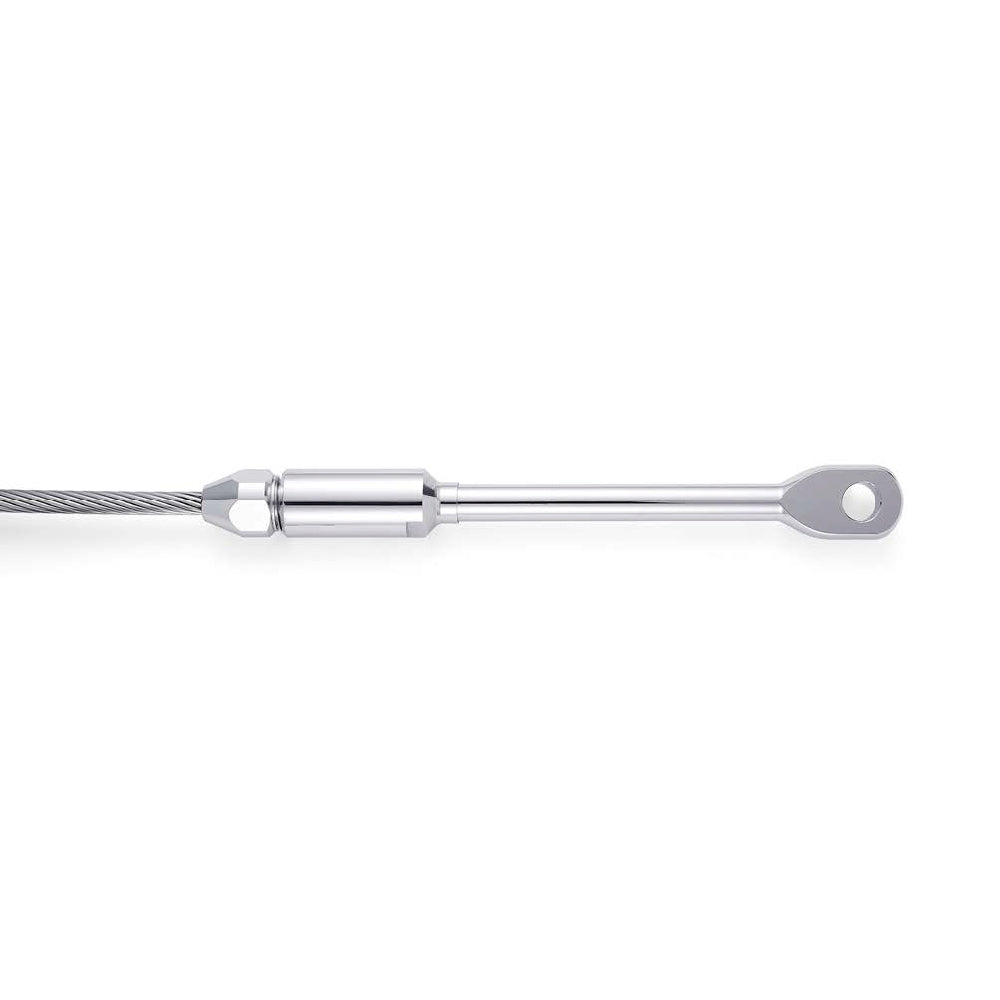

Sta-Lok Standing Rigging - Swageless Long Eye - For Wire: 5/16 in & Hole: 5/8 in (15.88 mm)

Sta-Lok Self Fit Terminal, the reusable alternative to swage.

Our Part # STA-078-08-58 | Mfr. Part # 078-08-5/8

• Enables replacement of swages without having to replace the wire rope.
• Only basic hand tools required.
• Quick and easy to install.
• No pre-measurement needed.
• Guaranteed stronger than wire rope.
• Manufactured from high specification 316 stainless steel.
• For right hand and left hand lay wire rope.
• Packed for 1x19 wire as standard.
• Different wedges are available to terminate 7 strand & compacted wire ropes.

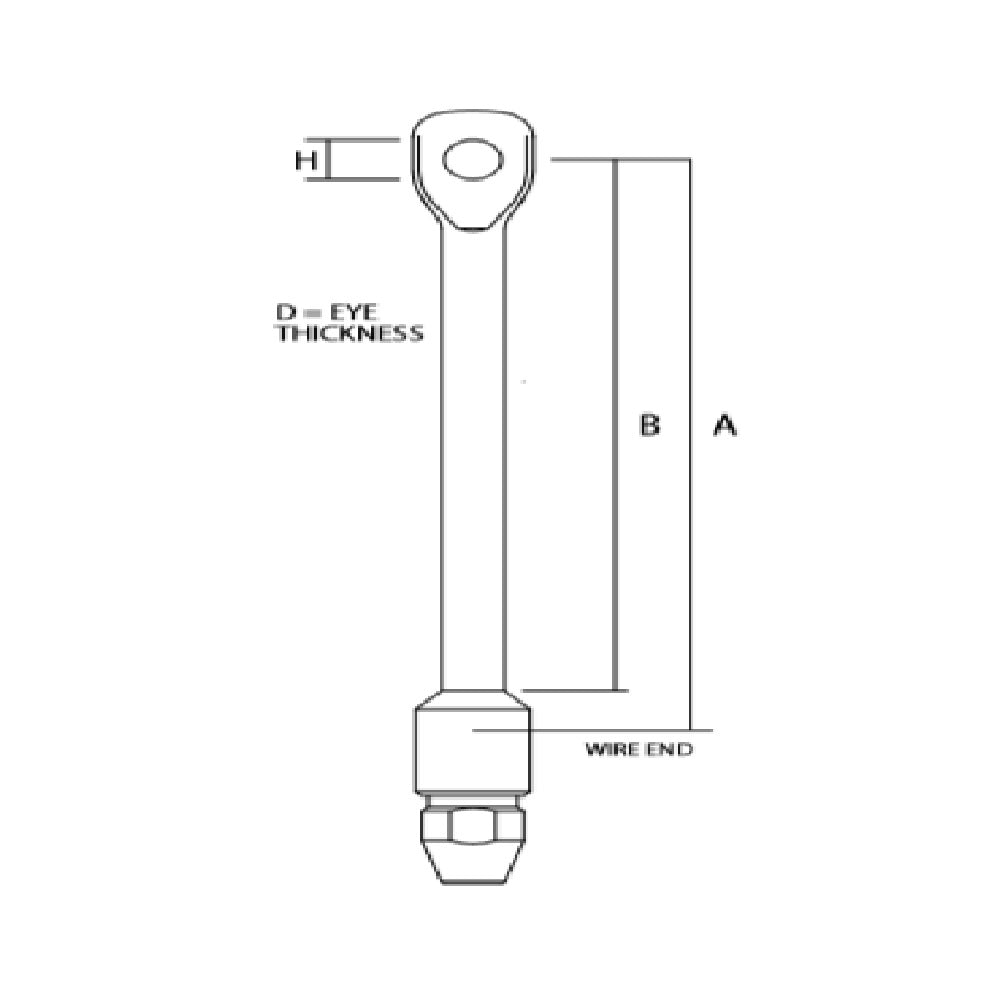

Wire: 8 mm / 5/16 in
A: 175 mm / 6.889 in
B: 136.4 mm / 5.369 in
D: 13.5 mm / 0.531 in
H: 16 mm / 5/8 in
Weight: 0.54 kg / 1.19 lb
