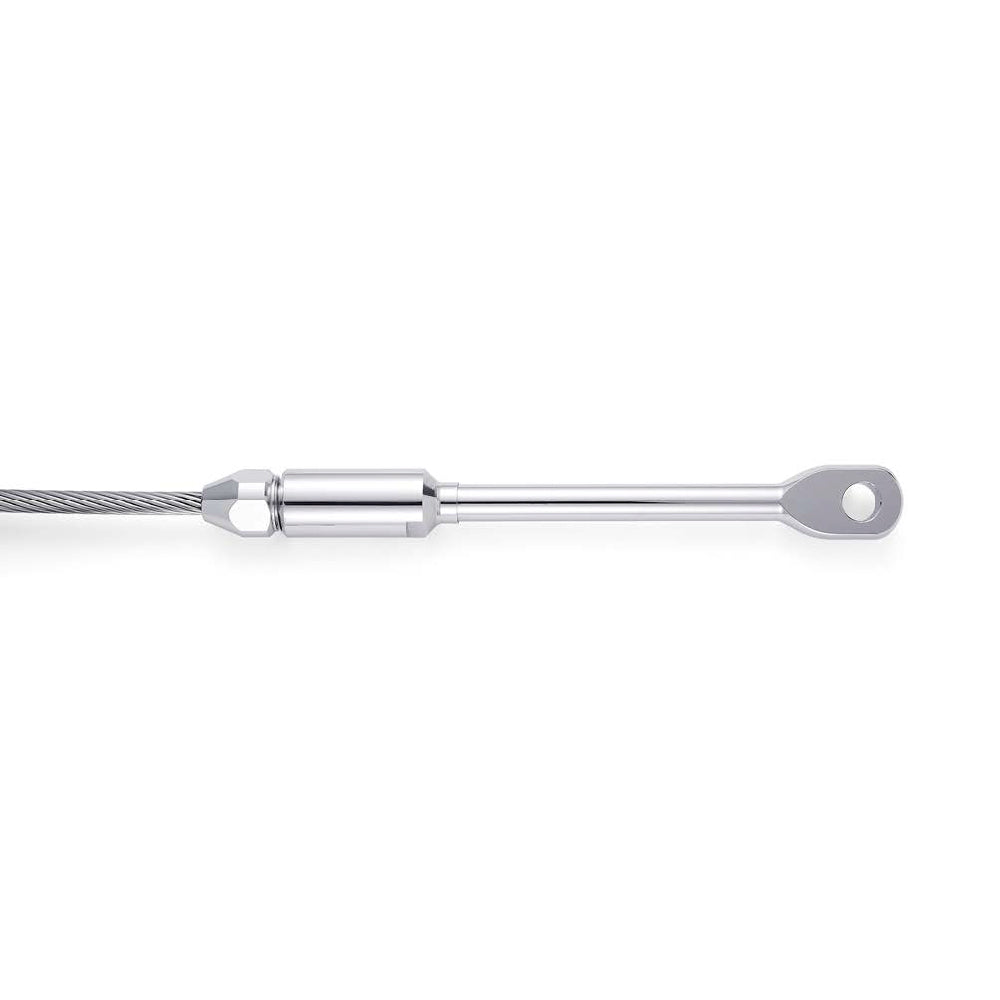

Sta-Lok Standing Rigging - Swageless Long Eye - For Wire: 9/32 in & Hole: 1/2 in (12.7 mm)

Sta-Lok Self Fit Terminal, the reusable alternative to swage.

Our Part # STA-078-07 | Sta-Lok Part # 078-07

Fetaures:

• Enables replacement of swages without having to replace the wire rope.
• Only basic hand tools required.
• Quick and easy to install.
• No pre-measurement needed.
• Guaranteed stronger than wire rope.
• Manufactured from high specification 316 stainless steel.
• For right hand and left hand lay wire rope.
• Packed for 1x19 wire as standard.
• Different wedges are available to terminate 7 strand & compacted wire ropes.

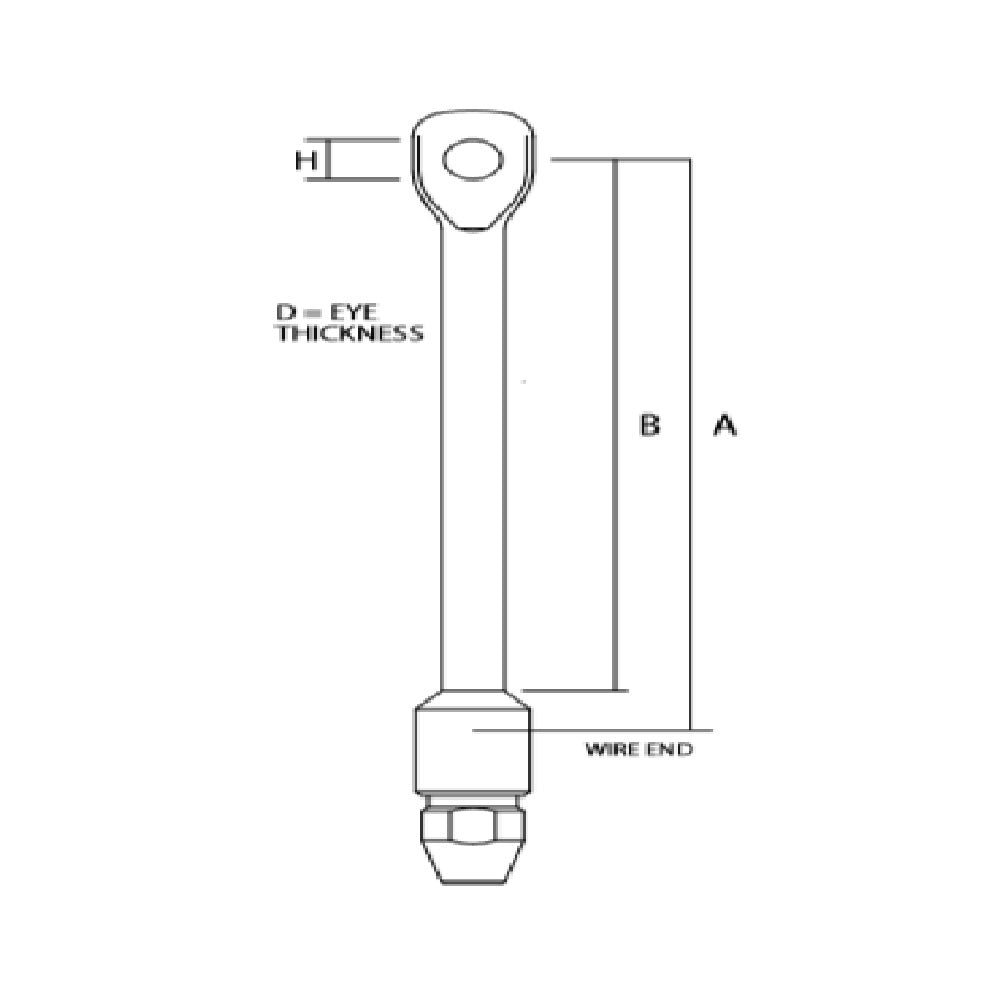

Wire: 7 mm / 9/32 in
A: 147 mm / 5.781 in
B: 117.5 mm / 4.625 in
D: 12 mm / 0.472 in
H: 13 mm / 1/2 in
Weight: 0.3 kg / 0.661 lb
