Description

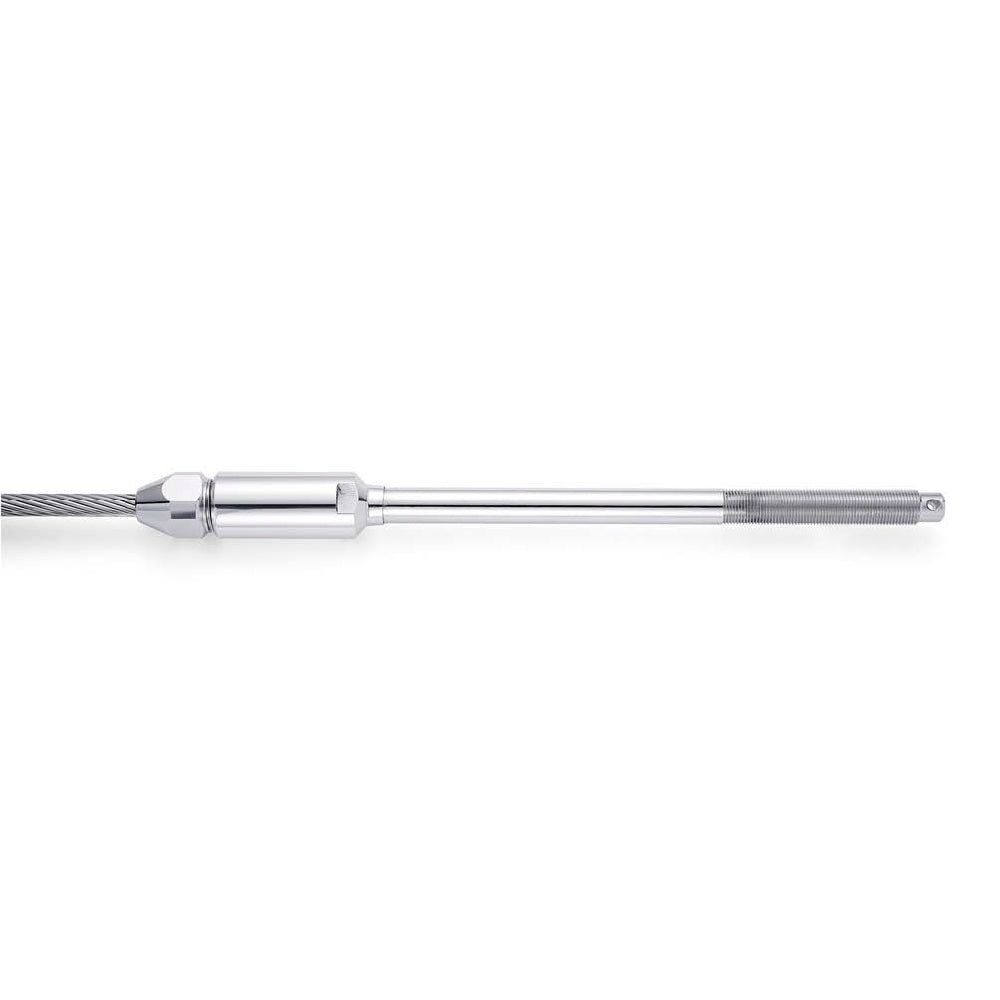

Sta-Lok Self Fit Terminal, the reusable alternative to swage.

Our Part # STA-076-04 | Sta-Lok Part # 076-04

Features

Features:

• Enables replacement of swages without having to replace the wire rope.
• Only basic hand tools required.
• Quick and easy to install.
• No pre-measurement needed.
• Guaranteed stronger than wire rope.
• Manufactured from high specification 316 stainless steel.
• For right hand and left hand lay wire rope.
• Packed for 1x19 wire as standard.
• Different wedges are available to terminate 7 strand & compacted wire ropes.
• Supplied with split pin.
• Right hand thread only.

Technical Information

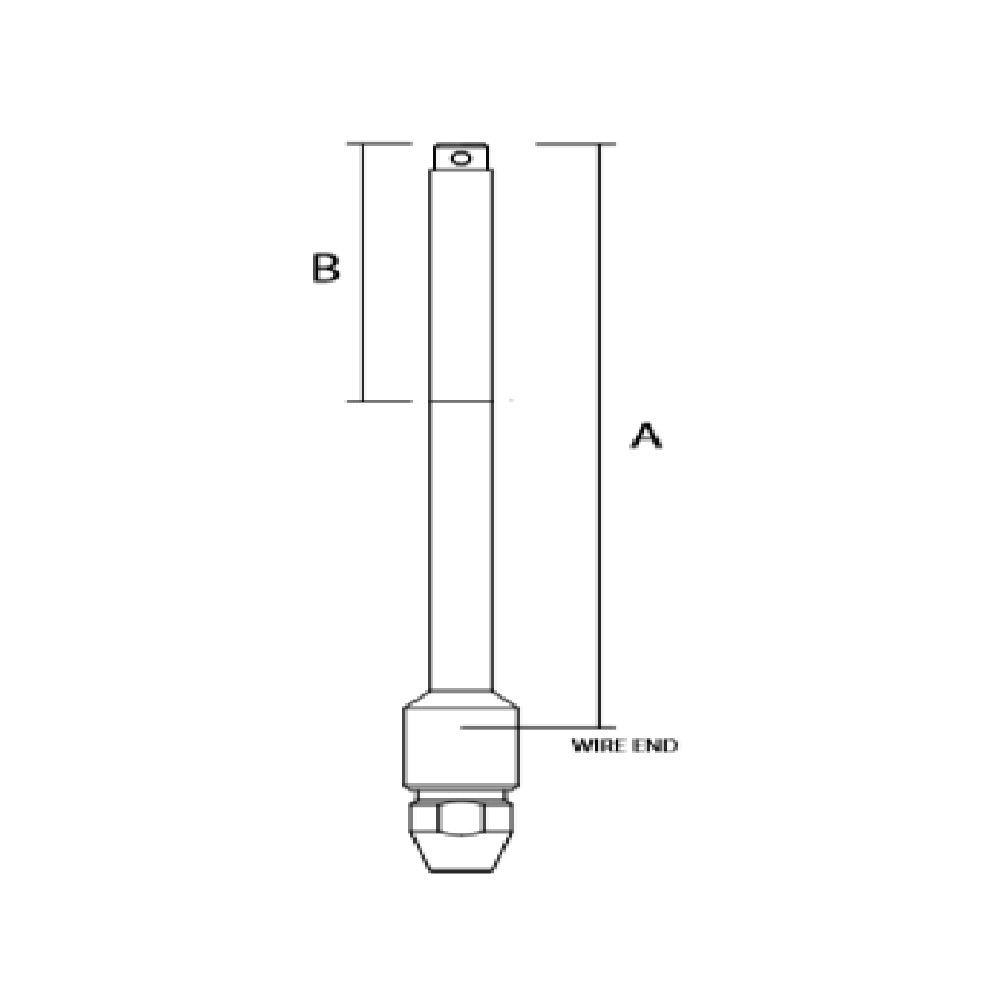

Wire: 4 mm / 5/32 in
A: 141.3 mm / 5.562 in
B: 54 mm / 2.125 in
Thread: 5/16
Weight: 0.08 kg / 0.176 lb
