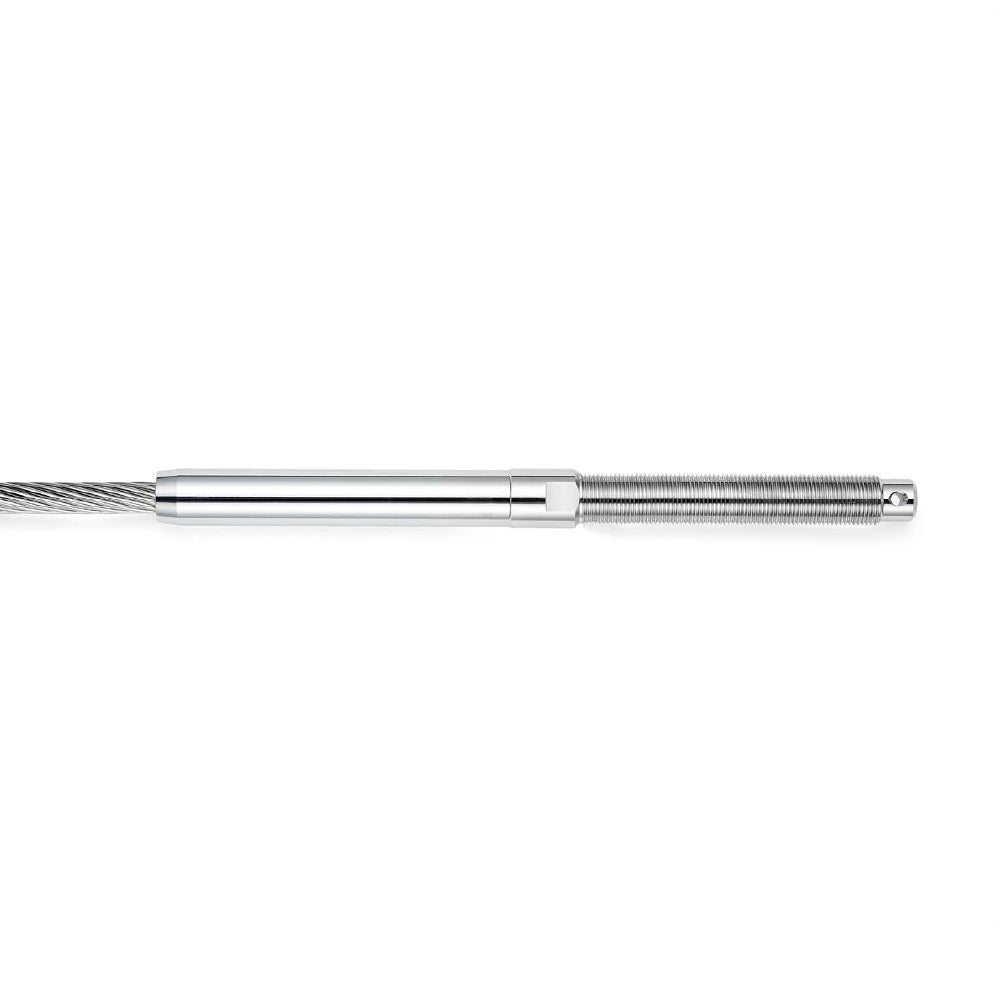

Sta-Lok Standing Rigging - Swage Stud Open (Right Hand) w/ Threads: 3/8 in - For Wire: 6.0 mm
SKU:
STA-051-06-38
|
Manuf. Code:
051-06-3/8
20% off
Unit price
/
Unavailable
Sta-Lok Standing Rigging - Swage Stud Open (Right Hand) w/ Threads: 3/8 in - For Wire: 6.0 mm is backordered and will ship as soon as it is back in stock.
Description
Description
Suitable for use with rotary & fixed die swaging machine.
Our Part # STA-051-06-38 | Sta-Lok Part # 051-06-3/8
Features
Features
Fetaures:
- Manufactured from high specification 316 stainless steel.
- Use with 1x19, 7 Strand and compacted stand wire rope (IWRC).
- Metric and Inch wire ropes.
- Minimum hole depth 10x wire diameter.
- Use with open and closed body turnbuckles.
- Right hand thread only.
Technical Information
Technical Information
Wire: 6 mm
Thread: 3/8
A: 12.4 mm / 0.489 in
B: 67 mm / 2.625 in
Weight: 0.08 kg / 0.176 lb
