Description

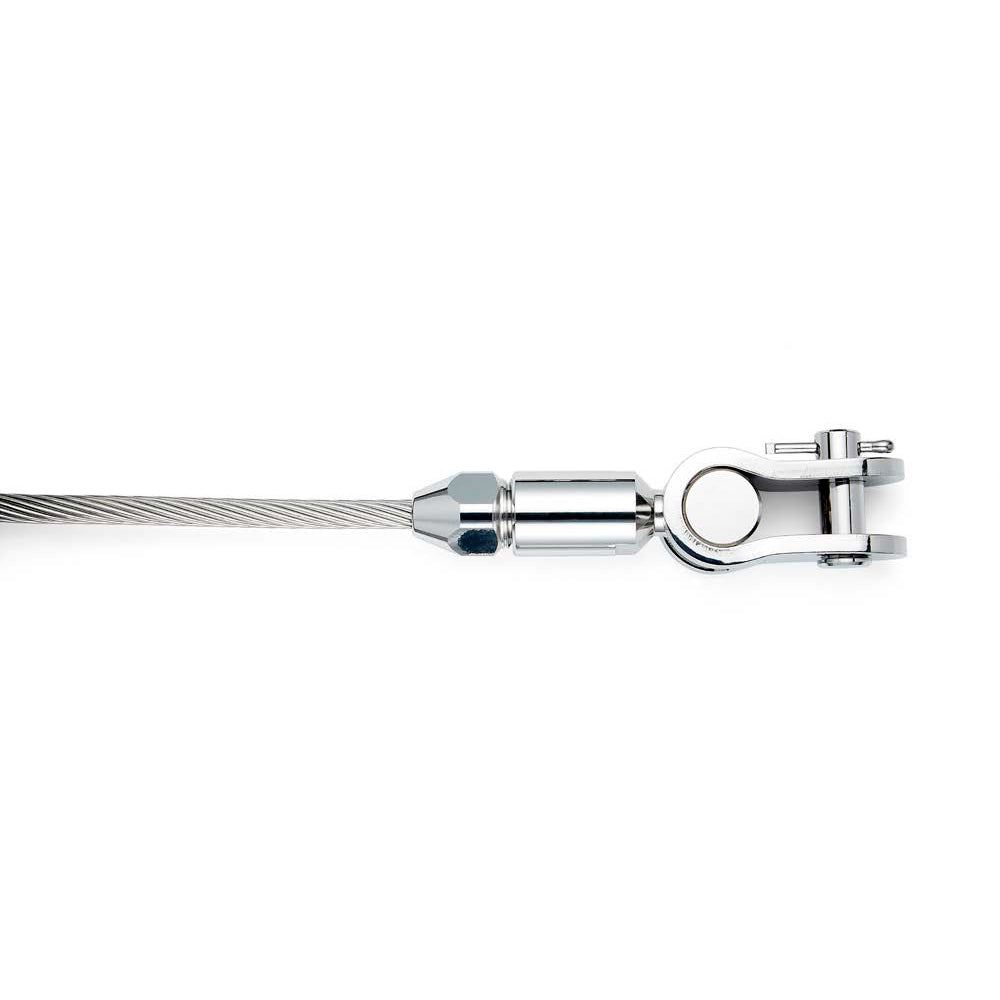

Sta-Lok Self Fit Terminal, the reusable alternative to swage.

Our Part # STA-050-05-516 | Sta-Lok Part # 050-05-5/16

Features

Fetaures:

• Only basic hand tools required.
• Quick and easy to install.
• No pre-measurement needed.
• Guaranteed stronger than wire rope.
• Manufactured from high specification 316 stainless steel.
• For right hand and left hand lay wire rope.
• Packed for 1x19 wire as standard.
• Different wedges are available to terminate 7 strand & compacted wire ropes.

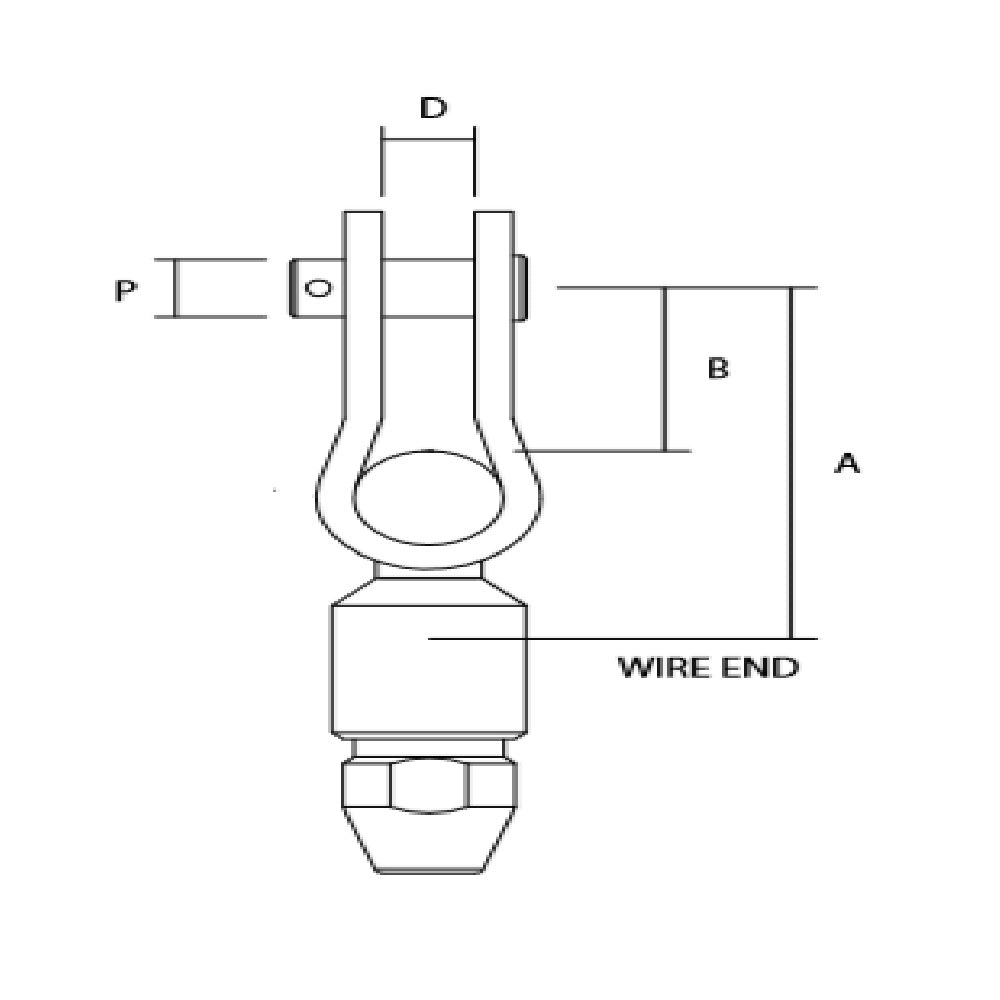

Technical Information

Wire: 5.00 mm
A: 48 mm / 1.890 in
B: 19 mm / 0.748 in
D: 8.4 mm / 0.453 in
P: 7.9 mm / 5/16 in
Weight: 0.100 kg / 0.220 lb
