Sta-Lok Standing Rigging - Swageless Stud (Right Hand) w/ Threads: 7/16 in - For Wire: 9/32 in
Sta-Lok Standing Rigging - Swageless Stud (Right Hand) w/ Threads: 7/16 in - For Wire: 9/32 in is backordered and will ship as soon as it is back in stock.
Description
Description

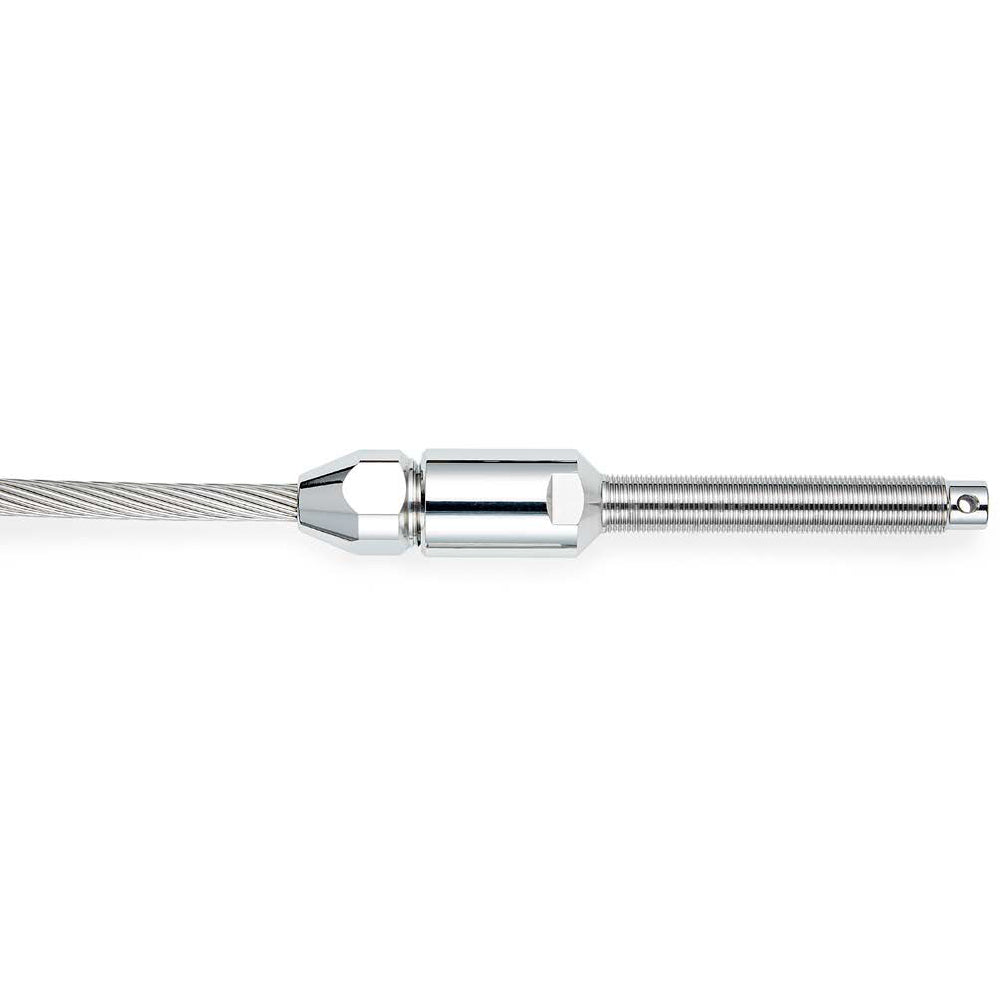

Sta-lok swageless DIY self-fit terminals are a simple mechanical method of terminating wire ropes.
Our Part # STA-036-07-716 | Sta-Lok Part # 036-07-7/16
Features
Features
Features:
- Sta-Lok Self Fit Terminal, the reusable alternative to swage.
- Only basic hand tools required.
- Quick and easy to install.
- No pre-measurement needed.
- Guaranteed stronger than wire rope.
- For right hand and left hand lay wire rope.
- Packed for 1x19 wire as standard.
- Manufactured from high specification 316 stainless steel.
- Different wedges are available to terminate 7 strand & compacted wire ropes.
- Supplied with split pin.
- Right hand thread only.

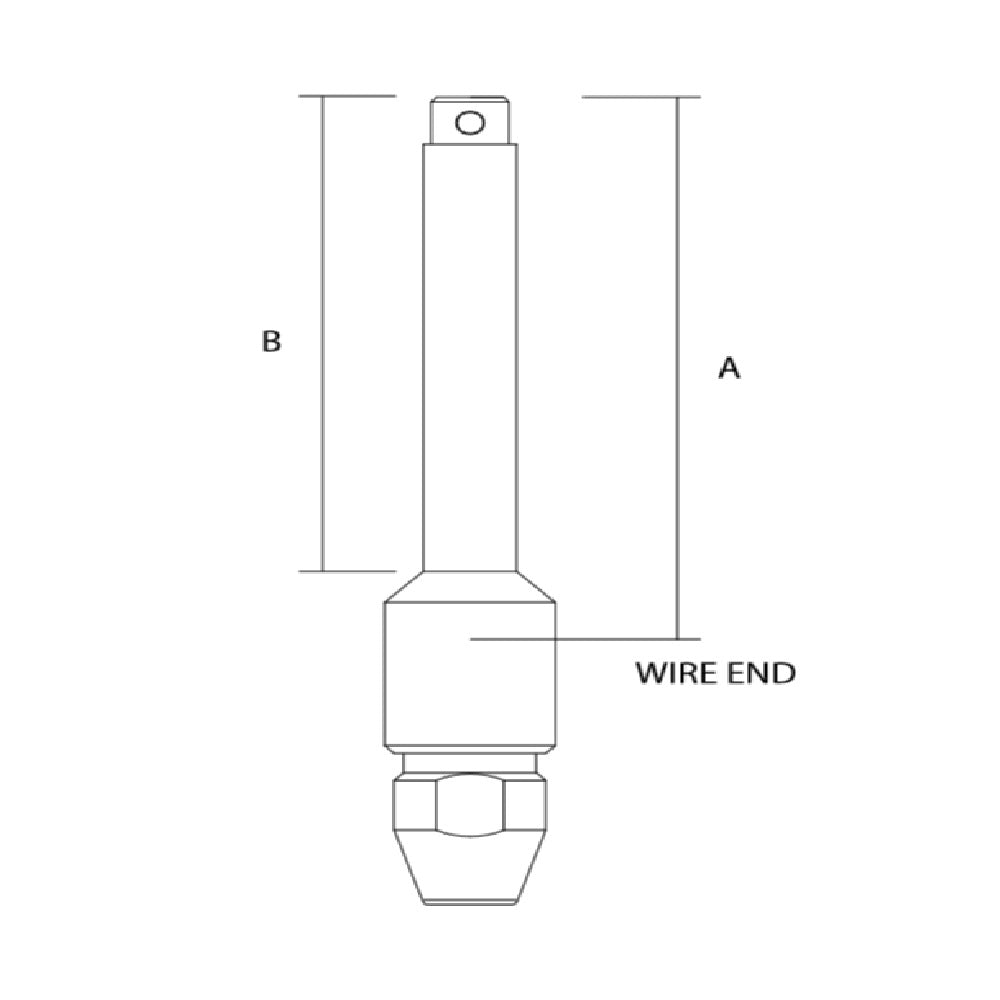

Technical Information
Technical Information
Wire: 7 mm / 9/32 in
A: 95 mm / 3.75 in
B: 74.6 mm / 2.937 in
Thread: 7/16 unf
Weight: 0.18 kg / 0.397 lb
