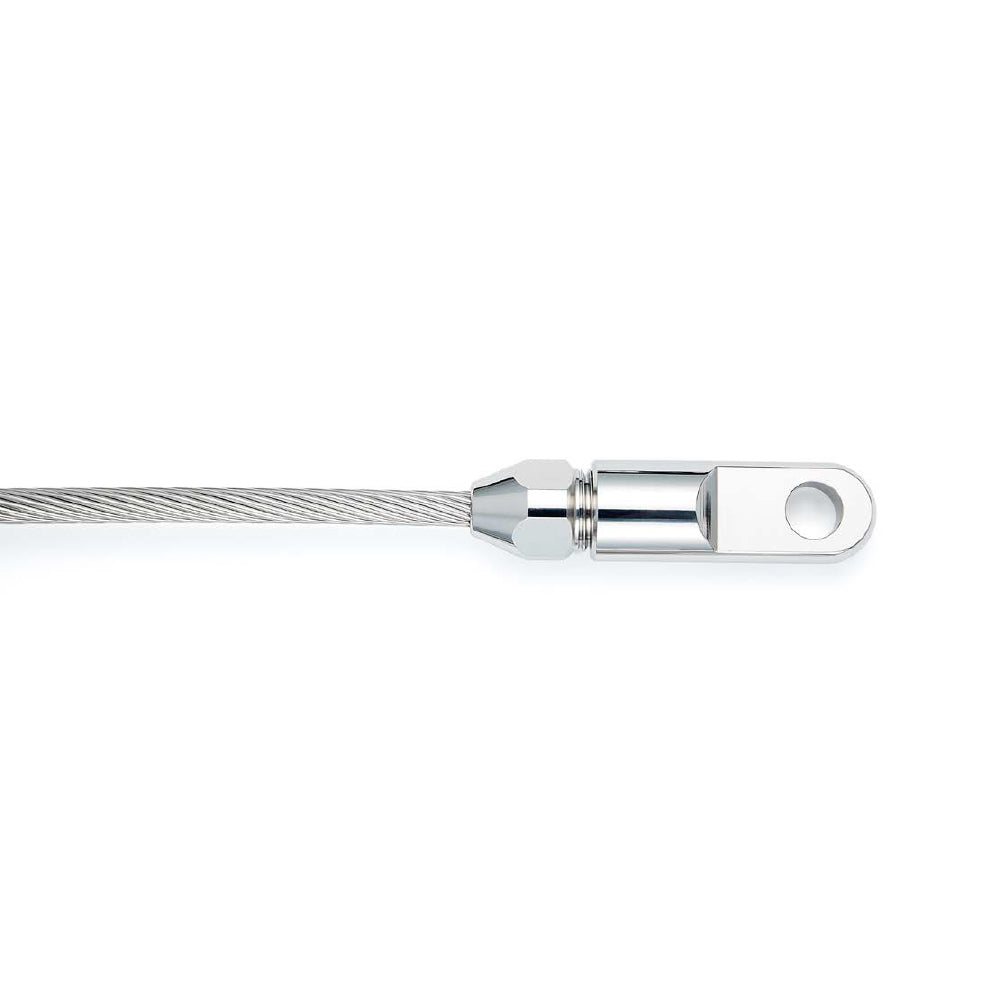

Sta-Lok Standing Rigging - Swageless Eye - For Wire: 12.0 mm & Pin: 3/4 in (19.05 mm)

Sta-lok swageless DIY self-fit terminals are a simple mechanical method of terminating wire ropes.

Our Part # STA-033-12 | Mfr. Part # 033-12

• Swageless self-fit mechanical fitting.
• Hand tools only required.
• Proven, trusted mechanical design.
• Onsite or Onboard assembly.
• For 1x19 wire as standard.
• Separate wedges available for 7x19 and Compact Strand.
• Check the chart for dimensions.
• Reusable N.B. with a new wedge.
• Supplied with wedges as standard.
• Efficient under both constant and variable shock loading.
• Stronger than the matching diameter wire rope.
• Totally reliable.
• Proven track record.
• Manufactured from 316 stainless steel grade 1.4401.
• Can be fitted on site or onboard using very simple hand tools.

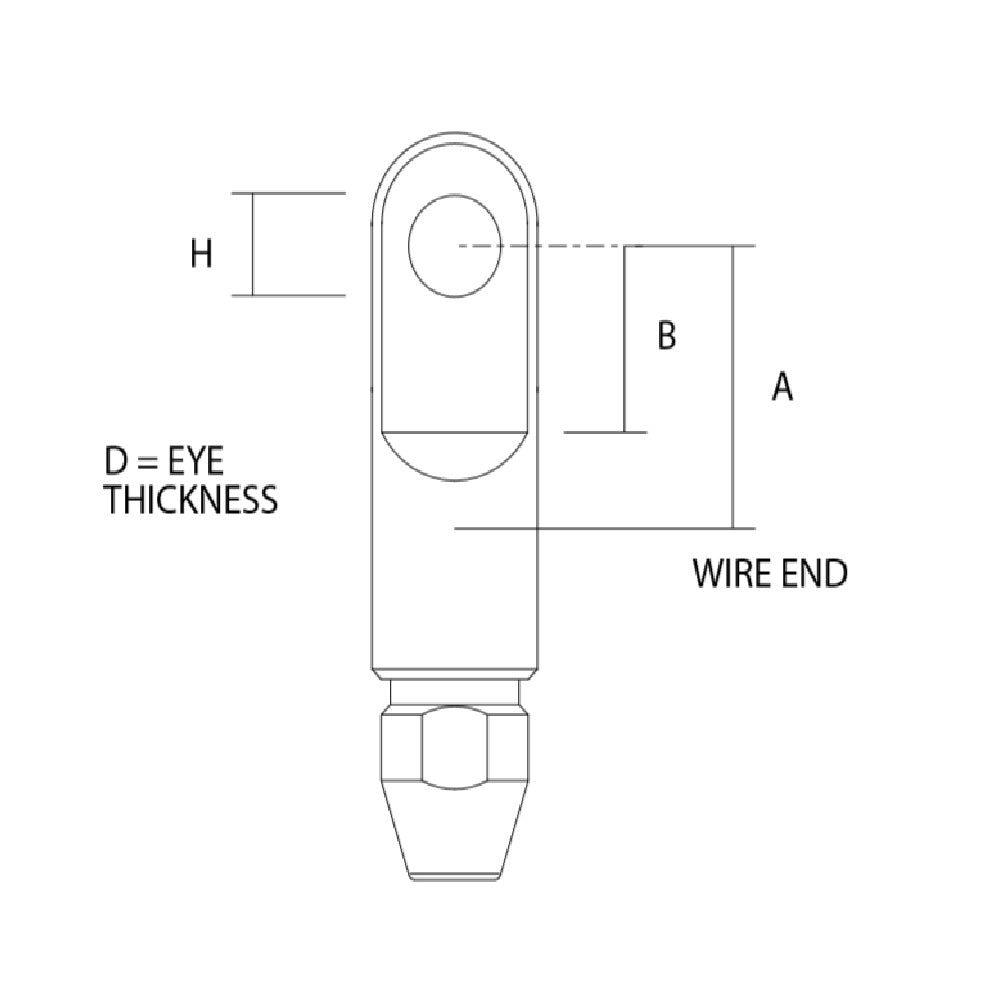

Wire: 12 mm
A: 42.9 mm
B: 33.3 mm
C: 22.5 mm
D: 19 mm
H: 19.5 mm
