Sea-Dog Latches - Hatch Handle Latch 3 1/8 x 2 11/16 in
Sea-Dog Latches - Hatch Handle Latch 3 1/8 x 2 11/16 in is backordered and will ship as soon as it is back in stock.
Description
Description

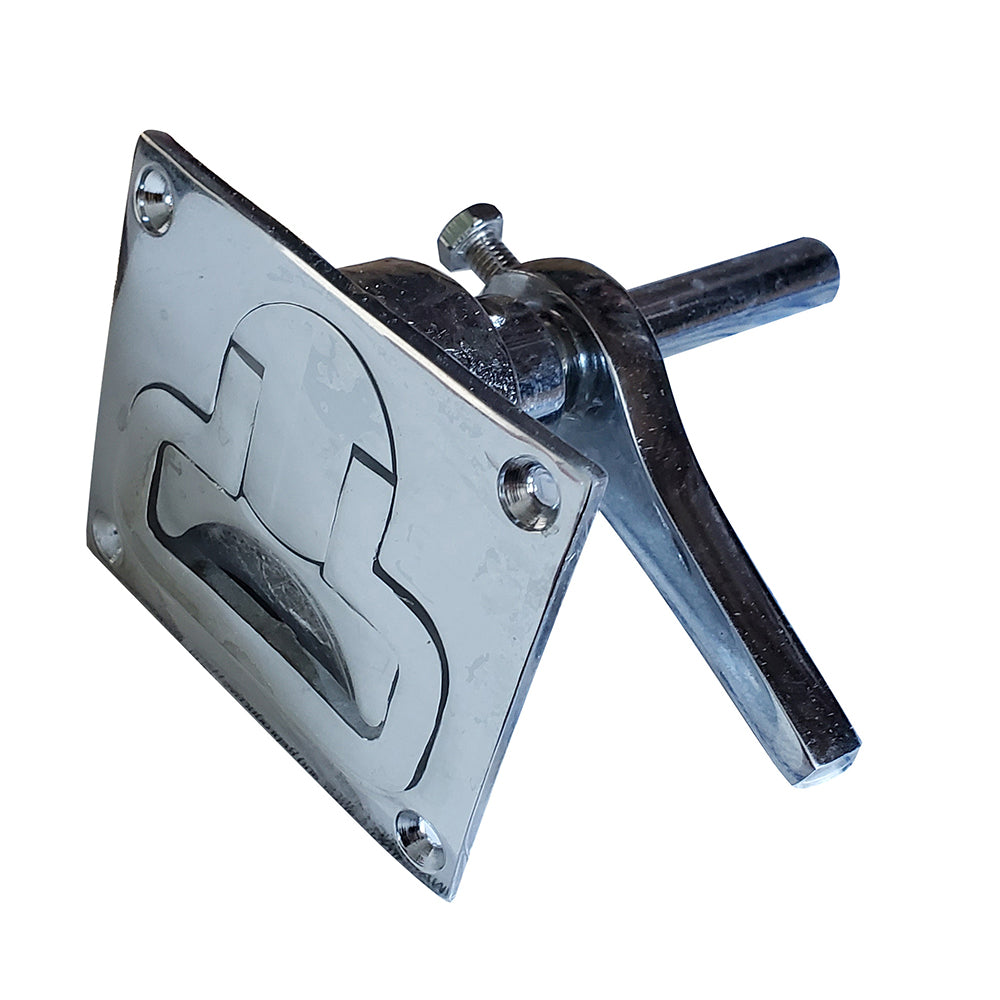

Hatch Handle Latch - 3-1/8" x 2-11/16"
Constructed of sand cast brass with a chrome plated finish. These Hatch Handle Latches are ideal for use on doors, hatches, lazarettes, and dock boxes. Handle pivots out to open hatches and lays flush when not in use for a clean appearance. Adjustable locking arm adds additional security. Installs with four #8 FH fasteners (not included). Once installed, the locking arm can be trimmed to length.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Our Part # SDG-222435-1 | Sea-Dog Part # 222435-1
Technical Information
Technical Information

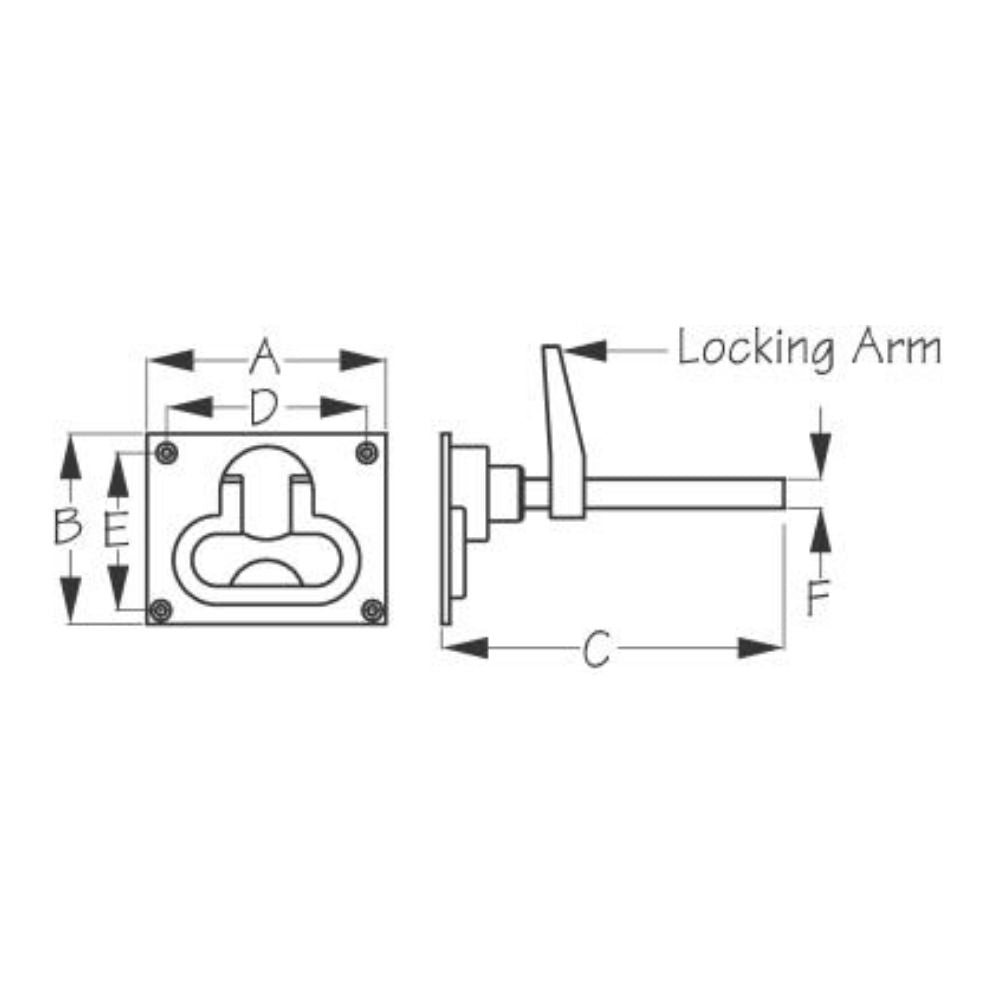

Description | Imperial | Metric |
---|---|---|
A | 3 1/8 in. | 79.37 mm. |
B | 2 11/16 in. | 68.26 mm. |
C | 4 5/16 in. | 109.53 mm. |
D | 2 5/8 in. | 66.67 mm. |
E | 2 1/16 in. | 52.38 mm. |
F | 1/2 in. | 12.00 mm. |
Finish | Chrome |
