Sea-Dog Locks - Cam Lock
Sea-Dog Locks - Cam Lock is backordered and will ship as soon as it is back in stock.
Description
Description
Cam Lock

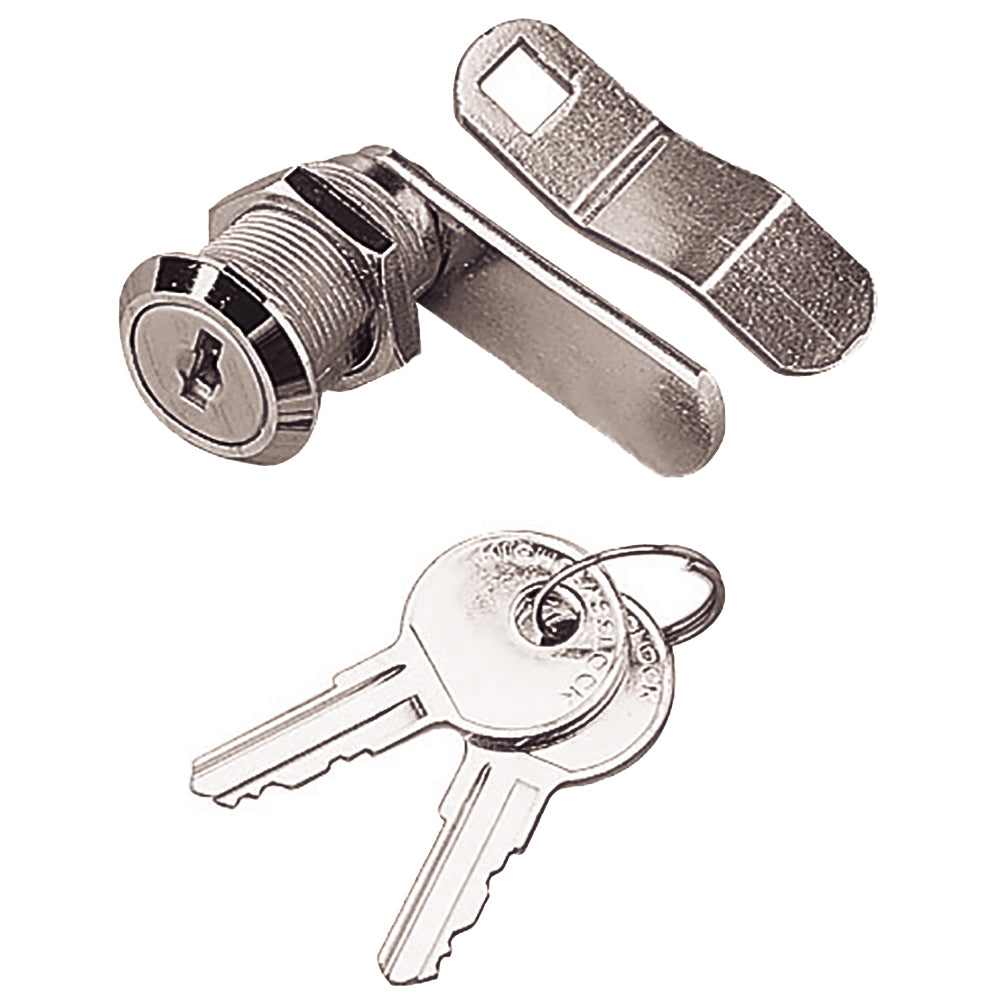

This cylindrical locking assembly features a pivot mechanism that will swivel to engage in a locked or open position merely by turning the cam assembly. Die cast zinc lock installs with back mounted 304 stainless steel nut. Comes complete with two locking arms for flush or offset installations and two matching keys. Keys are random so keyed alike cam locks cannot be guaranteed.
Our Part # SDG-221930-1 | Sea-Dog Part # 221930-1
Technical Information
Technical Information

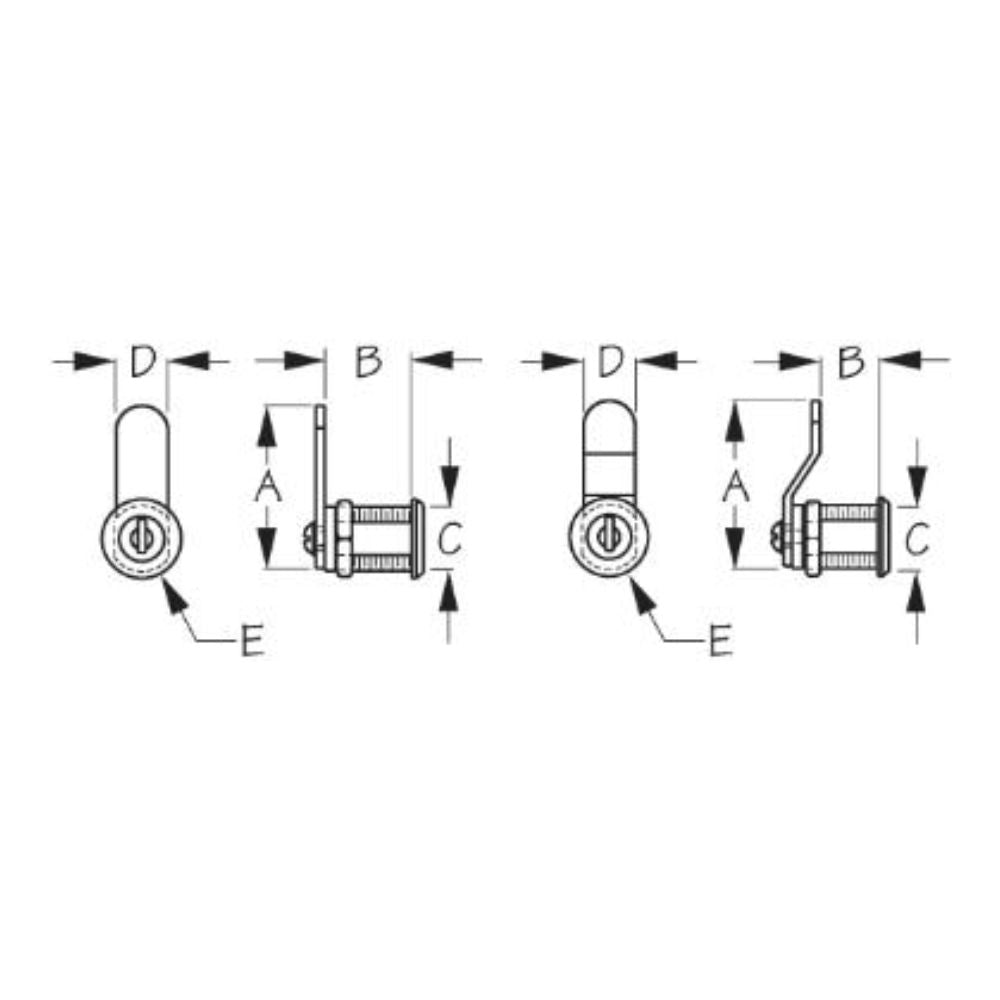

Description | Imperial | Metric |
---|---|---|
A (Locking Arm) | 1 9/16 - 1 7/8 in. | 40.00 - 47.62 mm. |
B | 1.00 / 11/16 in. | 25.00 - 17.46 mm. |
C | 3/4 in. | 19.05 mm. |
D | 1/2 in. | 12.00 mm. |
E | 15/16 in. | 23.81 mm. |
