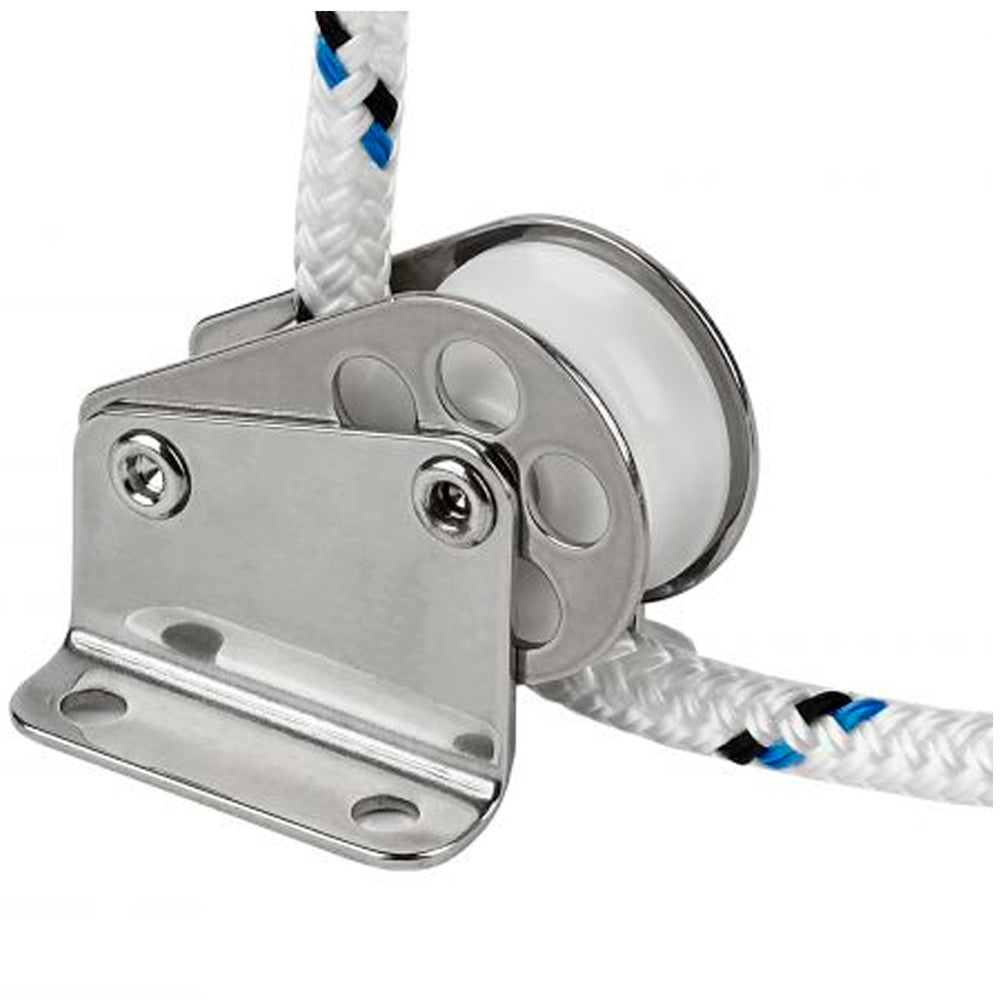

Schaefer Halyard Lift Series 2 - SS Single Block (Delrin)

Lead your halyards aft safery and smoothly with Schaefer's M-Series Lead blocks. Machined Aluminum cage desing follows high-load patterns for a very stronh yet light block. Aluminum sheave runs on a Nomex™/Teflon™ bearing and includes Delrin™ ball bearing keeping friction to a minimun.

Our Part # SCH0250 | Schaefer Part # 18295

Sheave Dia.: 27 mm (1 1/16 in)
Max Wire: 8 mm (5/16 in)
Jaw Opening: 35 mm (1 9/32 in)
Pin Dia.: 35 mm (1 13/32 in)
Length: 43 mm (1 11/16 in)
Width: 17 mm (21/32 in)
Overall Thickness (4): 5 mm (# 10 RH)
Fastener Spacing Length: 25 mm (1 in)
Fastener Spacing Across: 25 mm (1 in)
Safe Working Load: 410 kg (900 lb)
Weight: 62 g (2.2 oz)
