Ronstan | SKU: RONRF1510-0605 | Manuf. Code: RF1510-0605

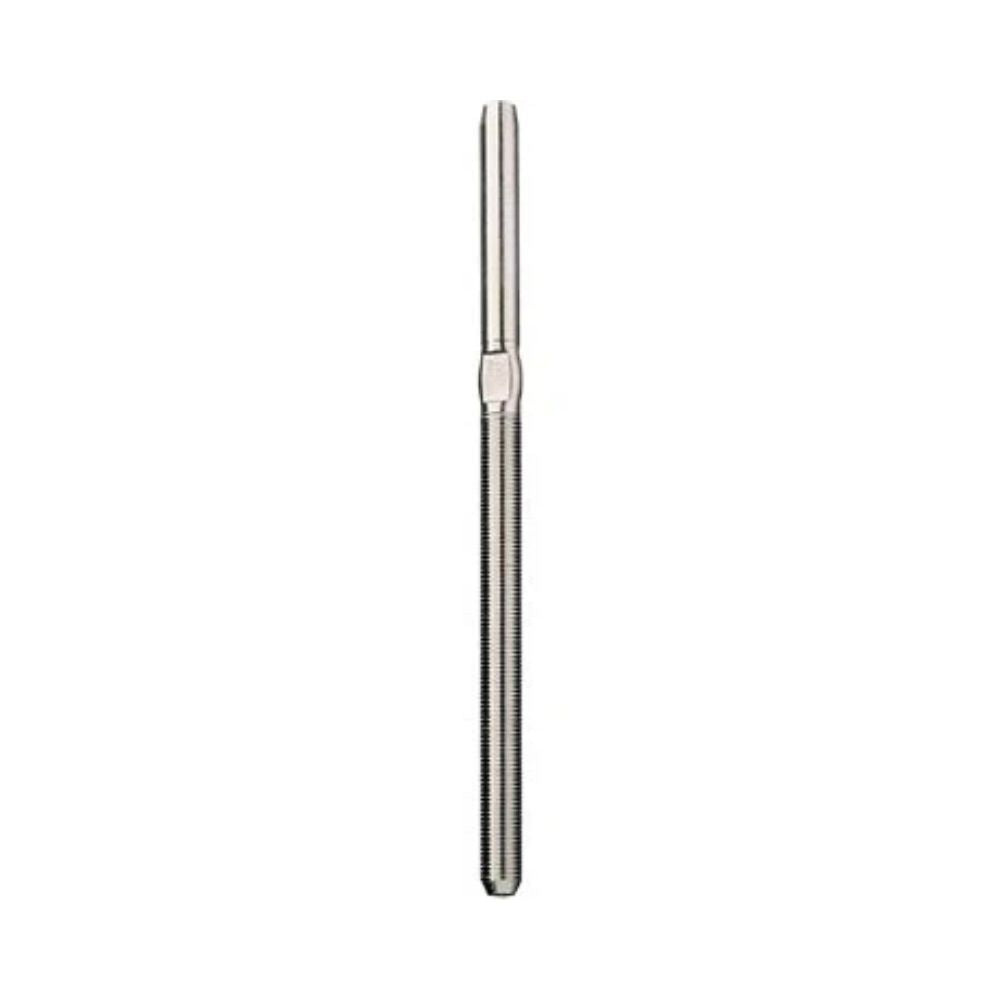

Ronstan Standing Rigging - Threaded Toggle - Wire: 3/16 in & Thread: 5/16 in

Name: Ronstan Standing Rigging - Threaded Toggle - Wire: 3/16 in & Thread: 5/16 in
Brand: Ronstan
SKU: RONRF1510-0605
Price: 11.95 USD
Availability: InStock

$11.95 USD ~~$14.06~~

Description

Threaded swage terminals (3/32 -1 in wire) have rolled right hand UNF threads for greater strength.

Applications:

For wire end termination to suit imperial wire.

Materials:

Grade 316 stainless steel.

Features:

Fine, rolled threads.
B.L.= 2360 (5190 lb) kg.

Our Part # RONRF1510-0605 | Ronstan Part # RF1510-0605

Features

Features:

Fine rolled threads.
B.L.=2360 kg (5190lb).

Technical Information

Weight: 56 g / 2 oz
Cable Diameter: 3/16 in
Suits Turnbuckle: RF1576-0404, RF1574-0404
Thread: 5/16 in UNF

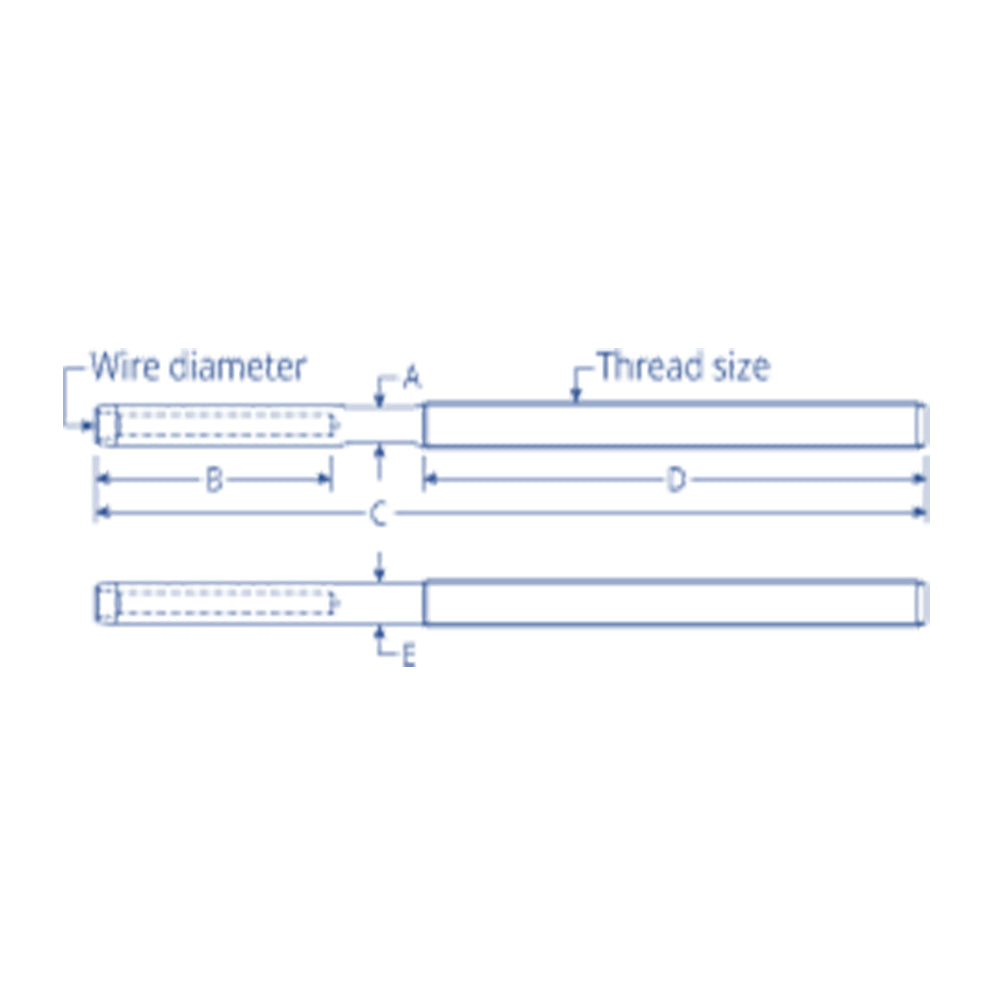

A: 7.5 mm / 5/16 in
B: 55 mm / 5/16 in
C: 164 mm / 6 1/2 in
D: 89 mm / 3 1/2 in
E: 9.1 mm / 3/8 in
