Ronstan Standing Rigging - Swage Toggle - Wire: 3/16 in & Pin: 0.25 in (6.4 mm)

For wire end termination allowing movement in two planes to minimise the fatiguing effects of cyclic action.

Applications:

• For wire end termination to suit imperial wires.

Materials:

• Grade 316 stainless steel.

Our Part # RONRF1506-0604 | Ronstan Part # RF1506-0604

Weight: 56 g / 2 oz
Cable Diameter: 4.7 mm / 3/16 in

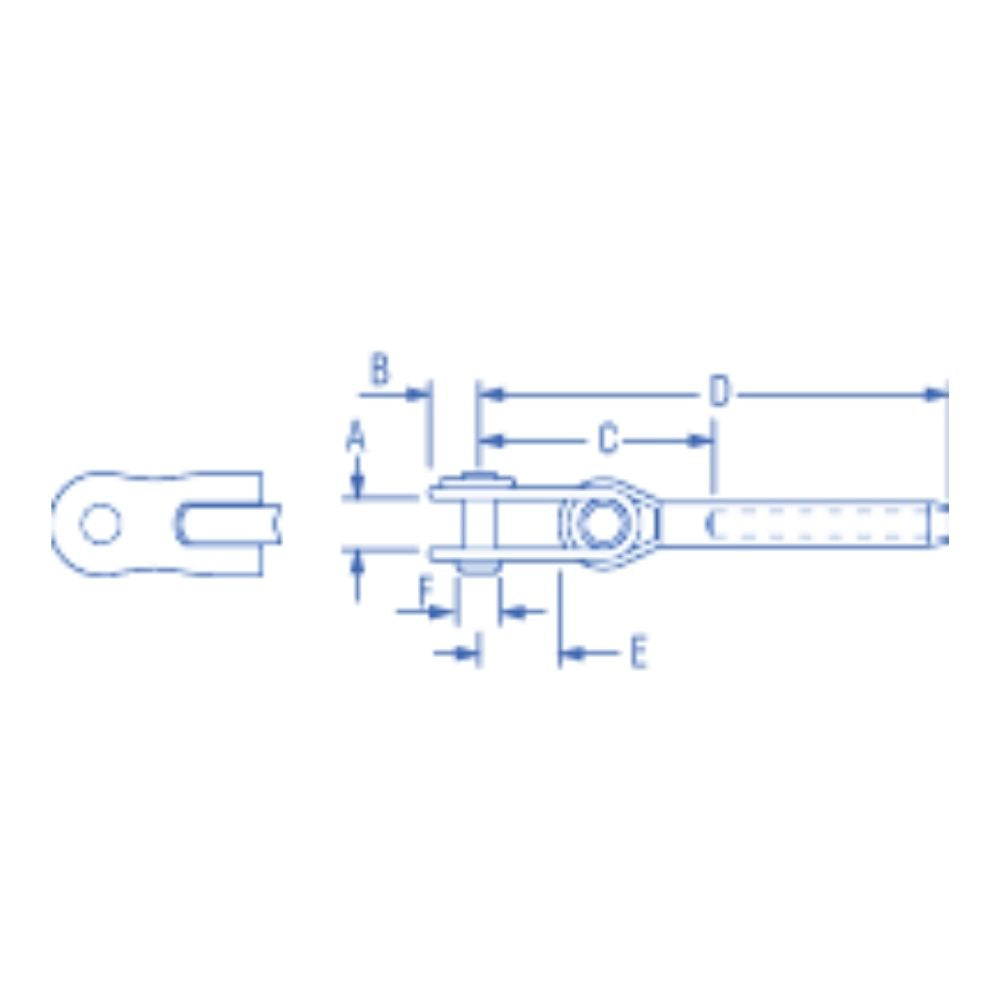

A: 7.8 mm / 5/16 in
B: 9.1 mm / 11/32 in
C: 37.1 mm / 1 15/32 in
D: 92.6 mm / 3 21/32 in
E: 16.5 mm / 21/32 in
F: 6.2 mm / 1/4 in
