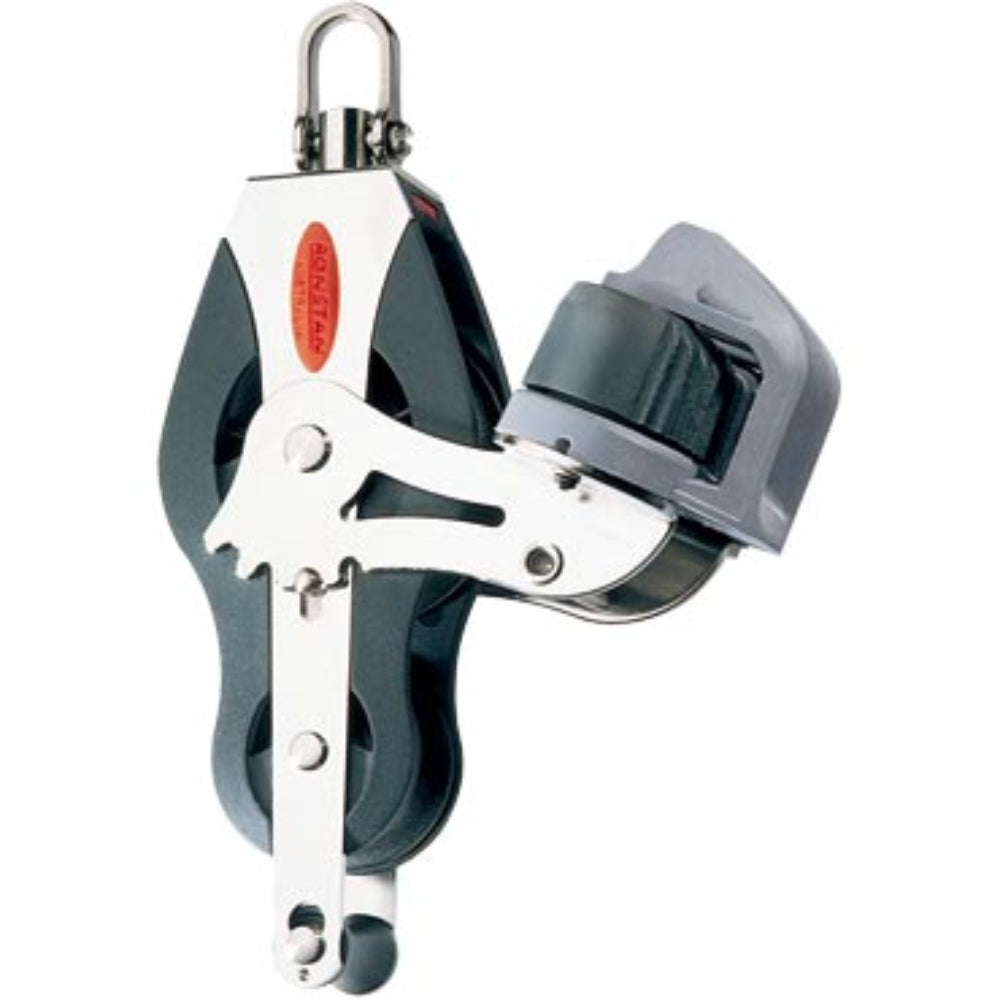

Ronstan Series 40 BB Block, Fiddle, Cleat

SKU: RON-RF40520  |  Manuf. Code: RF40520
$108.49 $92.22 USD

Description

Sheaves running on Acetal or Torlon ® ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required. Quick adjusting cleat arms require no tools to adjust and fix securely in position.

Our Part # RON-RF40520 | Ronstan Part # RF40520

Features

Features:

  • Low friction Acetal or Torlon bearing system
  • Lightweight
  • Cheek cut-outs for easy bearing maintenance
  • Captive Lock™ universal head
  • Slotted pin shackle eliminates fouled lines
  • Multi-position cleat arm

Technical Information


DescriptionImperialMetric
Sheave Ø1 4/7 + 1.00 in.40.00 + 24.00 mm.
Maximum Rope 1/3 in.8.00 mm.
Pin Ø1/5 in.5.00 mm.
Maximum Working Load771.75 lb.350.00 kg.
Breaking Load2205.00 lb.1000.00 kg.
Weight5.50 oz.156.00 gr.
