Description

The transducer is the heart of a sonar / fishfinder system. The device converts electrical pulses into acoustic energy or sound waves and transmits these waves into the water. When the transducer receives the reflections (echoes), the sonar / fishfinder module convertes the sound waves back to electrical pulses to interpret what is below the surface of the water.

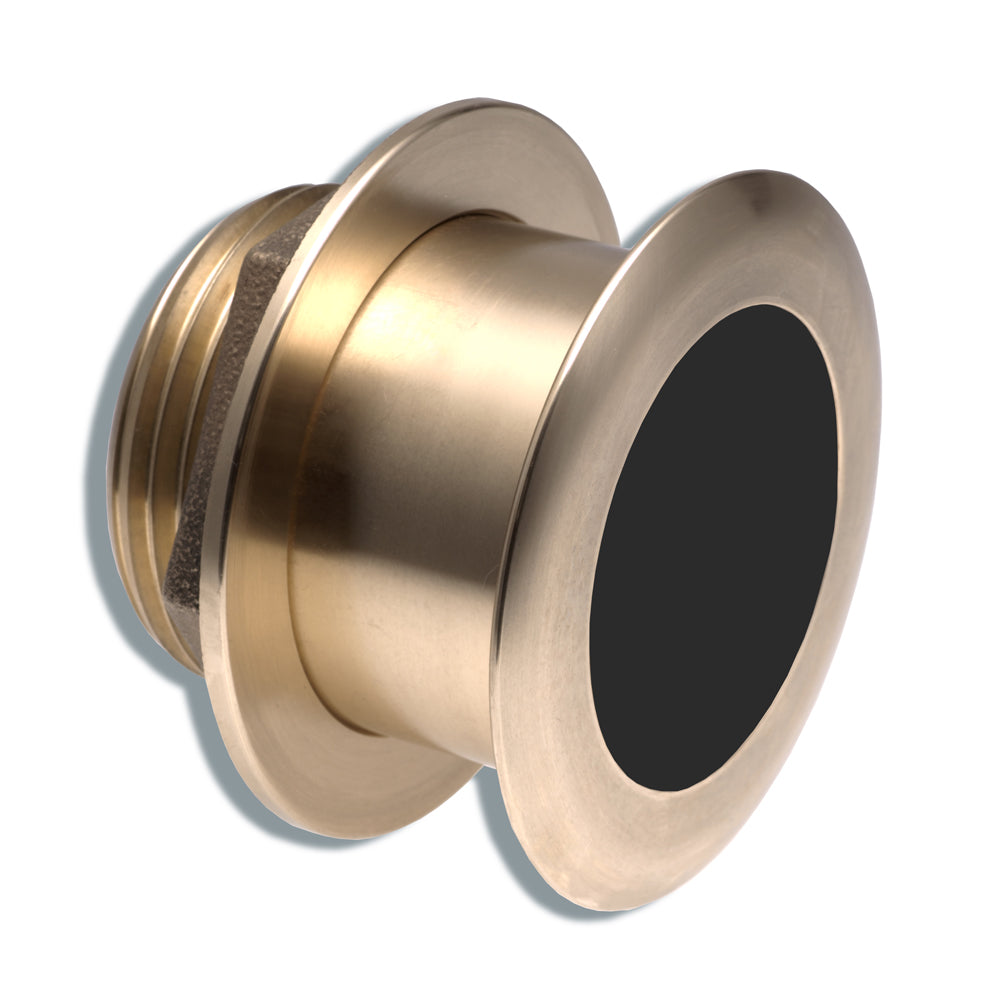

Our Part # RAY-A80048 | Raymarine Part # A80048

Features

Features

• Material: Bronze

• For use with CP450C or CP470 Chirp Sonar Module

• Power (RMS): 1Kw

• Max Depth(ft): 2,500

• Frequency (khZ): 40-60

• Beam Width(L/H): 32°-21°

• Records: Depth / Temperature

• Approved Hull Material: Fiberglass / Wood

• Cable Length (Ft/M): 33ft / 10M

• Supported Deadrise / Transom Angles: 16-24° Deadrise
