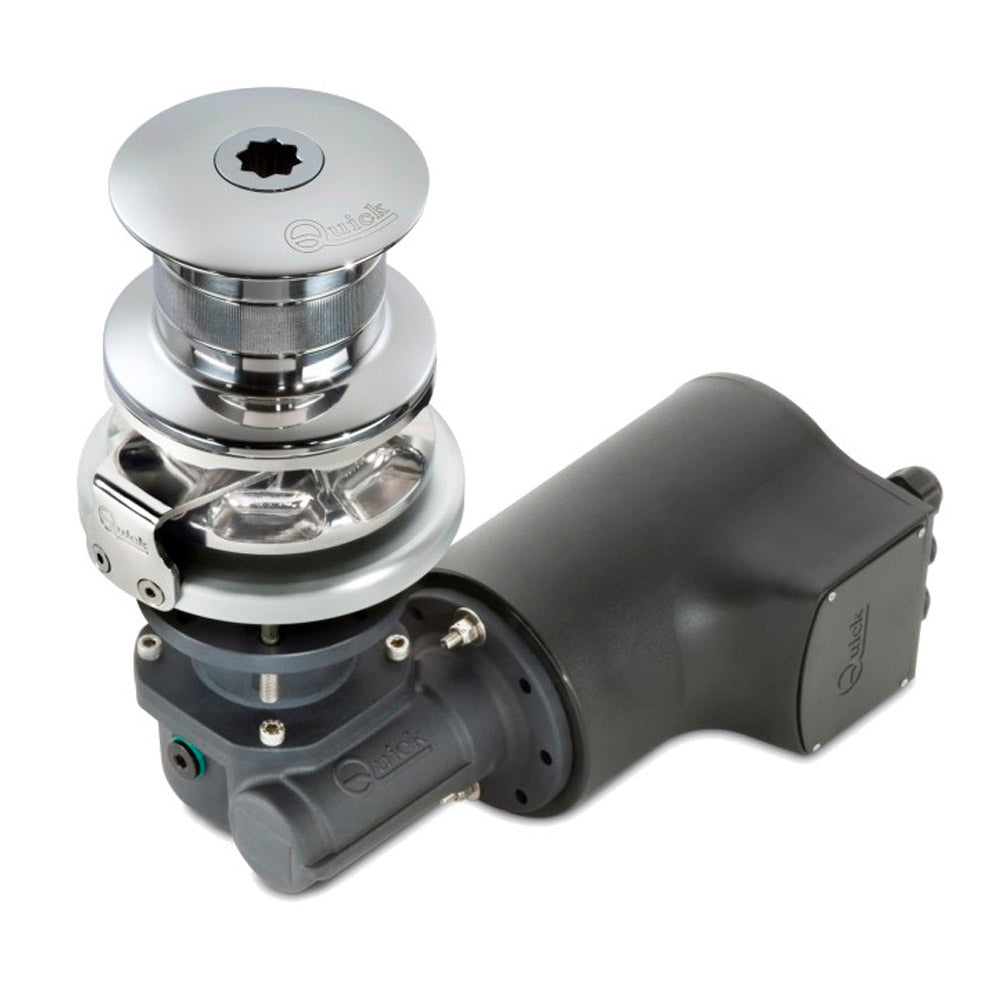

Quick Windlass - Rider R3 700W Vertical Electric 12V Gypsy + Drum 8mm - DIN 766

The Rider is a vertical application windlass perfect for boats with limited deck space. This unit is composed of anodized aluminum which is a durable element when dealing with harsh marine environments. This unit comes in different variations such as with or without the drum capstan for rope retrieval and various gypsy sizes for chain retrieval. Additional features include an IP67 watertight motor, anodized aluminum gearbox, and chain stopper. This unit is sold complete with the windlass, solenoid unit, clutch handle and mounting hardware.

Our Part # QCKFSR00712D00A00 | Quick Part # FSR00712D008A00

Standard Version: Rider 700 / 700 D
Motor Power: 700 W
Motor Supply Voltage: 12 V / 24 V
Maximum Pull: 1874 lb / 1874 lb
Maximum Working Load: 551 lb / 661 lb
Working Load: 176 lb / 220 lb
Current absorbtion @ working load (1): 90 A / 55 A
Maximum chain speed (2): 90 A / 55 A
Maximum chain speed @ working load (2): 48 ft/min / 49 ft/min
35.3 lb / 35.3 lb
Weight - Rider D (with drum): 39.7 lb / 39.7 lb
For Boats from 16-50 Feet: 7 - 10 mm (23 - 33 ft)
