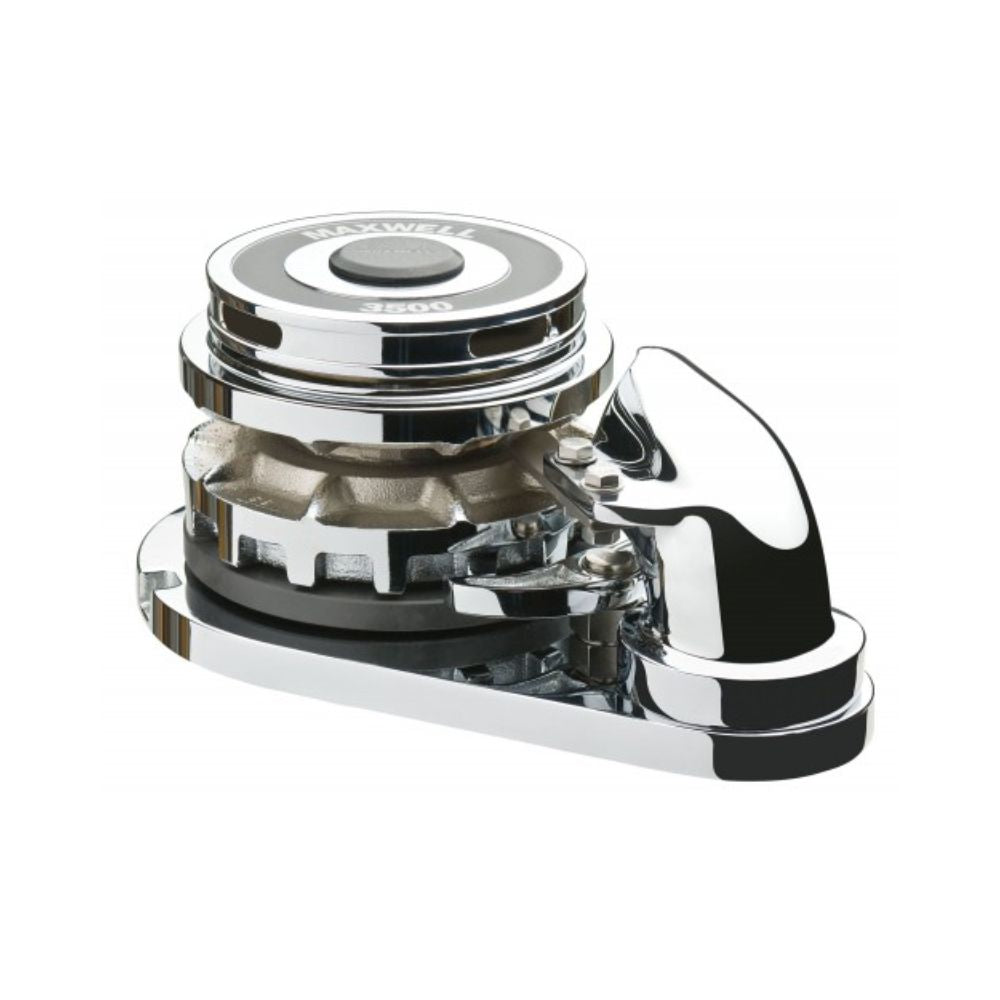

Maxwell Windlass - VWCLP 3500 1200W Vertical Electric 24V Gypsy Only 3/8" - G4 & G3
Maxwell Windlass - VWCLP 3500 1200W Vertical Electric 24V Gypsy Only 3/8" - G4 & G3 is backordered and will ship as soon as it is back in stock.
Description
Description
The Maxwell Windlass - VWCLP 3500 1200W Vertical Electric 24V Gypsy Only 3/8" - G4 &G3 #VWCLP350024V058 is perfect for smooth and automatic vertical handling of chain-only anchor rodes, making it a reliable choice for avid sailors. It features a separate capstan for easy retrieval of a secondary rope and chain rode, or to lend a hand during docking. This windlass effortlessly combines efficiency with practicality on any voyage.
Benefits
- Automatic vertical handling for chain-only anchor rodes
- Independent capstan for secondary rope and chain rode retrieval
- Assists with docking procedures
- 1200W power, operating at 24V
- Compatible with 3/8" G4 &G3 chain
Crafted with durable materials to withstand marine environments, this vertical electric windlass boasts a powerful 1200W motor running on 24V. It is designed to handle 3/8" G4 and G3 chains, ensuring compatibility with your existing setup. Ideal for those who need a reliable and efficient anchor handling system.
Our Part # MAXVWCLP350024V058 | Mfr. Part # VWCLP350024V058
Features
Features
- Fully automatic single or dual direction chain wheel operation.
- High-quality finish on above deck components, manufactured from marine grade 316 stainless steel and chromed bronze, for long term durability.
- Integral chain pipe and stripper are aligned for virtually jam-free operation providing automatic feed of chain into and out of the anchor locker.
- Port and starboard chain pipes for twin installations (Sizes 2500 and above only).
- Cone-type brake/clutch mechanism permits manual free fall anchoring. Cone clutches, unlike dog clutches, provide smooth progressive engagement ensuring safe and precise operator control.
- Chainwheel locking pawl.
- Clutch disengagement of the chainwheel enables independent rope hauling from any direction, using the Max-grip™ snag-free warping drum for positive control of all ropes.
- Simple through deck installation by modular design and precise alignment of gearbox to the topworks utilising marine-grade stainless steel bolts.
- Anodized aluminium gearbox and spacer tube on all models.
- Heavy duty, dual direction motor, designed for marine winches.
- Low Profile configurations (no warping drum) are available.
Includes:
- Windlass.
- On/Off breaker panel.
- Reversing solenoid.
- 2 Black Footswitches.
- Up/Down switch.
- Handle.
Knowledge Base
Knowledge Base
Click on the following technical articles to find relevant information about Windlasses:
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Maximum Pull/Lift | 3500.00 lb. | 1590.00 kg. |
Static Hold | 4840.00 lb. | 2200.00 kg. |
Chain Short Link | 3/8 - 1/2 in. | 10.00 - 13.00 mm. |
Line Speed (Normal Working) | 50.00 ft./min. | 15.00 m./min. |
Power Supply (DC) | 12 or 24 V. | |
Motor (Watts) | 1200 W. | |
Net Weight - DC | 106.00 lb. | 48.00 kg. |
Hydraulic Pressure | 2000.00 psi. | 138.00 bar. |
Hydraulic Flow | 11.00 Usgal./min. | 42.00 l./min. |
Net Weight (Hyd) | 88.00 lb. | 40.00 kg. |
