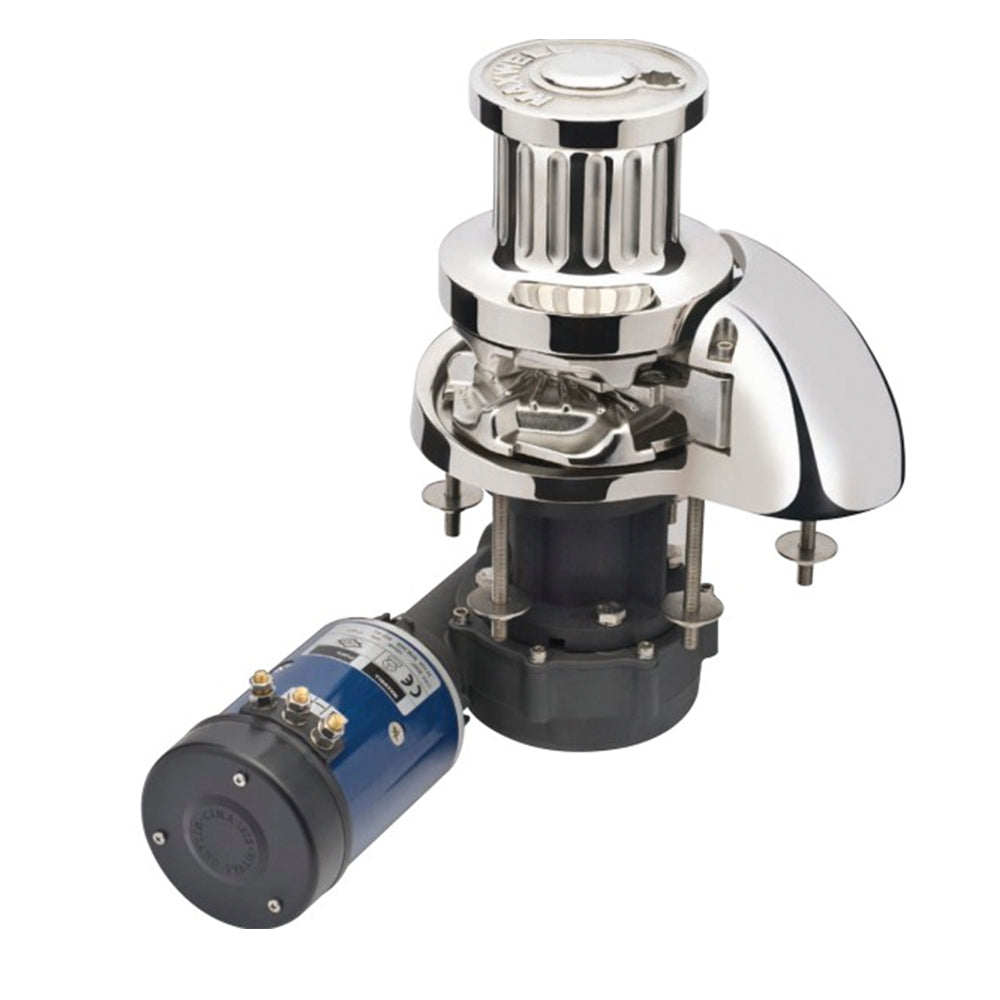

Maxwell Windlass - RC 12-10 Extra Deck Clearance 1200W Vertical Electric 12V Gypsy + Drum 3/8" - BBB

SKU: MAXRC1210CAP12VEDC  |  Manuf. Code: RC1210CAP12VEDC
$5,823.35 $4,658.68 USD

Description

The RC12-10 Extra Deck Clearance 1200W Vertical Electric 12V Gypsy + Drum 3/8" - BBB #RC1210CAP12VEDC is a remarkable addition to the Maxwell brand lineup, perfect for those who appreciate innovation and reliability in their sailing equipment. Its unique Wave Design™ chainwheel smoothly guides the rope and chain, offering exceptional handling during anchor retrieval. Designed for durability and efficiency, this windlass ensures a secure hold and extended life for your anchor rode.

Benefits

  • Innovative Wave Design™ chainwheel for improved rope and chain handling
  • Angled outer ribs for smooth rope and chain guidance
  • Undulating inner ribs for a secure grip and longevity of the rope
  • Patented design ensures superior performance compared to traditional methods

Crafted with advanced engineering, this windlass is ideal for sailing enthusiasts seeking high-quality and dependable sailing gear. The Maxwell brand is synonymous with excellence, offering products that are built to last and enhance your maritime adventures. Specifically suited for boats needing extra deck clearance, this windlass provides seamless compatibility with 3/8" - BBB chains.

Our Part # MAXRC1210CAP12VEDC | Mfr. Part # RC1210CAP12VEDC

Features

  • The RC12 fully automatic windlass series is designed to effortlessly retrieve and deploy 10mm (3/8 in) short link chain and 16mm (5/8 in) to 20mm (3/4 in) three strand or 8-Plait rope (RC12-10) and 12mm/13mm (1/2 in) short link chain and 20mm (3/4 in) three strand or 8-Plait rope (RC12-12).
  • A sleek, Low Profile version and a fluted stainless steel capstan drum version, are available.
  • The all new RC12 is packed with patented innovative features combined with Maxwell's traditionally classic aesthetics, but reflecting the modern form follows function of the highly successful RC6, RC8 and RC10 series windlasses.
  • The elegantly designed deckplate and chainpipe cover are manufactured in polished marine-grade 316 stainless steel, as are the heavy duty pressure arm, stripper, chainwheel and fluted capstan drum.
  • The huge, through deck hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker.
  • Double cone-type brake/clutch mechanism permits Free Fall anchoring.
  • The RC12 features Maxwell's revolutionary and patented new Wave Design-chainwheel.
  • Emergency manual retrieval is made simple and easy with Maxwell's unique Active Latch Ratchet System operation.
  • The Maxwell-designed, all new and innovative black, hard anodised gearbox provides numerous advantages: Fast and easy windlass installation, more corrosion resistant, easy to maintain and service, takes up less room in the anchor locker.

Includes:

  • Windlass.
  • On/Off breaker panel.
  • Reversing solenoid.
  • Up/Down panel switch.
  • Handle.

Knowledge Base

Click on the following technical articles to find relevant information about Windlasses:

Technical Information


DescriptionImperialMetric
Maximum Pull/Lift2500.00 lb.1134.00 kg.
Static Hold4840.00 lb.2200.00 kg.
Chain Short Link3/8 in.10.00 / 11.00 mm.
Rope Size (Nylon)5/8 - 3/4 in.16.00 - 20.00 mm.
Chain Speed (Anchor Retrieval)65.00 ft./min.20.00 m./min.
Rope Speed (Anchor Retrieval)56.00 ft./min.17.00 m./min.
Power Supply (DC)12 or 24 V.
Motor Power1200 W.
Net Weight - DC (Capstan version)71.00 lb.32.00 kg.
Net Weight - DC (Low Profile Version)64.00 lb.29.00 kg.
Hydraulic Pressure2000.00 PSI.138.00 bar.
Hydraulic Flow11.00 Usgal./min.42.00 l./min.
Net Weight (Low Profile)51.00 lb.23.00 kg.
Net Weight (Capstan version)57.00 lb.26.00 kg.
