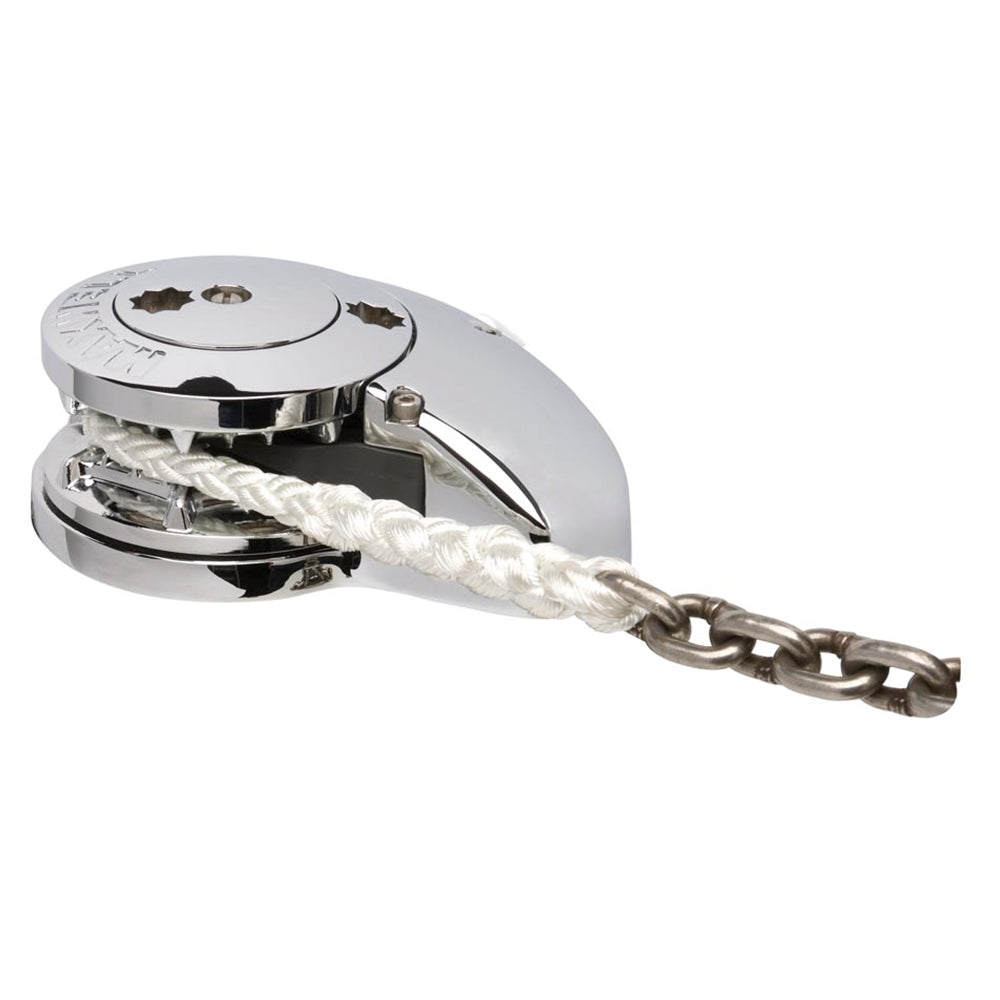

Maxwell Windlass - RC 10-10 1.60 HP Vertical Hydraulic Gypsy Only 3/8" - BBB
Maxwell Windlass - RC 10-10 1.60 HP Vertical Hydraulic Gypsy Only 3/8" - BBB is backordered and will ship as soon as it is back in stock.
Description
Description
The Maxwell Windlass #RC1010HYD is perfect for those who want smooth and reliable anchor retrieval. It's designed with an innovative Wave Design™ chainwheel that ensures your rope and chain are handled with care, extending the life of your anchor rode. This model works seamlessly with 3/8" BBB chains, making it a smart choice for serious sailors.
Benefits
- Innovative Wave Design™ chainwheel for superior rope grip
- Available in capstan and low profile versions
- Enhances the longevity of your anchor rode
The Maxwell Windlass RC 10-10 1.60 HP Vertical Hydraulic Gypsy Only is crafted to fit 3/8" BBB chains. Its advanced chainwheel design provides exceptional handling, minimizing wear on the rope. This windlass is ideal for boats requiring dependable anchor retrieval technology.
Our Part # MAXRC1010HYD | Mfr. Part # RC1010HYD
Features
Features
- The combined stainless steel and chromed bronze RC10 fully automatic windlass series is designed to effortlessly retrieve and deploy 8mm (5/16 in) and 10mm (3/8 in) short link chain and 14mm and 16mm (5/8 in) three strand or 8-brait (plait) rope.
- A sleek, Low Profile version and a fluted stainless steel capstan drum version, are available.
- Simple two piece installation saves time and money and allows easy retrofitting without disassembly of the windlass. Unique spacer tube design allows installation through virtually any deck thickness and the multiple mounting positions and self aligning gearbox ensure optimal location of gearbox and motor in virtually all installation situations.
- Full disassembly capability of the topworks utilising only the handle provided and an Allen key.
- The RC10 is manufactured from marine-grade 316 stainless steel and chromed bronze for long term durability.
- In combination with a heavy duty, large wire diameter, stainless steel pre-loaded spring, the pressure arm pivots on a trouble free bearing, thereby exerting maximum control pressure on the rode and splice.
- The RC10 works just as effectively with all chain rodes for those who desire a Low Profile Windlass.
- Huge, through deck hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker.
- Cone type clutch/brake mechanism permits manual, Free Fall anchoring.
- Sealed oil bath and marine-grade hard anodised, alloy gearbox provides maximum output via a precision worm and worm wheel.
Includes:
- Windlass.
- On/Off breaker panel.
- Reversing solenoid.
- Up/Down panel switch.
- Handle.
Knowledge Base
Knowledge Base
Click on the following technical articles to find relevant information about Windlasses:
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Maximum Pull/Lift | 1870.00 lb. | 850.00 kg. |
Static Hold | 3300.00 lb. | 1500.00 kg. |
Chain Short Link | 3/8 in. | 10.00 mm. |
Rope Size (Nylon) | 5/8 in. | 16.00 mm. |
Chain Speed (Anchor Retrieval) | 79.00 ft./min. | 24.00 m./min. |
Rope Speed (Anchor Retrieval) | 65.00 ft./min. | 20.00 m./min. |
Motor Power | 1000 W. | |
Net Weight - Hyd | 44.00 lb. | 20.00 kg. |
