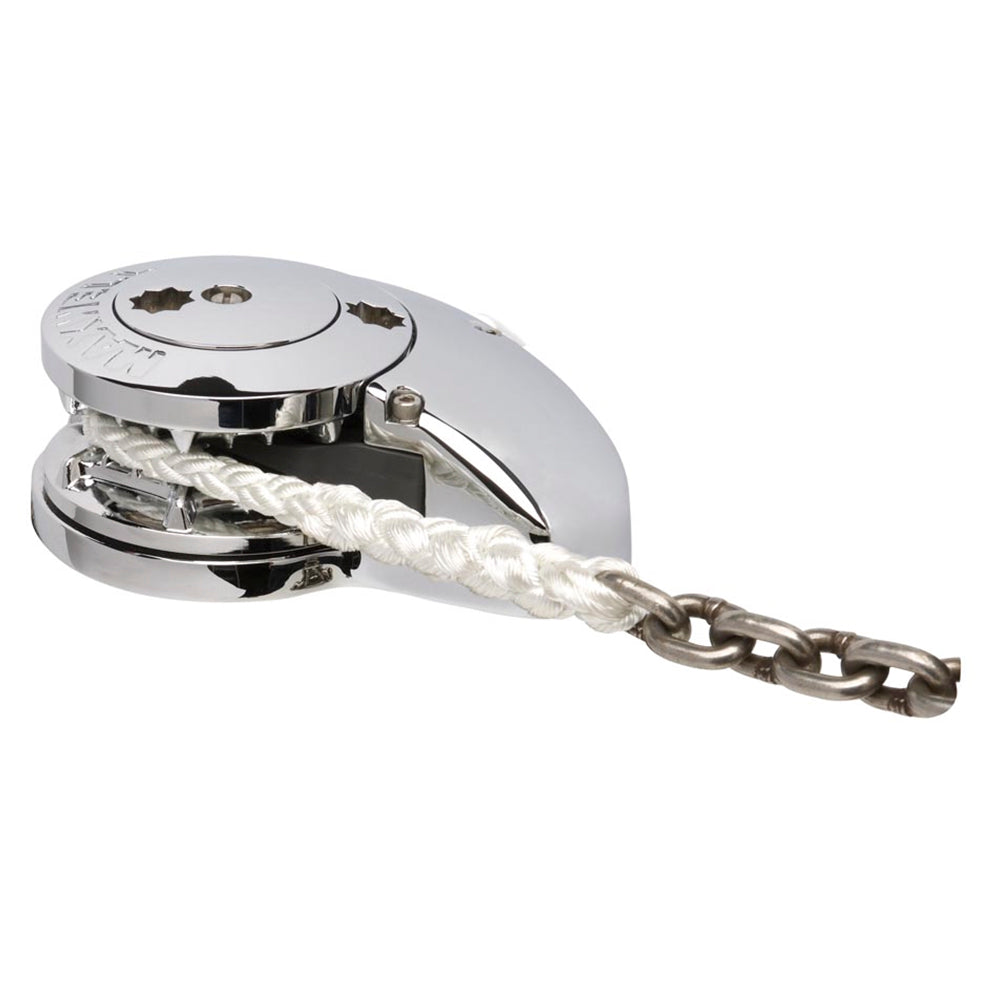

Maxwell Windlass - RC 10-10 1000W Vertical Electric 12V Gypsy Only 3/8" - BBB

SKU: MAXRC101012V  |  Manuf. Code: RC101012V
$3,438.05 $2,750.44 USD

Description

The RC 10-10 1000W Vertical Electric 12V Gypsy Only 3/8" - BBB #RC101012V is a robust anchor windlass designed for seamless and efficient anchor retrieval. Its innovative Wave Design™ chainwheel provides superior rope handling and secure anchoring, making it a reliable choice for any sailing enthusiast. With a user-friendly design, this windlass is both effective and gentle on your anchor rode, ensuring longevity and performance.

Benefits

  • Innovative Wave Design™ chainwheel for improved rope and chain handling
  • Vertical electric windlass with 1000W power
  • Compatible with 3/8" BBB chain
  • Operates on a 12V system
  • Available in both capstan and low profile versions

This anchor windlass is crafted with materials that ensure durability and reliability on any sailing adventure. It operates on a 12V power system and offers 1000W of strength, making it suitable for various types of vessels. The windlass is designed specifically for use with 3/8" BBB chain, allowing for a secure and steady anchoring experience.

Our Part # MAXRC101012V | Mfr. Part # RC101012V

Features

  • The combined stainless steel and chromed bronze RC10 fully automatic windlass series is designed to effortlessly retrieve and deploy 8mm (5/16 in) and 10mm (3/8 in) short link chain and 14mm and 16mm (5/8 in) three strand or 8-brait (plait) rope.
  • A sleek, Low Profile version and a fluted stainless steel capstan drum version, are available.
  • Simple two piece installation saves time and money and allows easy retrofitting without disassembly of the windlass. Unique spacer tube design allows installation through virtually any deck thickness and the multiple mounting positions and self aligning gearbox ensure optimal location of gearbox and motor in virtually all installation situations.
  • Full disassembly capability of the topworks utilising only the handle provided and an Allen key.
  • The RC10 is manufactured from marine-grade 316 stainless steel and chromed bronze for long term durability.
  • In combination with a heavy duty, large wire diameter, stainless steel pre-loaded spring, the pressure arm pivots on a trouble free bearing, thereby exerting maximum control pressure on the rode and splice.
  • The RC10 works just as effectively with all chain rodes for those who desire a Low Profile Windlass.
  • Huge, through deck hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker.
  • Cone type clutch/brake mechanism permits manual, Free Fall anchoring.
  • Sealed oil bath and marine-grade hard anodised, alloy gearbox provides maximum output via a precision worm and worm wheel.

Includes:

  • Windlass.
  • On/Off breaker panel.
  • Reversing solenoid.
  • Up/Down panel switch.
  • Handle.

Knowledge Base

Click on the following technical articles to find relevant information about Windlasses:

Technical Information


DescriptionImperialMetric
Maximum Pull/Lift1870.00 lb.850.00 kg.
Static Hold3300.00 lb.1500.00 kg.
Chain Short Link3/8 in.10.00 mm.
Rope Size (Nylon)5/8 in.16.00 mm.
Chain Speed (Anchor Retrieval)79.00 ft./min.24.00 m./min.
Rope Speed (Anchor Retrieval)65.00 ft./min.20.00 m./min.
Power Supply (DC)12 V.
Motor Power1000 W.
Net Weight - Hyd44.00 lb.20.00 kg.
