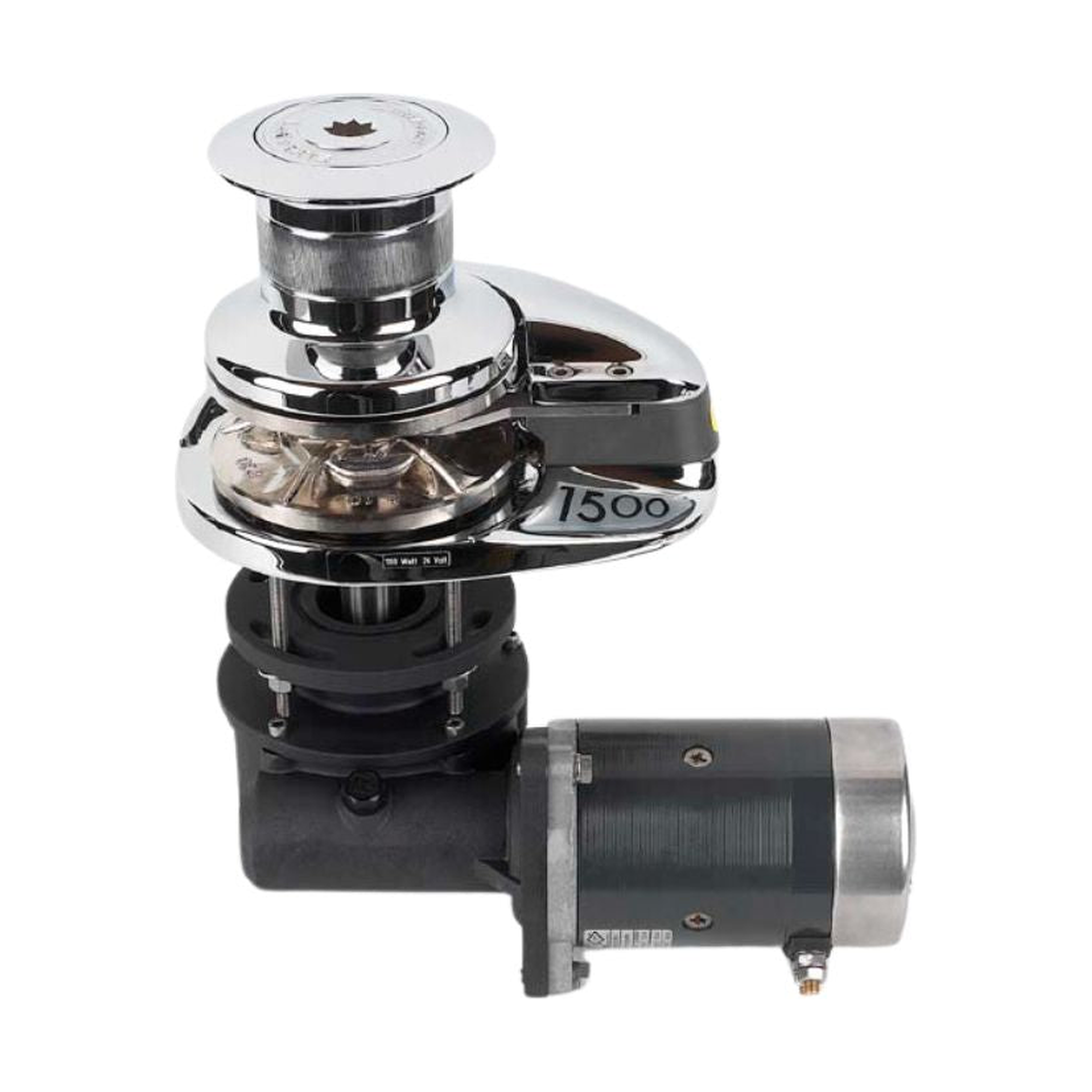

Lofrans Windlass - X3 Project 1500 C 1700W Vertical Electric 24V Gypsy + Drum 3/8" - G4

SKU: LOFLW7962C1-38  |  Manuf. Code: LW7962C/1-3/8
List Price:  5176.00 USD
$4,399.90 USD

Description

The Lofrans Project 1500 X3 C Windlass is a robust electric anchor windlass designed for mid-sized boats, likely in the 45-60 foot range. The 1500-watt motor provides ample power for both chain and rope with its separate gypsy and capstan. Built with a focus on durability, it features a corrosion-resistant body and a manual override system for backup in case of electrical issues. The X3 C also offers the option of adding a chain counter for precise anchor rode monitoring, making it a reliable choice for confident anchoring.

Standard Equipment:

  • Watertight dual-direction control box
  • Two heavy duty covered footswitches
  • Emergency override handle
  • Rope/chain gypsy
  • Neoporene deck gasket

Technical Information


DescriptionImperialMetric
Motor Wattage1700 W.
Description Project 1500 Windlass, Capstan, 1700W, 24VDC, Chrome
Power Rating2450.00 lb.1111.00 kg.
Approx. Amp Draw90 - 135 amp.
Max Retrieval Speed60.00 ft/min19.00 m/min
Deck Thickness1 15/16 - 2 3/4 in.49.00 - 70.00 mm.
Volts24 V.
Approximate Ship Weight68.00 lb.31.00 kg.
