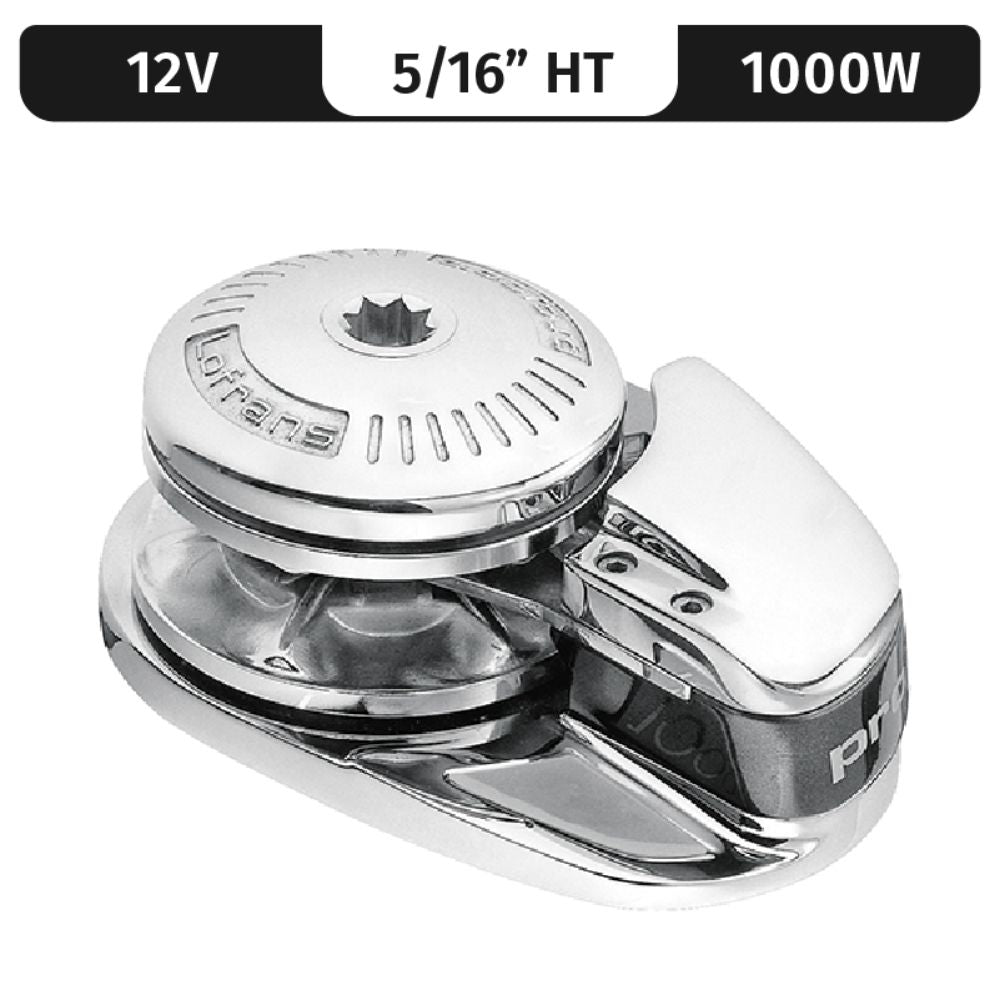

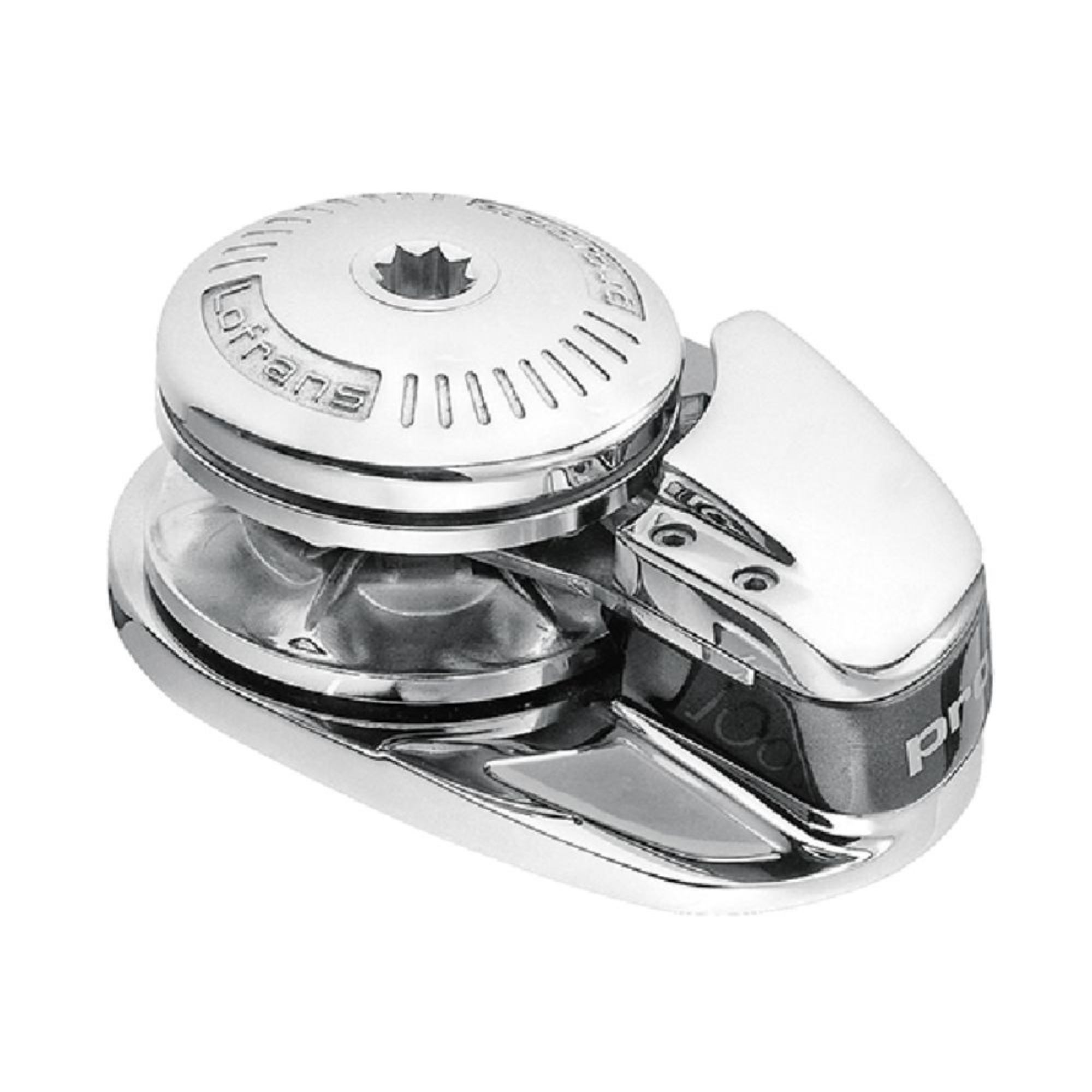

Lofrans Windlass - X2 Project 1000 LP 1000W Vertical Electric 12V Gypsy Only 5/16" - G4
Lofrans Windlass - X2 Project 1000 LP 1000W Vertical Electric 12V Gypsy Only 5/16" - G4 is backordered and will ship as soon as it is back in stock.
Description
Description
The Lofrans Project 1000 is a likely electric windlass for mid-sized boats (around 45 feet) with a 1000-watt motor (possibly handling chain and rope). It prioritizes durability and might have a manual backup system.
The Project 1000 features a high torque series-wound electric motor that delivers immediate lifting power and deployment speed.
The Lofrans purpose built gearbox has a built in manual over-ride system in case an electrical problem were to arise. Lofrans provides a clutch/over-ride handle to make clutch adjustments or to hand crank the ground tackle onboard in an emergency. The handsome luxury chrome finish will enhance the look of any vessel.
Standard Equipment:
- Rope/Chain Management System
- Watertight Solenoid Control Box
- Two Covered Footswitches
- Manual Override w/Handle
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Motor Wattage | 1000 W. | |
Version | Capstan | |
Description | Project 1000 Windlass, 1000W, 12VDC, Chrome | |
Working Load | 220.00 lb. | 100.00 kg. |
Payout Speed | 105.00 ft/min | 32.00 m/min |
Retrieval Speed No Load | 79.00 ft/min | 24.00 m/min |
Retrieval Speed Working Load | 52.00 ft/min | 16.00 m/min |
Amperes No Load | 70 amp. | |
Amperes Working Load | 110 amp. | |
Deck Thickness | 1 9/16 in. | 40.00 mm. |
Volts | 12 V. | |
Approximate Ship Weight | 52.00 lb. | 24.00 kg. |
