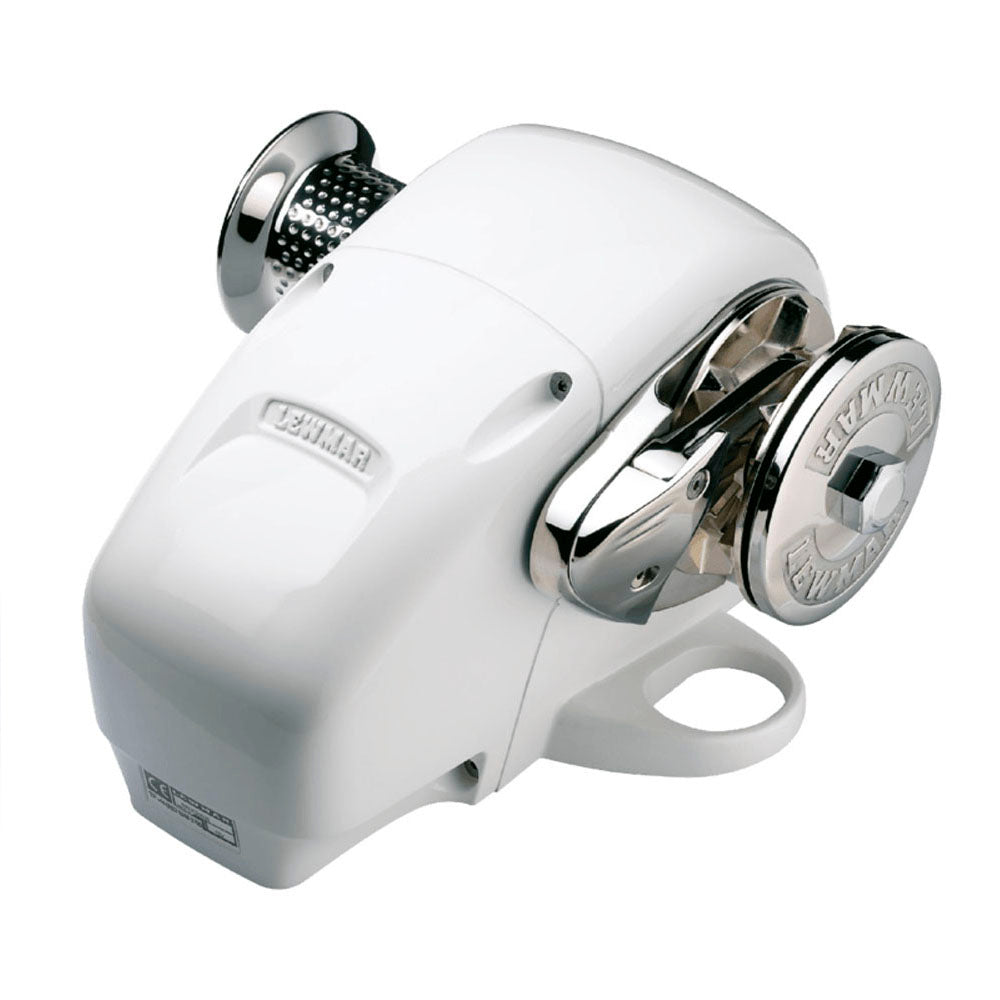

Lewmar Windlass - H3 1000W Horizontal Electric 24V Gypsy + Drum 10mm - BBB
Lewmar Windlass - H3 1000W Horizontal Electric 24V Gypsy + Drum 10mm - BBB is backordered and will ship as soon as it is back in stock.
Description
Description
The stylish, horizontal H-Series Windlasses use the reliable worm gearbox technology. The integral contactor simplifies wiring and is protected by a durable maincase. The unit's waterproof seal requires minimum maintenance and since you can install it in one piece, getting started is quick and easy.
Our Part # LEW69600548 | Lewmar Part # 69600548
Features
Features
Features:
- Quick, easy, one-piece installation.
- Stainless steel warping drum and unique W.A.R.P. (Wear and Abrasion Reduction Pattern) finish.
- Robust horizontal worm motor-gearbox for reliable performance.
- Integral contactor protected by maincase.
- Sealed waterproof unit requires minimum maintenance.
- Aluminium and composite maincase for reduced weight.
- For boats up to 14m (48ft).
Kit Includes:
- Built-in-dual-direction contactor, breaker and rocker switch.
Knowledge Base
Knowledge Base
Click on the following technical articles to find relevant information about Windlasses:
Sizing
Sizing
Description | Imperial | Metric |
---|---|---|
Gypsy Number | 506 | |
Size | 2/5 in. | 10.00 mm. |
Chain Description | 3/8 in. BBB | 10.00 mm. DIN 766, Lewmar 9.50 mm. G40 |
Rope Description | 9/16 - 5/8 in. 3-Strand and 8-plait (5/8 only) | 14.00 - 16.00 mm. 3-Strand and 8-plait (5/8 only) |
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Model | H3 | |
Motor Supply | 24.00 V. | |
Gypsy Number | 506 | |
Motor Power | 1000.00 W. | |
Max Pull | 2248.00 lb. | 1020.00 kg. |
Max Line Speed | 98.00 ft./min. | 30.00 m./min. |
Working Load Limit | 535.00 lb. | 243.00 kg. |
Normal Current Draw | 60.00 amp. | |
Normal Line Speed | 66.00 ft. | 20.00 m. |
Weight | 56.00 lb. | 25.50 kg. |
Circuit Breaker | 90.00 amp. |
