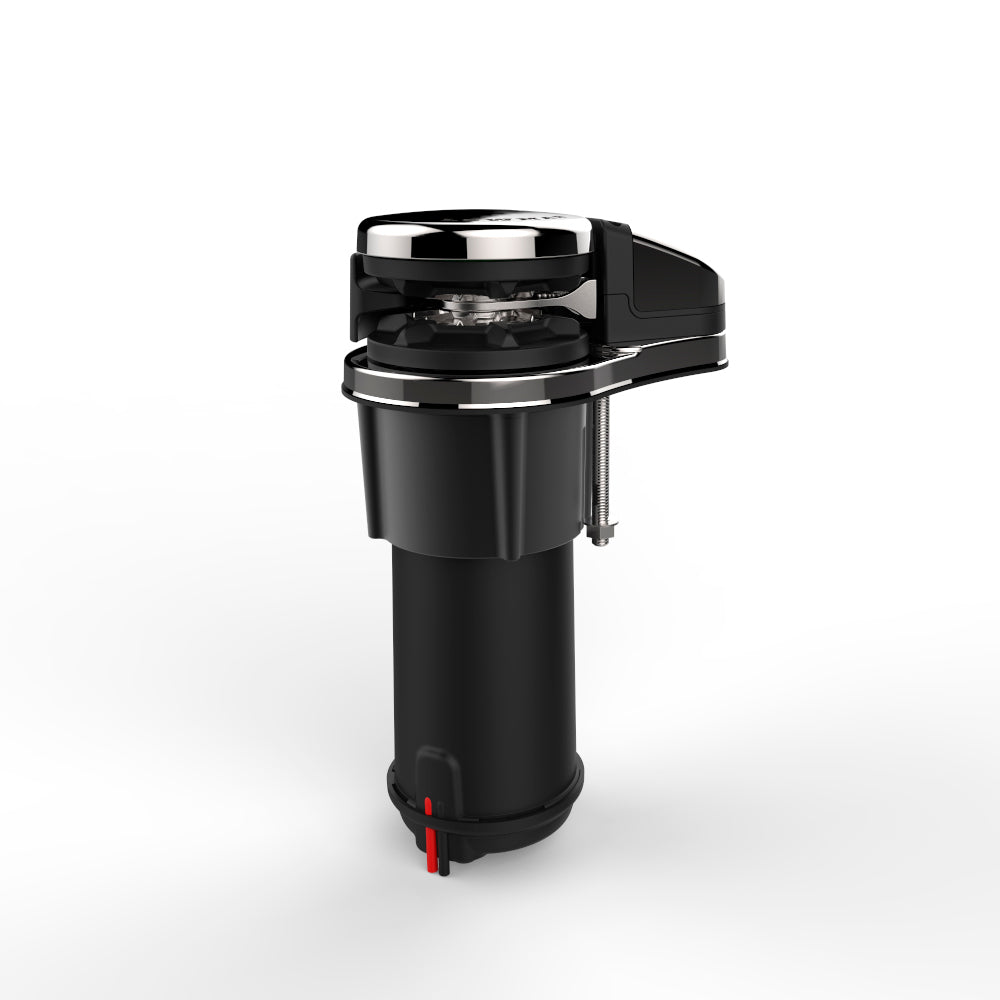

Lewmar Windlass - VX1L 800W Vertical Electric 12V Gypsy Only 8mm - DIN 766
Lewmar Windlass - VX1L 800W Vertical Electric 12V Gypsy Only 8mm - DIN 766 is backordered and will ship as soon as it is back in stock.
Description
Description
The Lewmar Windlass - VX1L 800W Vertical Electric 12V Gypsy Only 8mm - DIN 766 #69100063 is designed for efficiency and ease of installation. It offers robust performance for boats up to 36ft with its compact design, making it a valuable addition without taking up too much space. With a maximum pull of 920kg, this windlass combines power and efficiency in a sleek package.
Features & Benefits
- Compact one-piece unit for easy installation
- In-line motor with epicyclical gearbox for efficient performance
- Frees up space below decks without compromising performance
- Maximum pull of 920kg for strong and reliable operation
- Available in standard and extended kits for added convenience
The VX1L model features a sleek design with an in-line motor and epicyclical gearbox, ensuring efficiency and reliability. It is suitable for boats up to 36ft and offers a maximum pulling capacity of 920kg. The standard kit includes a deck unit with motor gearbox and solenoid, while the extended kit adds a rocker switch, circuit breaker, and gypsy for enhanced functionality.
Features
Features
Features:
- 2 gypsy options to choose from 6/7mm1/4 in & 8 mm 5/16.
- P67 rated motor housing as standard.
- Manual clutch release.
- Drum option.
- Stylish stainless steel and composite construction.
- Same footprint as V700 model.
- 500W & 800W 12v motors available.
Knowledge Base
Knowledge Base
Click on the following technical articles to find relevant information about Windlasses:
Sizing
Sizing
Description | Metric | Imperial |
---|---|---|
Size | 8.00 mm. | 1/3 in. |
Chain Description | 8.00 mm. DIN766, 8.00 mm. ISO4565 | 5/16 in. ACCO ISO G43 (G4) |
Rope Description | 12.00 - 16.00 mm. 3-Strand Hard Lay Up | 1/2 - 5/8 in. 3-Strand Hard Lay Up |
Technical Information
Technical Information
Description | Metric | Imperial |
---|---|---|
Power option | 12 V. | 12 V. |
Motor | 800 W. | 800 W. |
Typical max pull | 400 kg. | 882.00 lb. |
Maximun line speed | 25.00 m./min. | 82.00 ft./min. |
Typical working load | 100.00 kg. | 220 lb. |
Current draw at work load | 66 A | 66 A |
Total weight gypsy only | 12.50 kg. | 28 lb. |
Total weight gypsy/drum | 13.50 kg. | 30.00 lb. |
Circuit Breaker | 50 A | 50 A |
