Lewmar  |  SKU: LEW69100060  |  Manuf. Code: 69100060

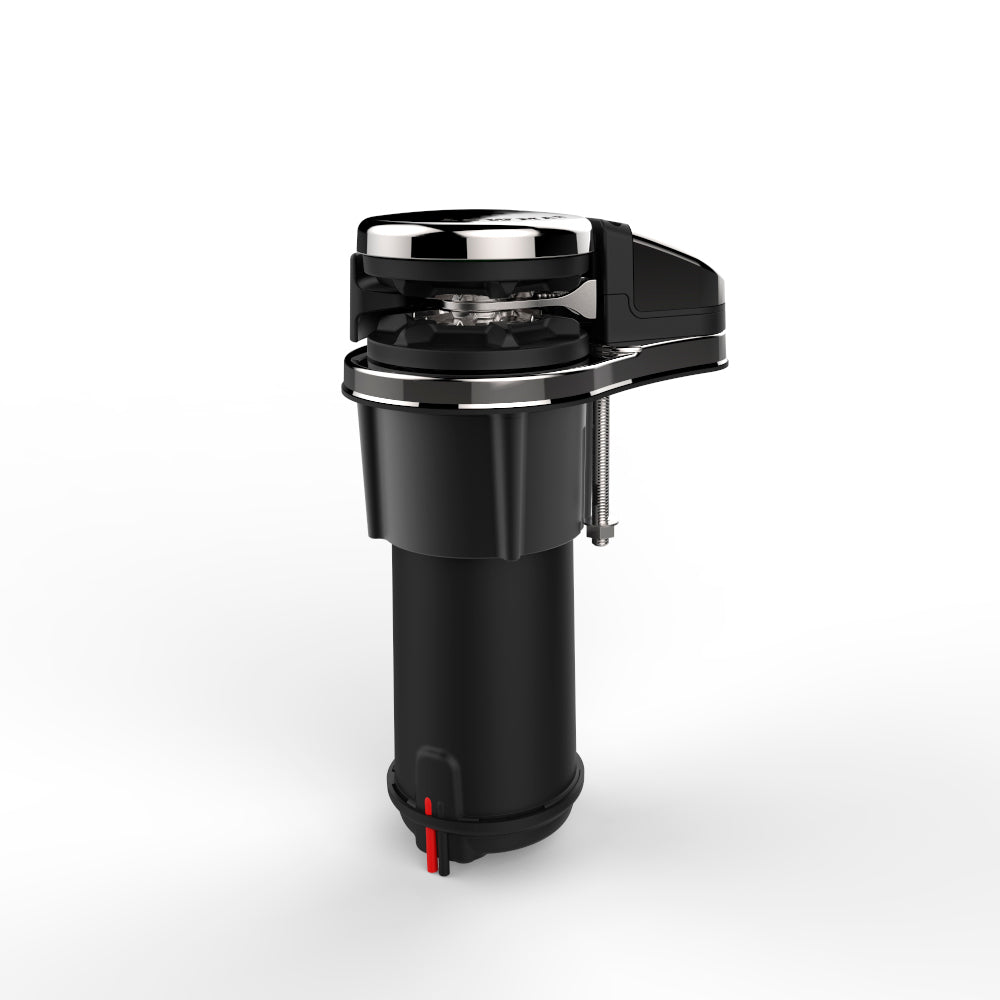

Lewmar Windlass - VX1L 500W Vertical Electric 12V Gypsy Only 1/4" - DIN 766

$1,030.95 USD $1,586.10

Description

VX1L offers the same design features as the rest of the VX range, but in a compact easy to install one piece unit. The VX1L model is fitted with an in-line motor and epicyclical gearbox which combines with a small, compact and efficient motor.

The VX1L is a great addition to our vertical windlass range, without compromising performance and freeing up space below decks. The VX1L offers a maximum pull of 920kg, providing strong performance and robust design for boats up to 36ft.

VX1L Standard windlass kit includes Deck unit with Motor gearbox, Solenoid.

VX1L Extended windlass kit includes Deck unit with Motor gearbox, Solenoid, Rocker switch, Cuircit Breaker and Gypsy.

Our Part # LEW69100060 | Lewmar Part # 69100060

Features

Features:

  • 2 gypsy options to choose from 6/7mm1/4 in & 8 mm 5/16.
  • P67 rated motor housing as standard.
  • Manual clutch release.
  • Drum option.
  • Stylish stainless steel and composite construction.
  • Same footprint as V700 model.
  • 500W & 800W 12v motors available.

Knowledge Base

Click on the following technical articles to find relevant information about Windlasses:

Sizing


DescriptionMetricImperial
Size6.00 mm.1/4 in.
Chain Description6.00 mm DIN766, 6.00 mm. ISO4565, 7.00 mm. DIN766, 7.00 mm. ISO45651/4 in. ACCO ISO G43 (G4), 1/4 in. ACCO BBB (3B)
Rope Description12.00 - 16.00 mm. 3-Strand Hard Lay Up1/2 - 5/8 in. 3-Strand Hard Lay Up

Technical Information


DescriptionMetricImperial
Power option12 V.12 V.
Motor300 W.300 W.
Typical max pull400 kg.882.00 lb.
Maximun line speed25.00 m./min.82.00 ft./min.
Typical working load100.00 kg.220 lb.
Current draw at work load66 A66 A
Total weight gypsy only12.50 kg.28 lb.
Total weight gypsy/drum13.50 kg.30.00 lb.
Circuit Breaker50 A50 A
