Lewmar  |  SKU: LEW69100036  |  Manuf. Code: 69100036

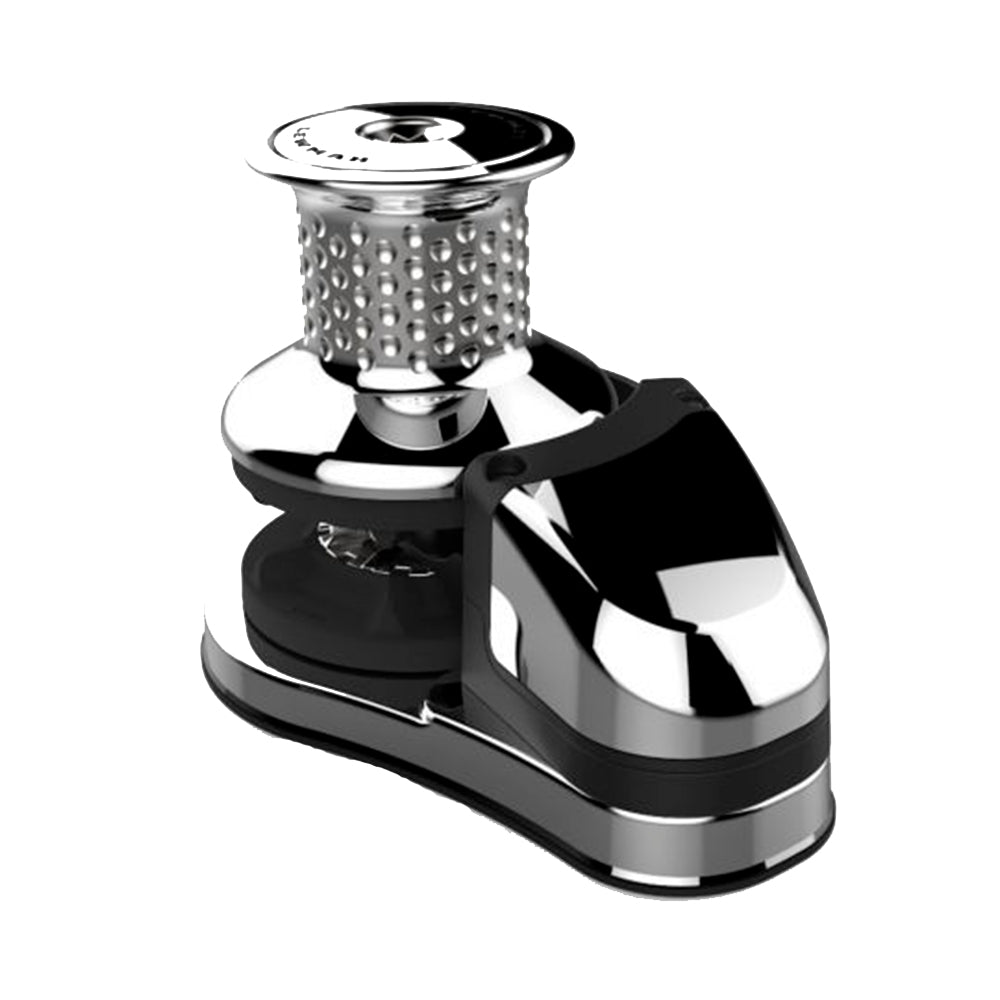

Lewmar Windlass - VX1 300W Vertical Electric 12V Gypsy + Drum 8mm - DIN 766

$1,027.95 USD $1,581.50

Description

During 2015, Lewmar undertook an aggressive development program to renew its market-leading vertical windlass range. Our engineering team is continually exploring, evaluating and testing new materials to ensure we offer cutting edge products that are lighter, stronger and optimised for best performance.

The VX1 is the first in the expansive new range of windlass. Using a new product development team solely working on new ways to design, develop and manufacture, Lewmar has been able to offer new age technologies to refine our windlass design. This makes our VX range lighter, stronger & more efficient than any competitor on the market.

VX Standard windlass kit includes Deck unit, Motor gearbox, Solenoid and Gypsy. VX Extended windlass kit includes Deck unit, Motor gearbox, Solenoid, Rocker switch, Cuircit Breaker and Gypsy

Our Part # LEW69100036 | Lewmar Part # 69100036

Features

Features:

  • Motor range 300 & 500W in 12 Volt.
  • VX1- Robust worm wheel gearbox.
  • Stylish stainless steel and composite construction.
  • IP67 cover as standard.
  • Same footprint as V1 model.
  • 2 models available to suit calibrated chain 6/7mm, 1/4 in and 8mm.
  • Changeover contactor 12V seale.
  • Guarded rocker switch.
  • Circui breaker 70 amp 9358.

Knowledge Base

Click on the following technical articles to find relevant information about Windlasses:

Sizing


DescriptionMetricImperial
Size6.00 mm.1/4 in.
Chain Description8.00 mm. DIN766, 8.00 mm. ISO45655/16 in. ACCO ISO G43 (G4)
Rope Description12.00 - 16.00 mm. 3-Strand Hard Lay Up1/2 - 5/8 in. 3-Strand Hard Lay Up

Technical Information


DescriptionMetricImperial
Power option12 V.12 V.
Motor300 W.300 W.
Typical max pull400 kg.882.00 lb.
Maximun line speed25.00 m./min.82.00 ft./min.
Typical working load100.00 kg.220 lb.
Current draw at work load66 A66 A
Total weight gypsy only12.50 kg.28 lb.
Total weight gypsy/drum13.50 kg.30.00 lb.
Circuit Breaker50 A50 A
