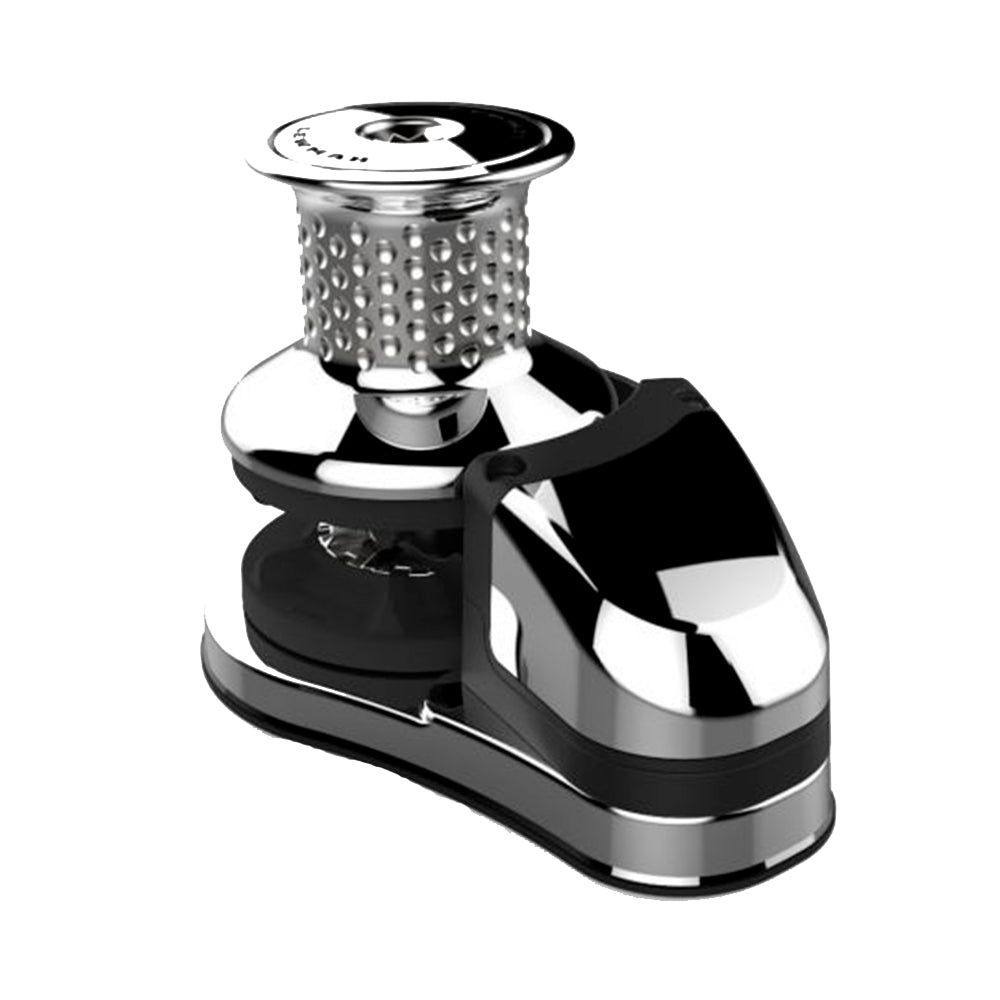

Lewmar Windlass - VX1 300W Vertical Electric 12V Gypsy + Drum 1/4" - DIN 766
Lewmar Windlass - VX1 300W Vertical Electric 12V Gypsy + Drum 1/4" - DIN 766 is backordered and will ship as soon as it is back in stock.
Description
Description
The Lewmar Windlass #69100034 is a top-notch choice for boaters looking for reliable anchoring power. Designed with innovative materials, it's not just lighter and stronger but also more efficient than many on the market. You’ll surely find it handy whenever you’re out on the water.
Benefits
- Lightweight and durable construction
- Efficient electric operation
- Includes essential components: Deck unit, Motor gearbox, Solenoid, and Gypsy
- Optional extended kit with added Rocker switch and Circuit breaker
This Lewmar windlass is crafted with cutting-edge materials, ensuring top performance without unnecessary weight. It features a 300W vertical electric motor suitable for 12V systems and a 1/4" DIN 766 gypsy and drum. Whether you're setting sail on a leisurely day or anchoring in turbulent waters, its robust design offers reliability and ease of use.
Our Part # LEW69100034 | Mfr. Part # 69100034
Features
Features
- Motor range 300 & 500W in 12 Volt.
- VX1- Robust worm wheel gearbox.
- Stylish stainless steel and composite construction.
- IP67 cover as standard.
- Same footprint as V1 model.
- 2 models available to suit calibrated chain 6/7mm, 1/4 in and 8mm.
- Changeover contactor 12V seale.
- Guarded rocker switch.
- Circui breaker 70 amp 9358.
Knowledge Base
Knowledge Base
Click on the following technical articles to find relevant information about Windlasses:
Sizing
Sizing
Description | Metric | Imperial |
---|---|---|
Size | 6.00 mm. | 1/4 in. |
Chain Description | 6.00 mm DIN766, 6.00 mm. ISO4565, 7.00 mm. DIN766, 7.00 mm. ISO4565 | 1/4 in. ACCO ISO G43 (G4), 1/4 in. ACCO BBB (3B) |
Rope Description | 12.00 - 16.00 mm. 3-Strand Hard Lay Up | 1/2 - 5/8 in. 3-Strand Hard Lay Up |
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Power option | 12 V | 12 V |
Motor | 800 W | 800 W |
Typical max pull | 882.00 lb. | 400 kg. |
Maximum line speed | 82.00 ft./min. | 25.00 m./min. |
Typical working load | 220 lb. | 100.00 kg. |
Current draw at workload | 66 A | 66 A |
Total weight gypsy only | 28 lb. | 12.50 kg. |
Total weight gypsy/drum | 30.00 lb. | 13.50 kg. |
Circuit Breaker | 50 A | 50 A |
