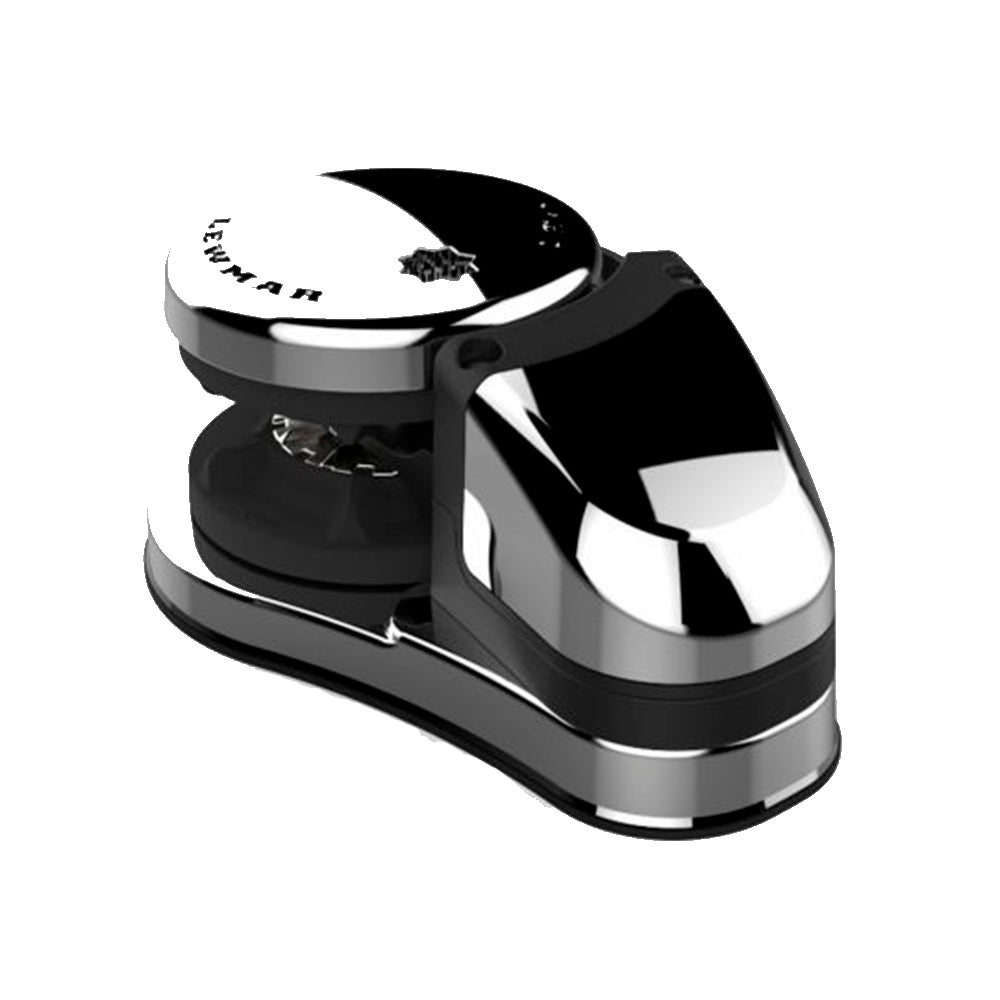

Lewmar Windlass - VX1 500W Vertical Electric 12V Gypsy Only 8mm - DIN 766
Lewmar Windlass - VX1 500W Vertical Electric 12V Gypsy Only 8mm - DIN 766 is backordered and will ship as soon as it is back in stock.
Description
Description
During 2015, Lewmar undertook an aggressive development program to renew its market-leading vertical windlass range. Our engineering team is continually exploring, evaluating and testing new materials to ensure we offer cutting edge products that are lighter, stronger and optimised for best performance.
The VX1 is the first in the expansive new range of windlass. Using a new product development team solely working on new ways to design, develop and manufacture, Lewmar has been able to offer new age technologies to refine our windlass design. This makes our VX range lighter, stronger & more efficient than any competitor on the market.
VX Standard windlass kit includes Deck unit, Motor gearbox, Solenoid and Gypsy. VX Extended windlass kit includes Deck unit, Motor gearbox, Solenoid, Rocker switch, Cuircit Breaker and Gypsy.
Our Part # LEW69100033 | Lewmar Part # 69100033
Features
Features
Features:
- Motor range 300 & 500W in 12 Volt.
- VX1- Robust worm wheel gearbox.
- Stylish stainless steel and composite construction.
- IP67 cover as standard.
- Same footprint as V1 model.
- 2 models available to suit calibrated chain 6/7mm, 1/4 in and 8mm.
- Changeover contactor 12V seale.
- Guarded rocker switch.
- Circui breaker 70 amp 9358.
Knowledge Base
Knowledge Base
Click on the following technical articles to find relevant information about Windlasses:
Sizing
Sizing
Description | Metric | Imperial |
---|---|---|
Size | 6.00 mm. | 1/4 in. |
Chain Description | 8.00 mm. DIN766, 8.00 mm. ISO4565 | 5/16 in. ACCO ISO G43 (G4) |
Rope Description | 12.00 - 16.00 mm. 3-Strand Hard Lay Up | 1/2 - 5/8 in. 3-Strand Hard Lay Up |
Technical Information
Technical Information
Description | Metric | Imperial |
---|---|---|
Power option | 12 V. | 12 V. |
Motor | 300 W. | 300 W. |
Typical max pull | 400 kg. | 882.00 lb. |
Maximun line speed | 25.00 m./min. | 82.00 ft./min. |
Typical working load | 100.00 kg. | 220 lb. |
Current draw at work load | 66 A | 66 A |
Total weight gypsy only | 12.50 kg. | 28 lb. |
Total weight gypsy/drum | 13.50 kg. | 30.00 lb. |
Circuit Breaker | 50 A | 50 A |
