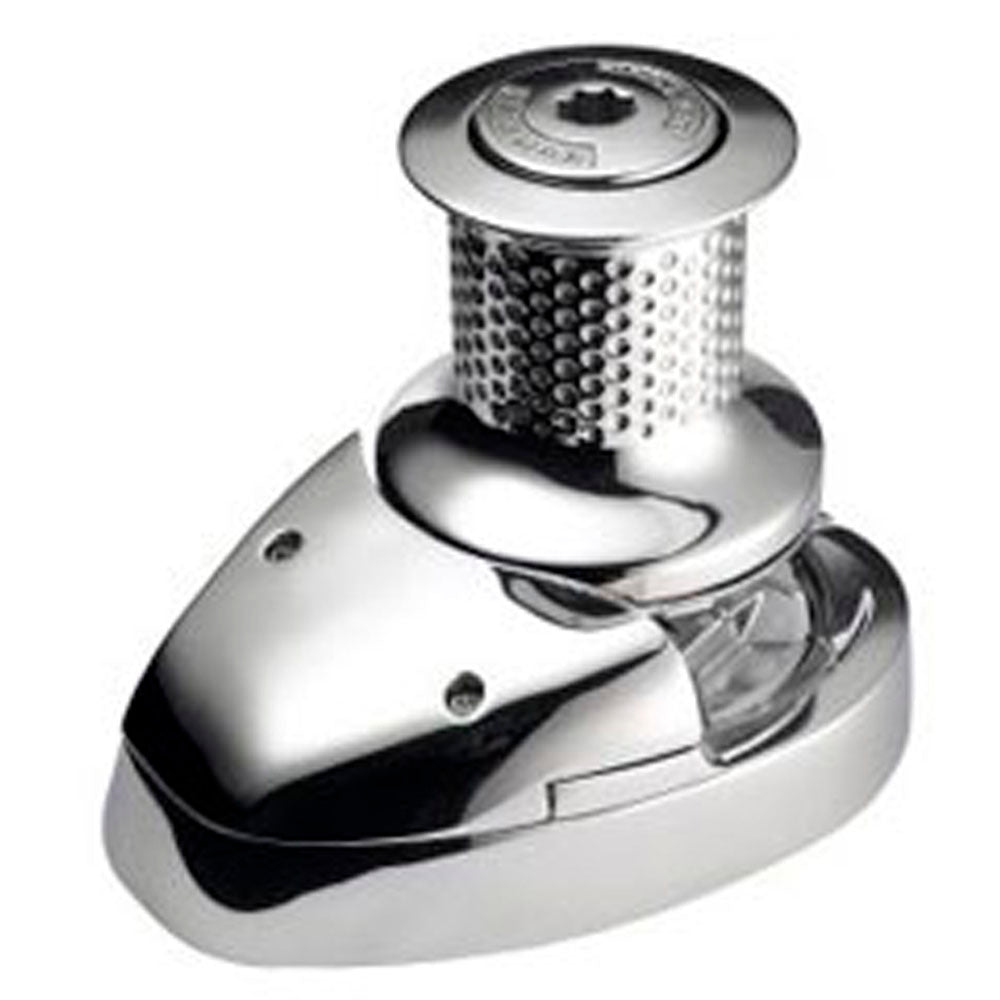

Lewmar Windlass - V4 2000W Vertical Electric 24V Gypsy + Drum 10mm - DIN 766
Lewmar Windlass - V4 2000W Vertical Electric 24V Gypsy + Drum 10mm - DIN 766 is backordered and will ship as soon as it is back in stock.
Description
Description
The Lewmar Windlass - V4 2000W Vertical Electric 24V Gypsy + Drum 10mm - DIN 766 #66910091-144 is a reliable companion for both power and sailboats, offering robust performance with a sleek, stainless steel finish. This windlass combines strength and style, making anchoring a breeze with its innovative design. It's all about making your sailing experience smoother and more enjoyable with just the touch of a button.
Benefits
- Compact stainless steel construction for durability and aesthetic appeal.
- Reliable drive train with worm gearbox for consistent performance.
- Low profile gypsy designed to maintain rope quality over time.
- Suitable for rope-chain or all-chain anchor rodes.
This Lewmar windlass features a fully machined gypsy and a splined shaft, ensuring maximum control and strength. It's designed to handle 10mm DIN 766 chains effortlessly, providing compatibility with various anchor setups. With its compact size, it discreetly fits on the deck, maintaining a low profile while delivering powerful 2000W performance at 24V.
Our Part # LEW66910091144 | Mfr. Part # 66910091-144
Features
Features
- Rocker switch.
- Circuit breaker.
- Contactor and handle.
- Rope-chain gypsy.
- Manual override & chain release.
- Stylish Stainless Steel deck unit.
- Cone clutch for smooth, easy control.
- Drive Train- robust & reliable.
- Splined shaft.
- CE approved.
Knowledge Base
Knowledge Base
Click on the following technical articles to find relevant information about Windlasses:
Sizing
Sizing

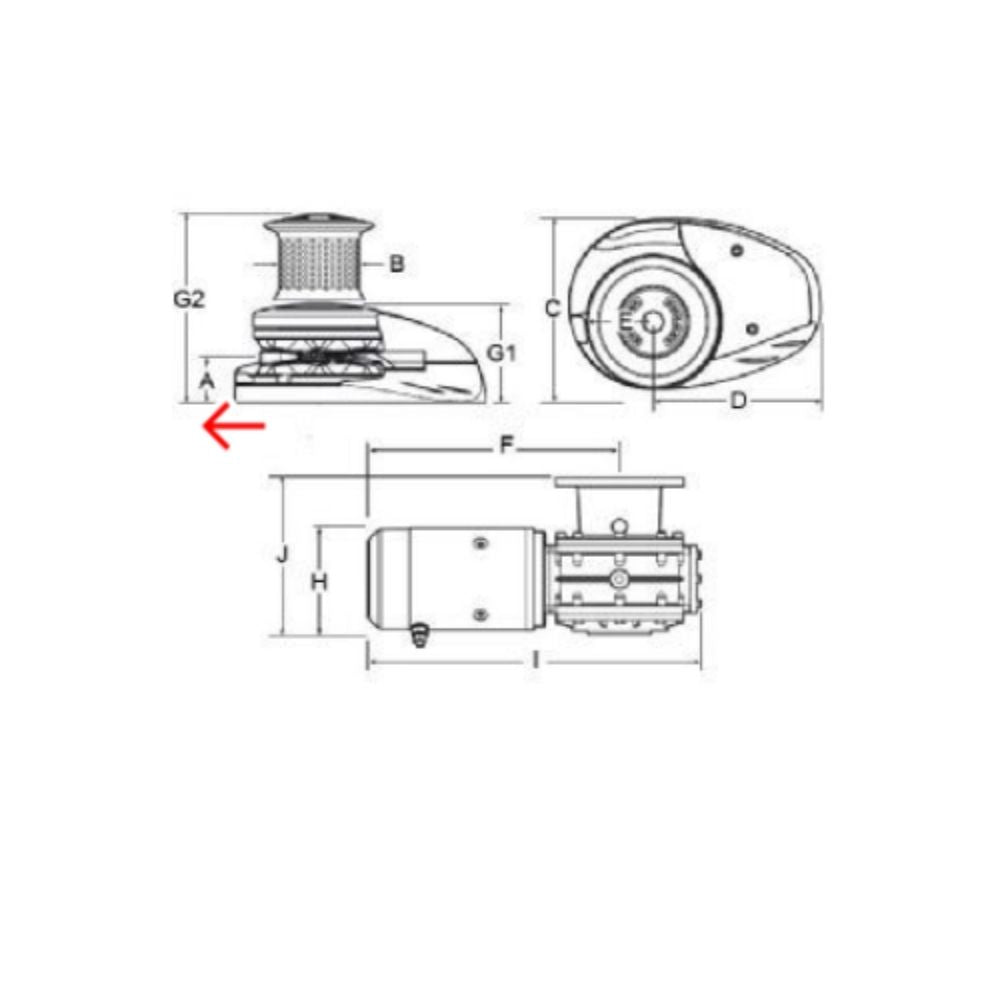

Description | Metric | Imperial |
---|---|---|
Gypsy Number | 202 | 202 |
Chain Description | 10.00 mm. Din. 766, 9.50 mm. G30 | 5/16 in. Campbell S3, 3/8 in. Campbell S4 |
Rope Description | 16.00 mm. 3-Strand Hard Lay Up | 1/2 in. 3-Strand Hard Lay Up |
B | 75.00 mm. | 3.00 in. |
C | 189.00 mm. | 7 7/16 in. |
D | 184.00 mm. | 7 1/4 in. |
F | 289.00 mm. | 10 7/8 in. |
G1 | 108.00 mm. | 4 1/4 in. |
G2 | 214.00 mm. | 8 7/16 in. |
H | 174.00 mm. | 7 5/16 in. |
J | 185.00 mm. | 7 5/16 in. |
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Voltage | 24 V. | 24 V. |
Motor Power Watts | 2000 W. | 2000 W. |
Normal Current Draw | 70 A. | 70 A. |
Max Pull | 3300.00 lb. | 1500.00 kg. |
Maximum Line Speed | 82.00 ft./min. | 27.00 m./min. |
Working Load | 668.00 lb. | 375.00 kg. |
Weight Gypsy Only | 79.00 lb. | 36.00 kg. |
