Lewmar  |  SKU: LEW66910090144  |  Manuf. Code: 66910090-144

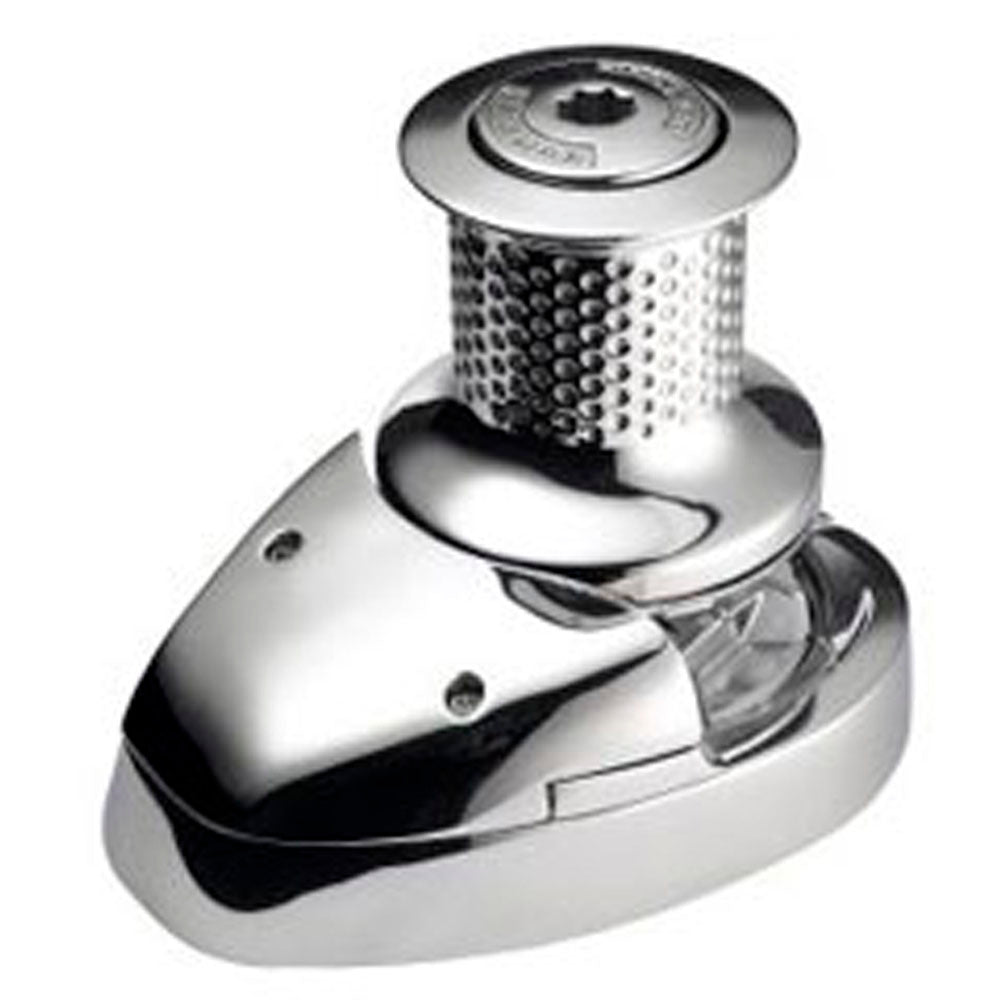

Lewmar Windlass - V4 2000W Vertical Electric 24V Gypsy + Drum 8mm - DIN 766

$4,420.00 USD $6,800.00

Description

Lewmar introduces the worlds first compact stainless steel windlass for power and sail boats. The beautiful styled deck unit conceals a robust, reliable drive train, worm gearbox and splined shaft for maximum strength and control. Rope-chain or all-chain anchor rodes may be employed at the touch of a button, whilst the fully machined, low profile gypsy will keep your ropes in beautiful condition for years to come.

Our Part # LEW66910090144 | Lewmar Part # 66910090-144

Features

Features:

  • Rocker switch.
  • Circuit breaker.
  • Contactor and handle.
  • Rope-chain gypsy.
  • Manual override & chain release.
  • Stylish Stainless Steel deck unit.
  • Cone clutch for smooth, easy control.
  • Drive Train- robust & reliable.
  • Splined shaft.
  • CE approved.

Knowledge Base

Click on the following technical articles to find relevant information about Windlasses:

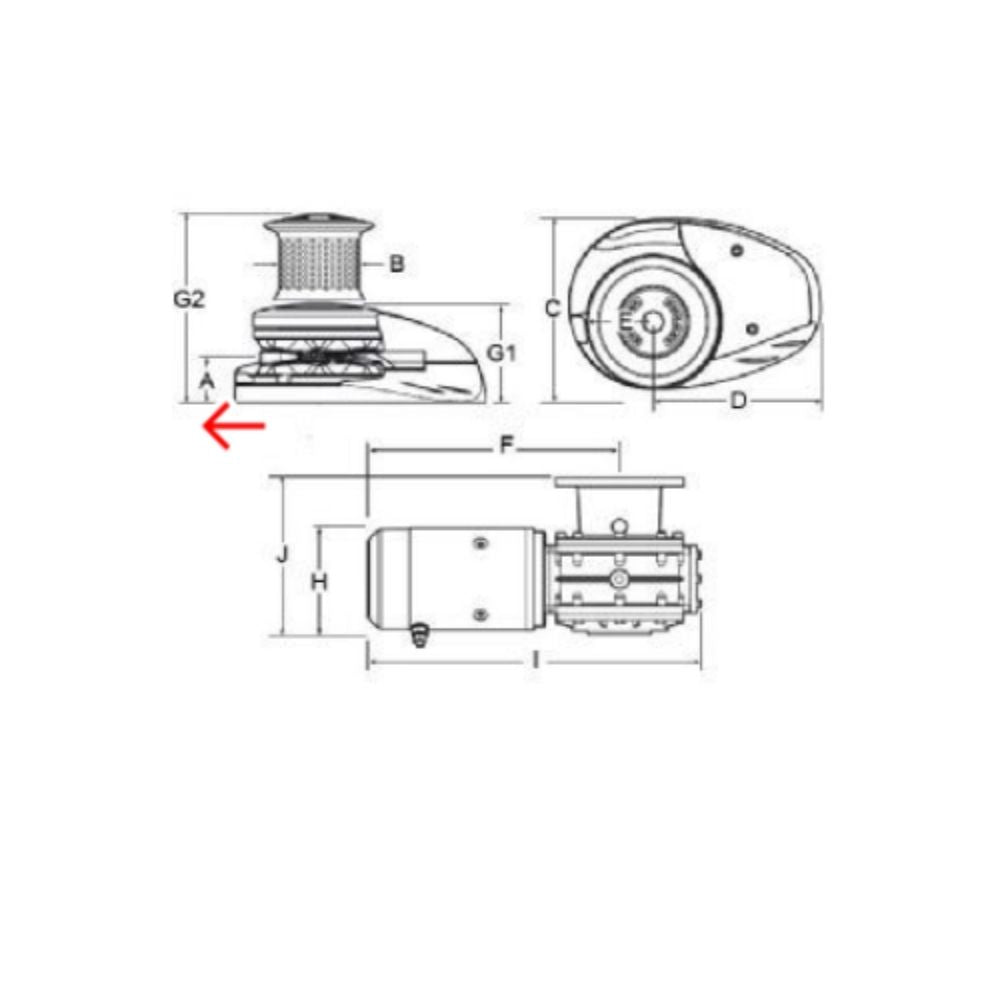

Sizing


DescriptionMetricImperial
Gypsy Number201201
Chain Description8.00 mm. Din. 766, 8.00 mm. ISO 45655/16 in. G40, 5/16 in. Campbell S4
Rope Description12.00 - 14.00 mm. 3-Strand Hard Lay Up1/2 in. 3-Strand Hard Lay Up
B75.00 mm.3.00 in.
C189.00 mm.7 7/16 in.
D184.00 mm.7 1/4 in.
F289.00 mm.10 7/8 in.
G1108.00 mm.4 1/4 in.
G2214.00 mm.8 7/16 in.
H174.00 mm.7 5/16 in.
J185.00 mm.7 5/16 in.

Technical Information


DescriptionMetricImperial
Voltage24 V.24 V.
Motor Power Watts2000.00 W.2000.00 W.
Normal Current Draw70 A.70 A.
Max Pull1500.00 kg.3300.00 lb.
Maximum Line Speed27.00 m./min.82.00 ft./min.
Working Load375.00 kg.668.00 lb.
Weight Gypsy Only36.00 kg.79.00 lb.
