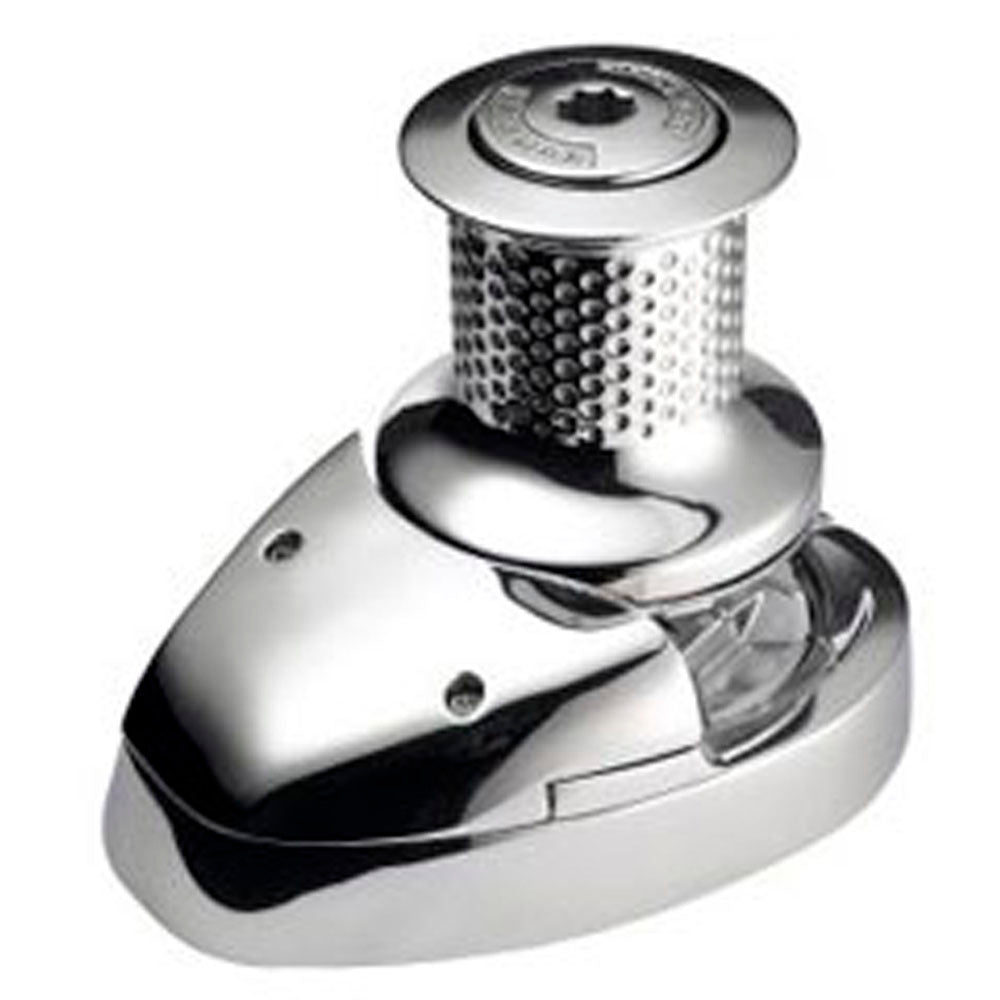

Lewmar Windlass - V4 1600W Vertical Electric 12V Gypsy + Drum 12mm - ISO
Lewmar Windlass - V4 1600W Vertical Electric 12V Gypsy + Drum 12mm - ISO is backordered and will ship as soon as it is back in stock.
Description
Description
The Lewmar Windlass - V4 1600W Vertical Electric 12V Gypsy + Drum 12mm - ISO #66910089-143 is a game-changer for both power and sail boats. With its compact stainless steel design, it combines style with strength, ensuring reliable performance whenever you need it. You'll appreciate the smooth operation and longevity this winch offers, making anchoring a breeze.
Features & Benefits
- Compact stainless steel construction for durability and style
- Reliable drive train with a worm gearbox for optimal control
- Low profile gypsy designed to maintain rope condition over time
- Supports rope-chain or all-chain anchor rodes at the push of a button
This windlass features a robust, fully machined gypsy and a splined shaft that enhance its strength and functionality. It's perfectly suited for dealing with a 12mm - ISO chain and operates on a 12V electrical system, delivering 1600W of power. Designed for seamless integration on a variety of boats, this windlass is a versatile choice for sailing enthusiasts.
Features
Features
Features:
- Rocker switch.
- Circuit breaker.
- Contactor and handle.
- Rope-chain gypsy.
- Manual override & chain release.
- Stylish Stainless Steel deck unit.
- Cone clutch for smooth, easy control.
- Drive Train- robust & reliable.
- Splined shaft.
- CE approved.
Knowledge Base
Knowledge Base
Click on the following technical articles to find relevant information about Windlasses:

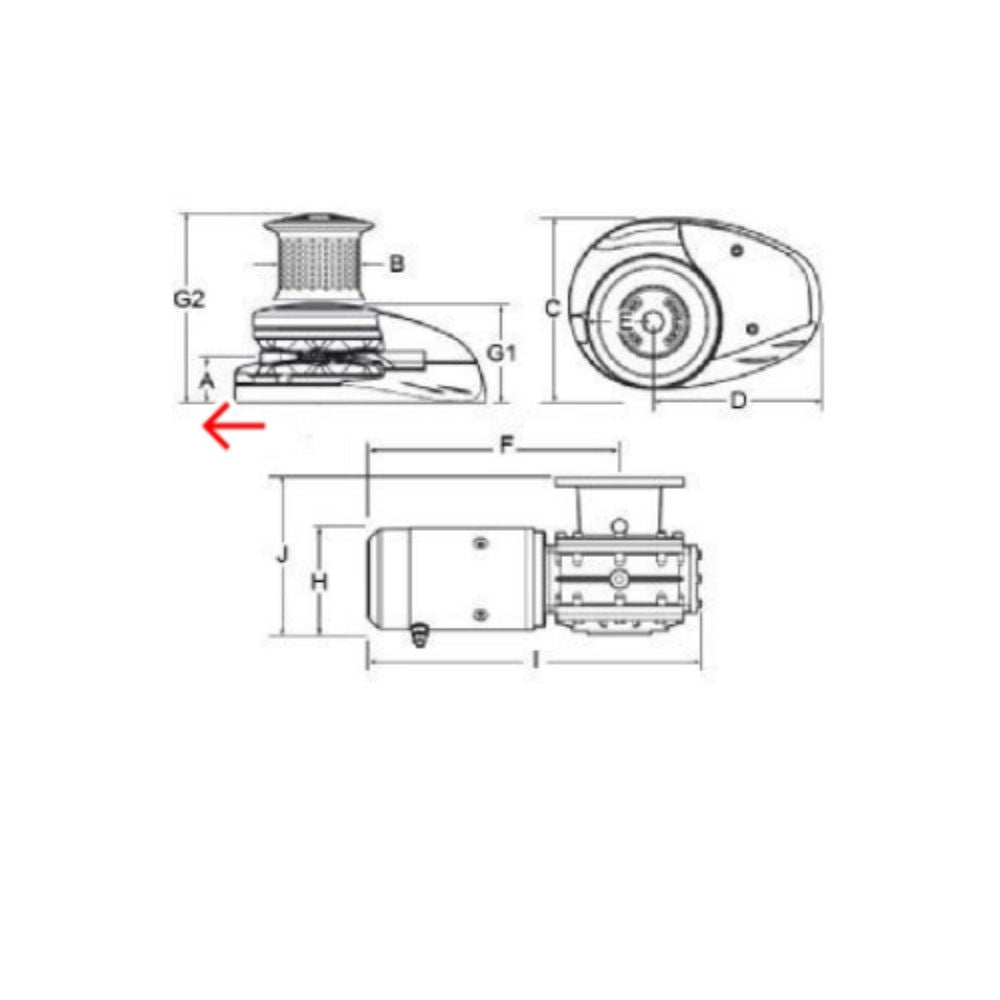

Sizing
Sizing
Description | Metric | Imperial |
---|---|---|
Gypsy Number | 204 | 204 |
Chain Description | 12.00 mm. ISO 4565, 13.00 mm. Din. 766 | 12.00 mm. ISO 4565, 13.00 mm. Din. 766 |
Rope Description | 18.00 - 20.00 mm. 3-Strand Hard Lay Up | 3/4 in. 3-Strand Hard Lay Up |
B | 75.00 mm. | 3.00 in. |
C | 189.00 mm. | 7 7/16 in. |
D | 184.00 mm. | 7 1/4 in. |
F | 289.00 mm. | 10 7/8 in. |
G1 | 108.00 mm. | 4 1/4 in. |
G2 | 214.00 mm. | 8 7/16 in. |
H | 174.00 mm. | 7 5/16 in. |
J | 185.00 mm. | 7 5/16 in. |
Technical Information
Technical Information
Description | Metric | Imperial |
---|---|---|
Voltage | 12 V. | 12 V. |
Motor Power Watts | 1600.00 W. | 1600.00 W. |
Normal Current Draw | 125 A. | 125 A. |
Max Pull | 1250.00 kg. | 2750.00 lb. |
Maximum Line Speed | 25.00 m./min. | 82.00 ft./min. |
Working Load | 313.00 kg. | 668.00 lb. |
Weight Gypsy Only | 36.00 kg. | 79.00 lb. |
