Lewmar  |  SKU: LEW66910087143  |  Manuf. Code: 66910087-143

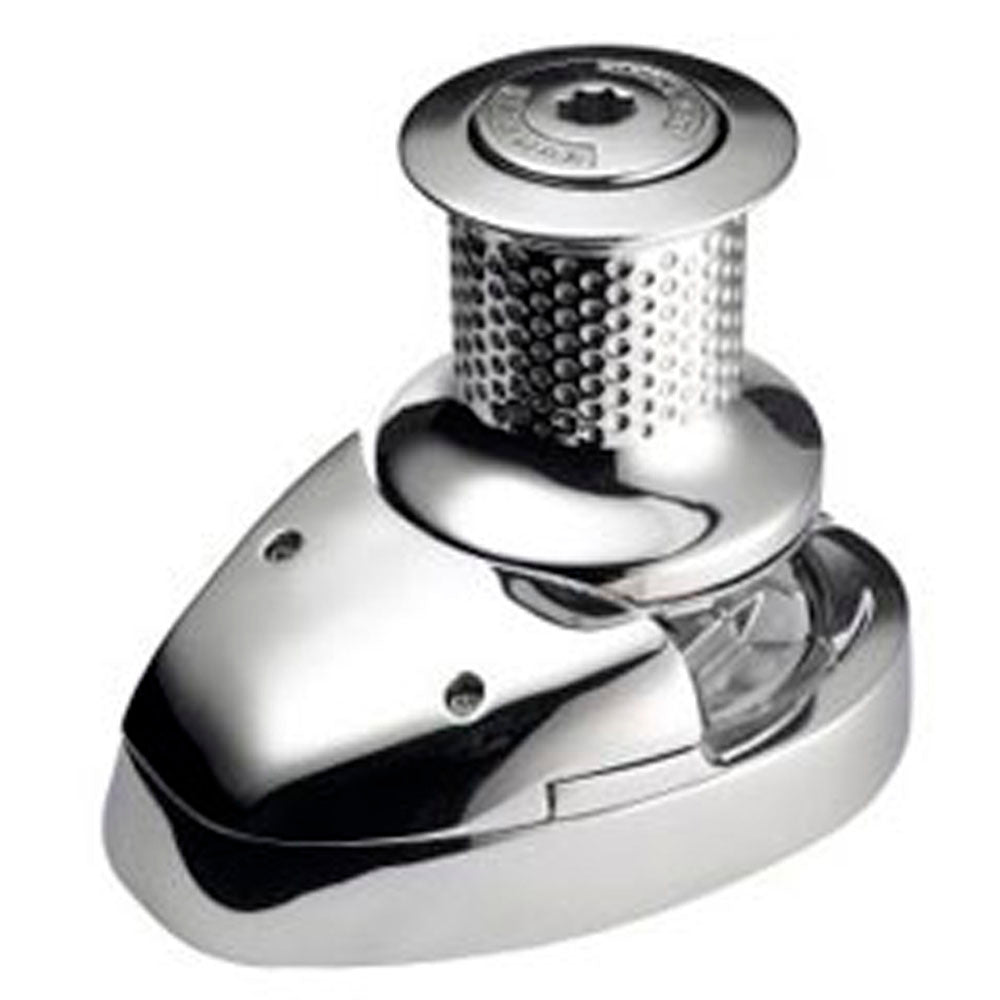

Lewmar Windlass - V4 1600W Vertical Electric 12V Gypsy + Drum 10mm - DIN 766

$4,420.00 USD $6,800.00

Description

Lewmar introduces the worlds first compact stainless steel windlass for power and sail boats. The beautiful styled deck unit conceals a robust, reliable drive train, worm gearbox and splined shaft for maximum strength and control. Rope-chain or all-chain anchor rodes may be employed at the touch of a button, whilst the fully machined, low profile gypsy will keep your ropes in beautiful condition for years to come.

Our Part # LEW66910087143 | Lewmar Part # 66910087-143

Features

Features:

  • Rocker switch.
  • Circuit breaker.
  • Contactor and handle.
  • Rope-chain gypsy.
  • Manual override & chain release.
  • Stylish Stainless Steel deck unit.
  • Cone clutch for smooth, easy control.
  • Drive Train- robust & reliable.
  • Splined shaft.
  • CE approved.

Knowledge Base

Click on the following technical articles to find relevant information about Windlasses:

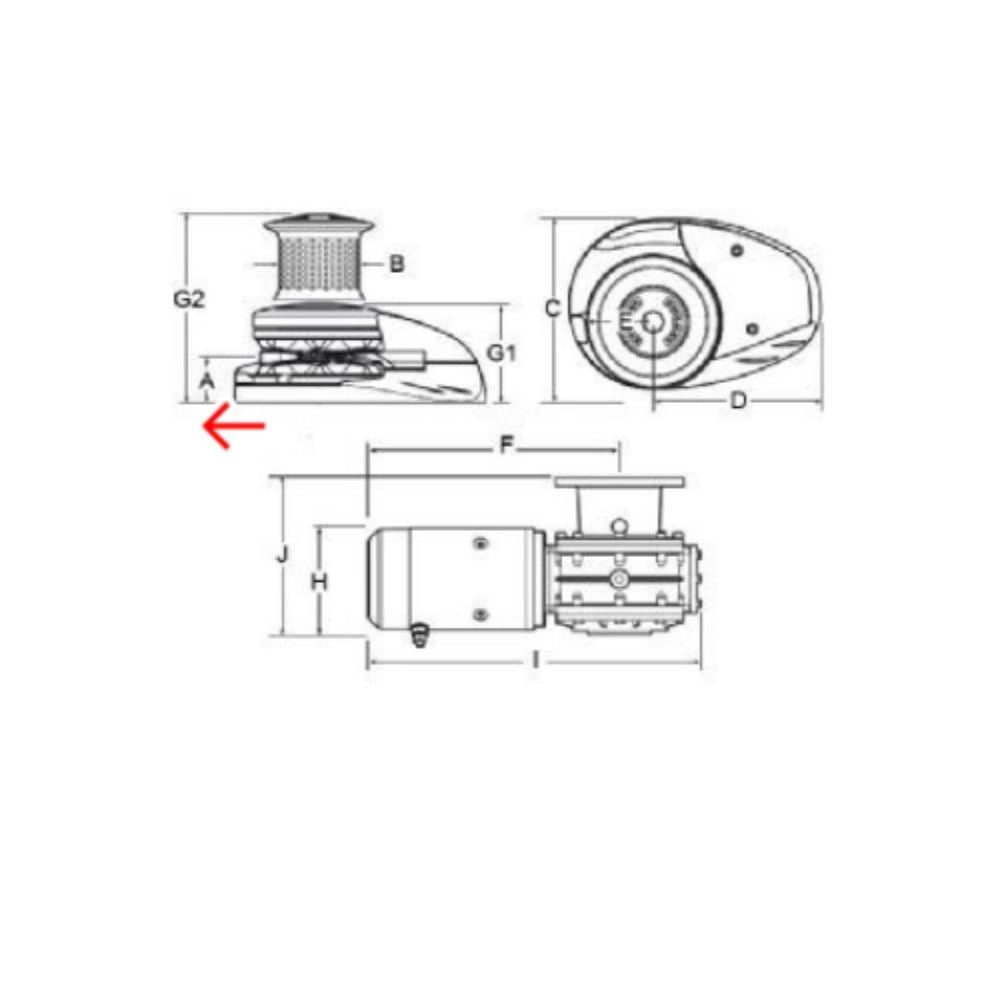

Sizing


DescriptionMetricImperial
Gypsy Number202202
Chain Description10.00 mm. Din. 766, 9.50 mm. G305/16 in. Campbell S3, 3/8 in. Campbell S4
Rope Description16.00 mm. 3-Strand Hard Lay Up5/8 in. 3-Strand Hard Lay Up
B75.00 mm.3.00 in.
C189.00 mm.7 7/16 in.
D184.00 mm.7 1/4 in.
F276.00 mm.10 7/8 in.
G1108.00 mm.4 1/4 in.
G2214.00 mm.8 7/16 in.
H174.00 mm.7 5/16 in.
J185.00 mm.7 5/16 in.

Technical Information


DescriptionMetricImperial
Voltage12 V.12 V.
Motor Power Watts1600.00 W.1600.00 W.
Normal Current Draw125 A.125 A.
Max Pull1250.00 kg.2750.00 lb.
Maximum Line Speed25.00 m./min.82.00 ft./min.
Working Load313.00 kg.668.00 lb.
Weight Gypsy Only36.00 kg.79.00 lb.
