Lewmar Windlass - V4 2000W Vertical Electric 24V Gypsy Only 10mm - DIN 766
Lewmar Windlass - V4 2000W Vertical Electric 24V Gypsy Only 10mm - DIN 766 is backordered and will ship as soon as it is back in stock.
Description
Description

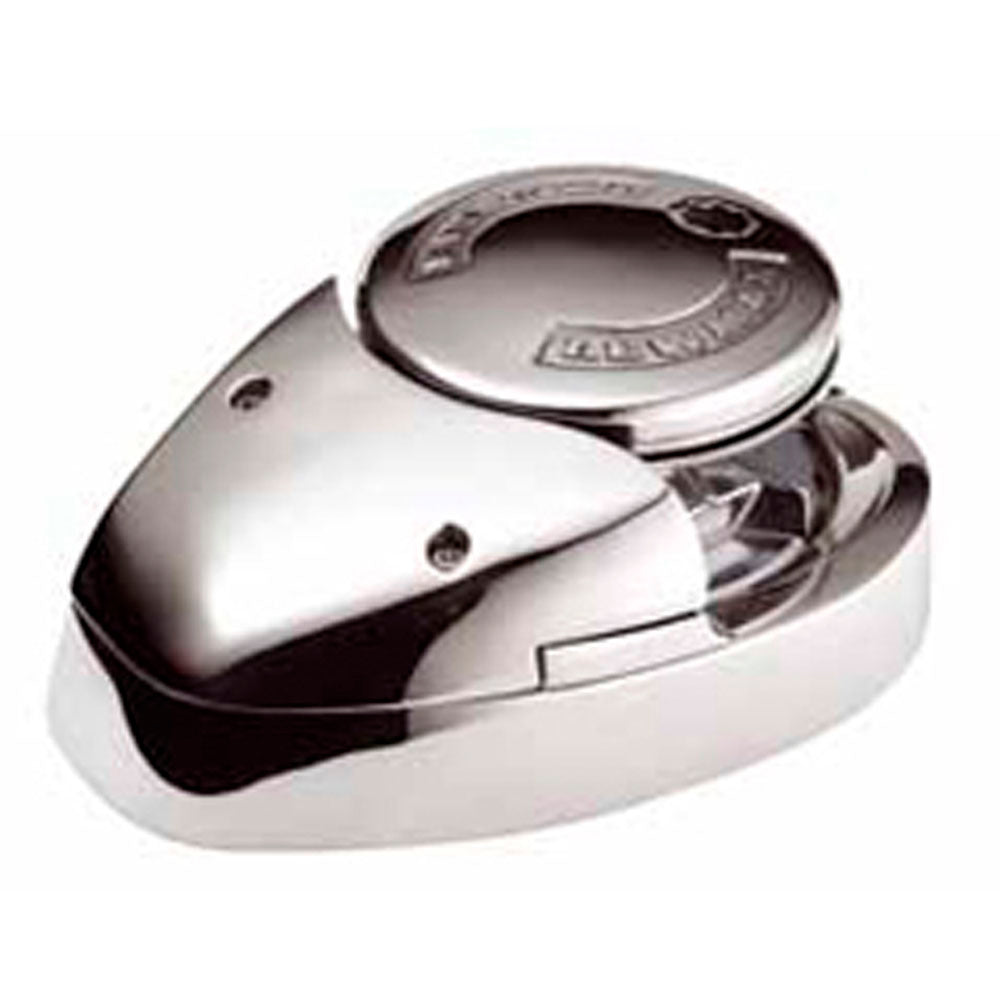

The Lewmar Windlass - V4 2000W Vertical Electric 24V Gypsy Only 10mm - DIN 766 #66910083-144 is a sleek and sturdy solution for handling anchor duties on your boat. With its compact stainless steel design, it's perfect for both power and sail boats, offering smooth and reliable performance. It’s all about making your time on the water a breeze with this efficient and robust equipment.
Features & Benefits
- Compact, stainless steel construction for durability and style
- Robust drive train with a worm gearbox for enhanced control
- Supports both rope-chain and all-chain anchor rodes
- Low profile gypsy designed to protect and maintain your ropes
Crafted from high-quality stainless steel, this lewmar windlass is both beautiful and durable. It is specifically designed for boats that require a 24V electrical system, featuring a powerful 2000W motor. Compatible with 10mm DIN 766 chains, this windlass ensures secure and efficient anchoring. The internal components include a worm gearbox and splined shaft, enhancing strength and control under load, while the low profile design minimizes deck obstruction.
Features
Features
Features:
- Rocker switch.
- Circuit breaker.
- Contactor and handle.
- Rope-chain gypsy.
- Manual override & chain release.
- Stylish Stainless Steel deck unit.
- Cone clutch for smooth, easy control.
- Drive Train- robust & reliable.
- Splined shaft.
- CE approved.
Knowledge Base
Knowledge Base
Click on the following technical articles to find relevant information about Windlasses:

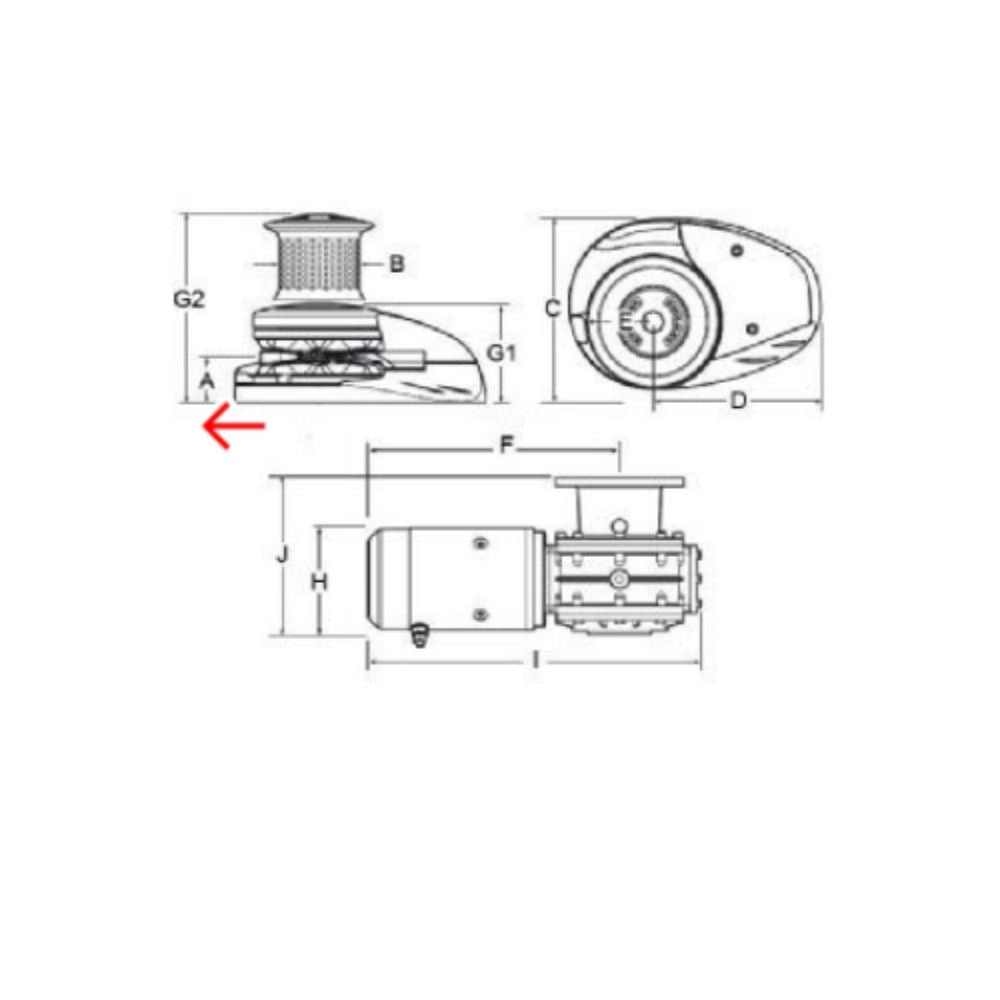

Sizing
Sizing
Description | Metric | Imperial |
---|---|---|
Gypsy Number | 202 | 202 |
Chain Description | 10.00 mm. Din. 766, 9.50 mm. G30 | 5/16 in. Campbell S3, 3/8 in. Campbell S4 |
Rope Description | 16.00 mm. 3-Strand Hard Lay Up | 5/8 in. 3-Strand Hard Lay Up |
B | 75.00 mm. | 3.00 in. |
C | 189.00 mm. | 7 7/16 in. |
D | 184.00 mm. | 7 1/4 in. |
F | 276.00 mm. | 10 7/8 in. |
G1 | 108.00 mm. | 4 1/4 in. |
G2 | 214.00 mm. | 8 7/16 in. |
H | 186.00 mm. | 7 5/16 in. |
J | 185.00 mm. | 7 5/16 in. |
Technical Information
Technical Information
Description | Metric | Imperial |
---|---|---|
Voltage | 24 V. | 24 V. |
Motor Power Watts | 2000.00 W. | 2000.00 W. |
Normal Current Draw | 70 A. | 70 A. |
Max Pull | 1500.00 kg. | 3300.00 lb. |
Maximum Line Speed | 27.00 m./min. | 90.00 ft./min. |
Working Load | 375.00 kg. | 825.00 lb. |
Weight Gypsy Only | 29.00 kg. | 64.00 lb. |
